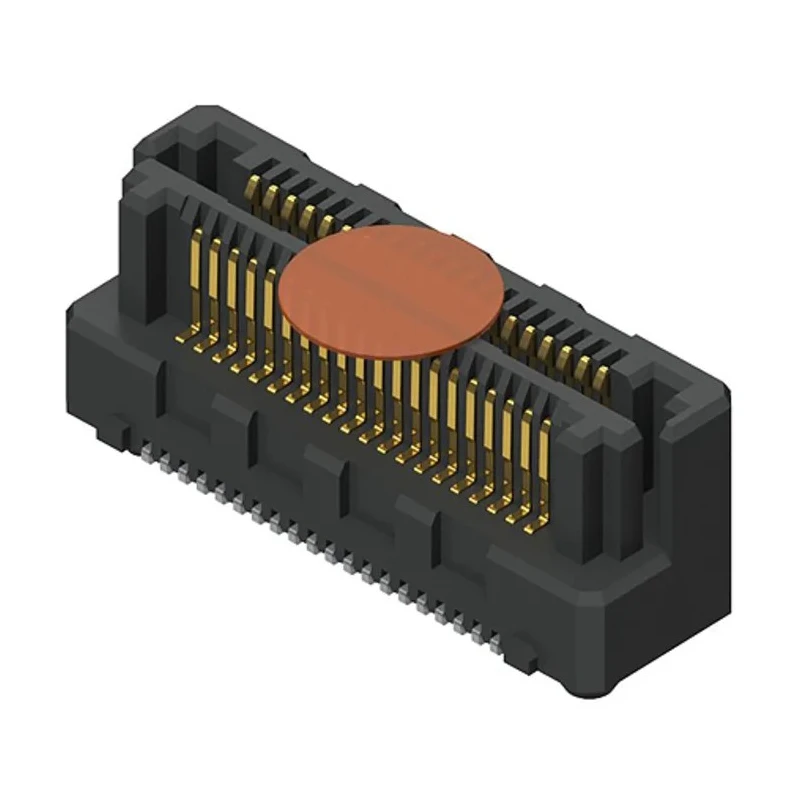

Samtec LSHM Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-150-04.0-L-DV-A-N-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSHM Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-150-04.0-L-DV-A-N-K-TR

Name: Samtec LSHM Series Straight Surface PCB Header, 100 Contacts, 0.5 mm Pitch, 2 Row, Shrouded LSHM-150-04.0-L-DV-A-N-K-TR
Brand: Samtec
SKU: 141517
Price: 10.68 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	160, 226V ac
Brand	Samtec
Orientation	Straight
Current	2A
Model	LSHM-150-04.0-L-DV-A-N-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSHM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with a shrouded, straight orientation for reliable mating and protection.
Housing made from Liquid Crystal Polymer ensuring durability and performance.
Contacts are gold-plated phosphor bronze to provide excellent conductivity and corrosion resistance.
Supports currents up to 2A and voltages of 160 and 226V AC.
Operates reliably within a temperature range from -55°C to 125°C.
Surface mount technology (SMT) allows for easy PCB integration.
Hermaphroditic design reduces inventory costs by enabling self-mating connectors.
Features razor beam contacts that provide high retention force and an audible click upon secure connection.

Product Description

Samtec LSHM-150-04.0-L-DV-A-N-K-TR series straight surface PCB header is a high-speed, 0.5 mm pitch, 2-row, shrouded board-to-board connector that supports up to 23 Gbit/s data transfer rates. It is constructed with liquid crystal polymer housing and gold-plated phosphor bronze contacts to ensure reliable electrical connections and durability in demanding industrial and electronics manufacturing environments.

This hermaphroditic SMT connector features razor beam contacts with undercut retention notches, providing a high mating and unmating force along with an audible click to confirm a secure connection. The surface mount design allows for efficient PCB assembly. The vertical mounting versions can be combined to achieve stack heights between 5 mm and 12 mm, providing design flexibility for compact applications.

Operating within a temperature range of -55°C to 125°C, it handles 2A current and voltages of 160 and 226V AC, suitable for industrial electronics, telecommunications, computing, and other high-speed data transmission applications.

This series is designed for high-density parallel, perpendicular, and coplanar systems, reducing inventory costs with its hermaphroditic design. It also mates with HLCD series high-speed cable assemblies, expanding its application range.

Constructed with high-quality liquid crystal polymer housing for durability. Gold-plated phosphor bronze contacts for excellent electrical performance. High mating/unmating force with audible click for secure connections.

Supports high data speeds up to 23 Gbit/s. Hermaphroditic design minimizes the need for multiple connector types. Operates effectively over a wide temperature range from -55°C to 125°C. Surface mount technology for easy PCB integration.

Stack heights from 5 mm to 12 mm available for vertical mounting configurations. Suitable for industrial, telecommunications, computing, and electronic manufacturing applications. Compatible with HLCD high-speed cable assemblies.

Explore the full range of PCB Headers and connectors to find the ideal solution for your electronic system design needs at EnvMart.
