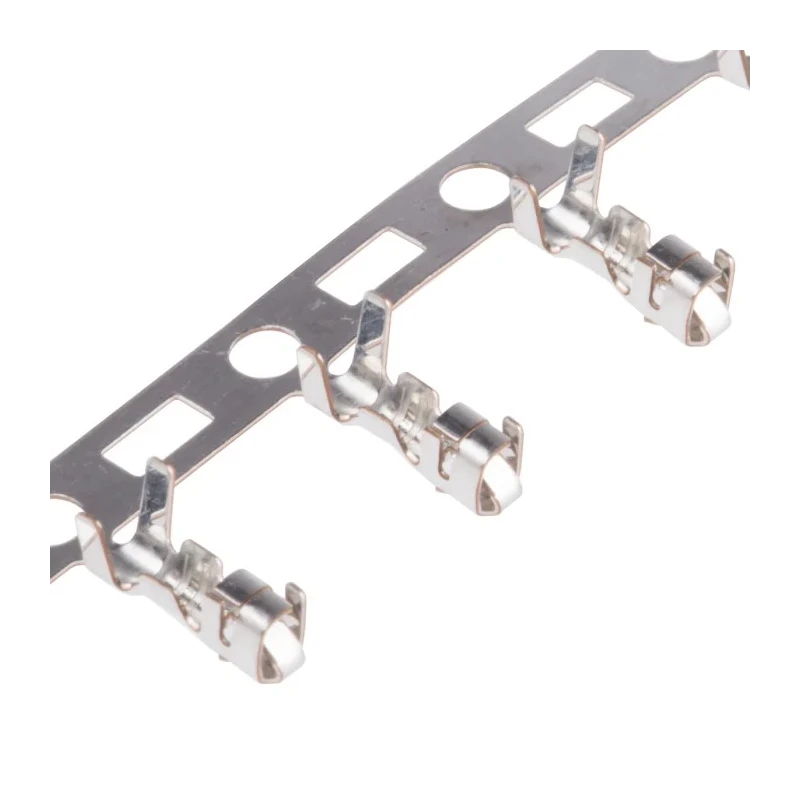

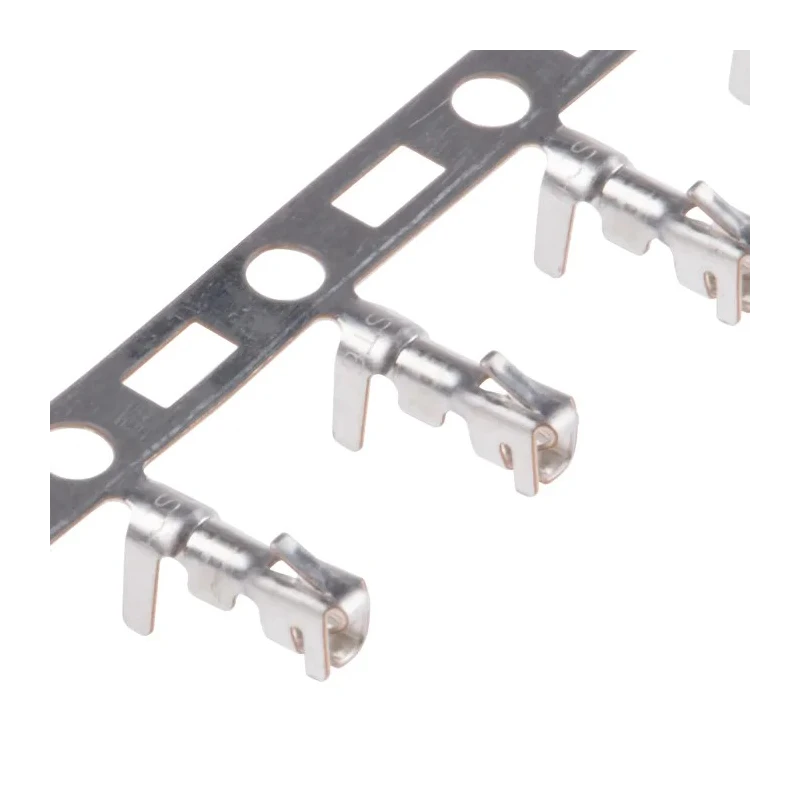

JST XH Series Female Crimp Terminal, 3A Current, 28 AWG Min, 22 AWG Max, Phosphor Bronze Tin Plated SXH-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Female Crimp Terminal, 3A Current, 28 AWG Min, 22 AWG Max, Phosphor Bronze Tin Plated SXH-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SXH-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	XH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	XH Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating to ensure reliable contact performance.
Supports wire sizes from 28 AWG minimum to 22 AWG maximum for versatile connectivity.
Rated for a maximum contact resistance of 20 milliohms for efficient current flow.
Designed to operate within a temperature range of -25°C to 85°C suitable for diverse environments.
Termination type is crimp for secure and efficient wire connections.
Specifically engineered for use with JST XH Series crimp connector housings.
High-quality contact ensures durability and long service life in industrial and electronic applications.
Ideal for PCB connectors, electronic components, and power connection assemblies.

Product Description

JST SXH-001T-P0.6 Female Crimp Terminal is engineered for high reliability in electronic and electrical applications involving XH connector housings. This crimp terminal is constructed from durable phosphor bronze material plated with tin to enhance conductivity and resistance to corrosion.

It supports wire sizes ranging from 28 AWG (0.08 mm²) minimum to 22 AWG (0.33 mm²) maximum, enabling compatibility with a variety of cable thicknesses within precision connectors. The crimp termination type ensures a robust mechanical and electrical connection essential for stable operation in PCB assemblies and power connectors.

Rated for 3 amps of current and capable of withstanding temperatures between -25°C and 85°C, this terminal performs reliably across various industrial and commercial environments, including manufacturing, telecommunications, and electronics prototyping.

The maximum contact resistance is limited to 20 milliohms, guaranteeing minimal power loss and effective electrical performance. This product is made in China and conforms to industry standards though no formal certifications are specified.

This terminal is part of the JST XH series Crimp Contacts designed to integrate with JST XH series connector housings, widely used in PCB assemblies and wire harnesses requiring precise, dependable connections.

Constructed from phosphor bronze with tin plating. Wire size compatibility: 28 AWG to 22 AWG. Current rating: 3A suitable for low to moderate power applications. Operating temperature range from -25°C to 85°C. Termination type: crimp.

Maximum contact resistance: 20 milliohms. Designed for JST XH series connector housings. Manufactured in China. Explore the extensive range of JST components and connectors available at EnvMart to support your electronic manufacturing and prototyping needs.
