Power Integrations AC/DC Converter 7 A 5V DC 6-Pin eSIP-7C TOP266EG

Free Delivery in India | Lowest Global Shipping Charges

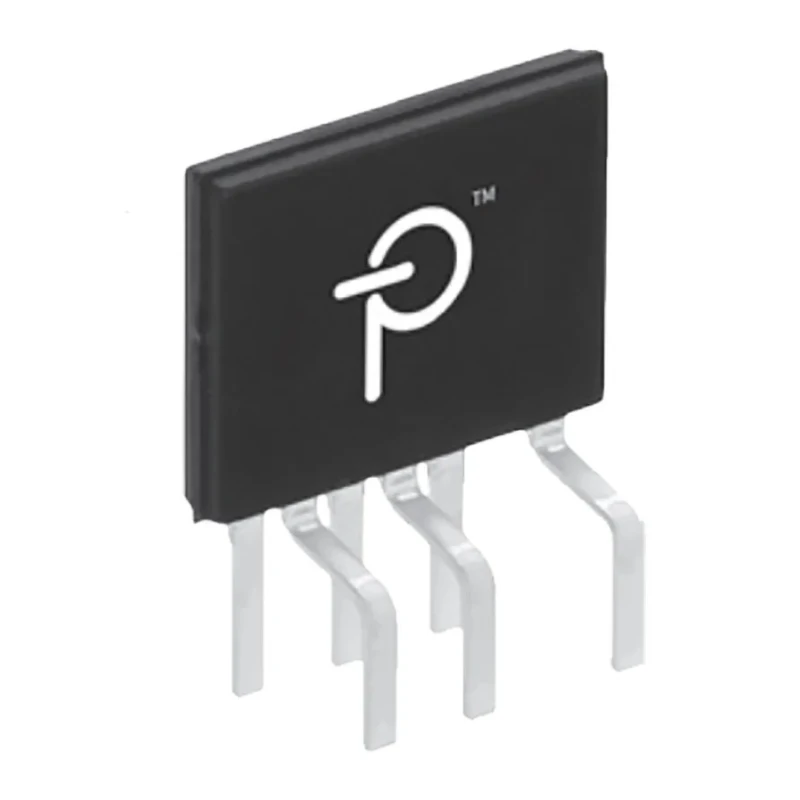

Power Integrations AC/DC Converter 7 A 5V DC 6-Pin eSIP-7C TOP266EG

Name: Power Integrations AC/DC Converter 7 A 5V DC 6-Pin eSIP-7C TOP266EG
Brand: Power Integrations
SKU: 141369
Price: 2.04 USD
Availability: InStock



Category AC/DC Converter Brand Power Integrations Condition New

Specifications

Country of Origin	India
Brand	Power Integrations
Height	8.25mm
Length	10.24mm
Model	TOP266EG
Width	2.06mm
Output Power	43W
Mount Type	Through Hole
Maximum Duty Cycle	83%
Series	TOPSwitch-JX
Topology	Flyback
Maximum Operating Temperature	150°C
Package Type	eSIP-7C
Minimum Operating Temperature	-40°C
Switching Frequency	132kHz
Maximum Input Voltage	265V ac
Maximum Output Current	7A
Maximum Output Voltage	5V dc
Minimum Input Voltage	85V ac
Pin Count	6
Supply Current	1mA

Key Features

The device supports a maximum input voltage of 265V AC and a minimum input voltage of 85V AC.
It delivers a nominal output power of 43W suitable for compact power supply designs.
The switching frequency is 132 kHz, with a maximum duty cycle of 83%, enhancing efficiency.
Designed with a flyback topology and through-hole mount type for easy PCB integration.
Supports wide operating temperatures from -40°C up to 150°C, ensuring reliability in harsh environments.
Compact dimensions measure 10.24 mm in length, 8.25 mm in height, and 2.06 mm in width.
Includes integrated high-voltage MOSFET, multi-mode PWM controller, and protection circuitry in a monolithic package.
The TOPSwitch-JX series optimizes energy efficiency across the load range reducing no-load power consumption.

Product Description

Power Integrations TOP266EG is a high-efficiency AC/DC converter designed for reliable offline power conversion within electronic and industrial applications. This 6-pin eSIP-7C package device integrates a high-voltage power MOSFET, switched current source, PWM controller, oscillator, and comprehensive protection and control circuitry within a compact monolithic design.

Supporting a maximum input voltage of 265V AC and output voltage of 5V DC at up to 7 A output current, it delivers 43W power suitable for compact power supply designs. The switching frequency of 132 kHz and maximum duty cycle of 83% enable efficient energy conversion with reduced losses.

The through-hole mount type and flyback topology support cost-effective converter designs with reliable operation over a wide temperature range from -40°C to 150°C. Its compact physical dimensions of 10.24 mm length, 8.25 mm height, and 2.06 mm width facilitate integration into space-constrained applications.

The TOPSwitch-JX series addresses energy efficiency throughout the load range, significantly minimizing no-load power use. It is designed for applications in industrial power management, semiconductor power ICs, and other electronic components requiring compact, efficient AC/DC power conversion.

Maximum input voltage: 265V AC. Maximum output voltage: 5V DC. Output power: 43W. Switching frequency: 132 kHz. Maximum output current: 7A. Operating temperature: -40°C to 150°C. Package: 6-Pin eSIP-7C. Mounting type: Through Hole.

This product is ideal for designing cost-effective, compact offline AC/DC converters with integrated protection and efficient power switching. Explore more power management components and AC/DC Converters in the Electronics & Electricals category at EnvMart.
