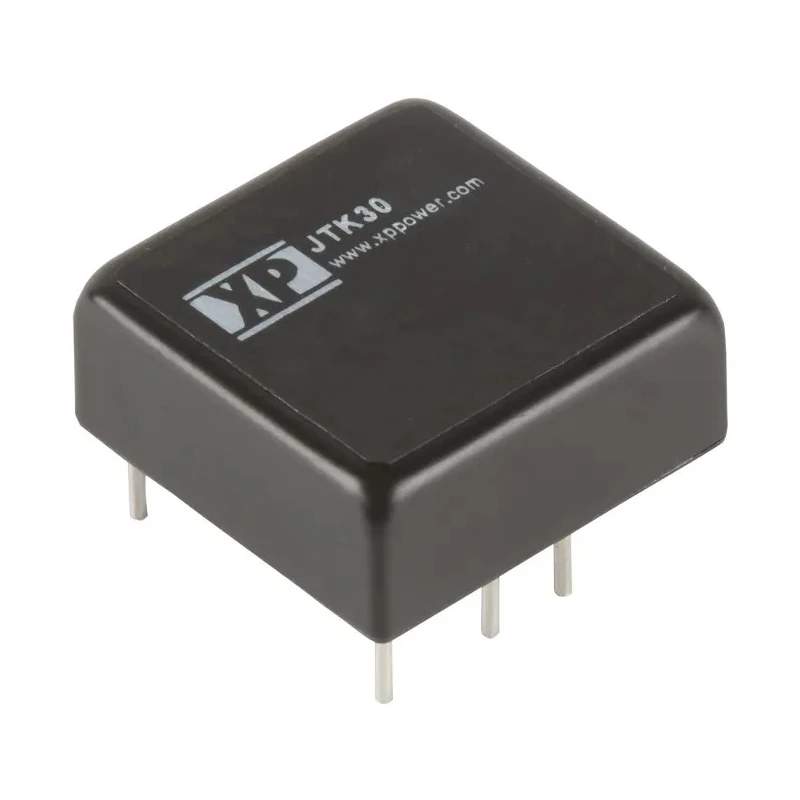

XP Power Isolated DC/DC Converter 3.3V DC Output 600mA 36V/18V Input 3W Through Hole JTK30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 85% |
| Length | 25.4mm |
| Model | JTK30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JTK30 |
| Maximum Operating Temperature | +100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides reliable isolated DC/DC conversion with 1.6kV DC isolation voltage.
- Compact SIP package measuring 25.4 mm length, 25.4 mm width, and 10.4 mm depth.
- Wide operating temperature range from -40°C to +100°C allows industrial applications.
- High mean time between failures (MTBF) rating of 1,100,000 hours ensures durability.
- Achieves an efficiency of 85% for energy-efficient operation.
- Features single output with ±10% voltage adjustment range.
- Suitable for industrial, telecommunications, and embedded systems power solutions.
Product Description
XP Power JTK30 series isolated DC/DC converters provide a reliable power solution with a 3.3V DC output voltage delivering 600mA current and a maximum output power of 3 watts. Designed to operate from a DC input voltage range of 18V minimum to 36V maximum, these converters are ideal for use in demanding industrial and telecom power applications.
The converter features a compact 1-inch by 1-inch SIP package with dimensions of 25.4 mm length, 25.4 mm width, and 10.4 mm depth. The through-hole mounting type and 7-pin configuration facilitate easy PCB integration. The device is rated for an isolation voltage of 1600 V DC, providing electrical separation between input and output to safeguard sensitive electronics.
Operating efficiently at 85% with an MTBF (mean time between failures) of 1,100,000 hours, the device supports a wide operating temperature range from -40°C to +100°C, making it suitable for harsh environments. It also supports remote on/off control and a ±10% output voltage adjustment range, enabling customization for various system needs.
It is optimized for applications requiring compact size, reliable isolation, and stable power supply, such as in industrial control, embedded systems, and telecommunications equipment.
Reliable 3.3V output at 600mA with 3W maximum power. Wide DC input voltage range from 18V to 36V. High isolation at 1600V DC for safety and noise reduction. Compact SIP package with through-hole mounting and 7 pins. Wide temperature operation from -40°C to +100°C for industrial durability.
Efficiency up to 85% minimizes energy loss. Remote on/off control and output voltage adjustment enhance flexibility. Explore more XP Power DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a 3.3V DC output voltage with a maximum output current of 600mA.
It operates within a DC input voltage range of 18V to 36V.
The maximum output power is 3 watts.
The dimensions are 25.4 mm in length, 25.4 mm in width, and 10.4 mm in depth.
The isolation voltage rating is 1.6kV DC, providing electrical separation between input and output.
It achieves an efficiency of 85%, minimizing energy loss during operation.
The operating temperature range is from -40°C to +100°C.
This model has a single output.
It features a through-hole mounting type, suitable for easy PCB integration.
The MTBF rating is 1,100,000 hours, indicating a long operational lifespan.
Yes, it supports remote on/off control for enhanced flexibility in applications.
It is suitable for industrial control, telecommunications, and embedded systems power solutions.
