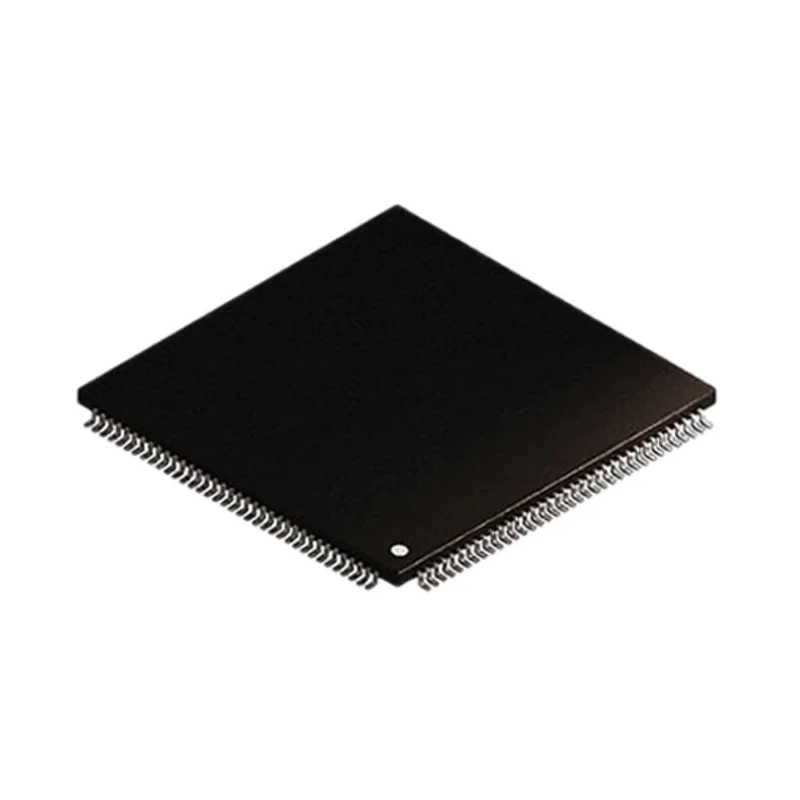

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex-M4 Microcontroller 100MHz 1.024MB FLASH 144-Pin LQFP STM32F412ZGT6

STMicroelectronics STM32F412ZGT6 is a high-performance 32-bit microcontroller from the STM32F4 series featuring an ARM Cortex-M4 core with Floating Point Unit (FPU) running at up to 100 MHz. It is designed for applications requiring efficient computation, low power consumption, and rich peripheral integration.

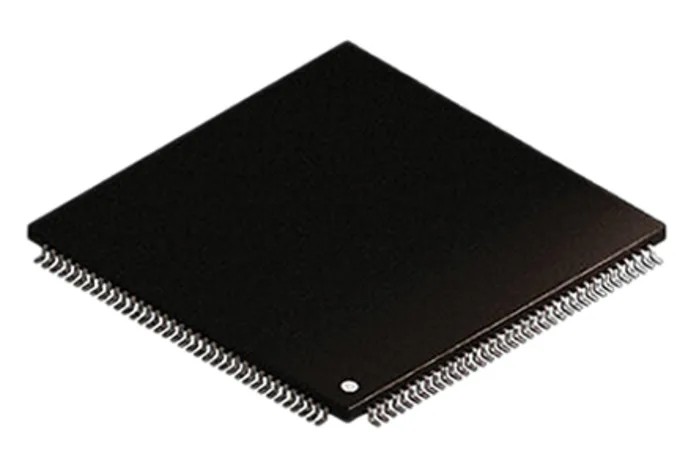

This microcontroller comes in a compact 144-Pin LQFP package suitable for surface mounting onto PCBs. It offers 1.024MB of embedded FLASH memory and 256kB of SRAM, facilitating complex program storage and fast execution. The device supports a wide operating voltage range (1.7V to 3.6V) and can operate reliably across industrial temperature ranges from -40°C to 85°C.

The STM32F412ZGT6 includes 16 channels of 12-bit analog-to-digital converters (ADC) which enable precise analog signal readouts. Its extensive timer resources include twelve 16-bit timers optimized for general purpose use, and specialized PWM timers dedicated to motor control applications. Communication interfaces such as USB 2.0 OTG FS and other standard protocols provide versatile connectivity options for embedded systems.

Advanced features like the Adaptive Real Time (ART) accelerator allow zero-wait state execution from flash memory, improving processing speed and responsiveness. The Batch Acquisition Mode (BAM) further enhances power efficiency during data collection tasks. The microcontroller's memory protection unit and dual-mode Quad-SPI interface add robustness and flexibility to memory operations.

This product is manufactured under the ECOPACK 2 standard, ensuring environmentally friendly packaging. It is ideal for use in industrial automation, consumer electronics, motor control systems, and other embedded applications requiring a balance between performance and power efficiency.

Based on ARM Cortex-M4 32-bit core with Floating Point Unit (FPU). Operates at a maximum clock frequency of 100 MHz for efficient processing. Features 1.024MB of FLASH program memory and 256kB RAM memory. Equipped with 144-Pin LQFP package supporting surface mount technology.

Includes 16 ADC channels with 12-bit resolution for accurate analog input conversion. Supports 17 timers including 12-bit general-purpose and motor control PWM timers. Operating voltage range from 1.7V minimum to 3.6V maximum.

Wide operating temperature range from -40°C to 85°C for robust applications. Low power consumption with adaptive real-time accelerator (ART) and batch acquisition mode (BAM). Complies with FBI standards and ECOPACK 2 environmental packaging.
