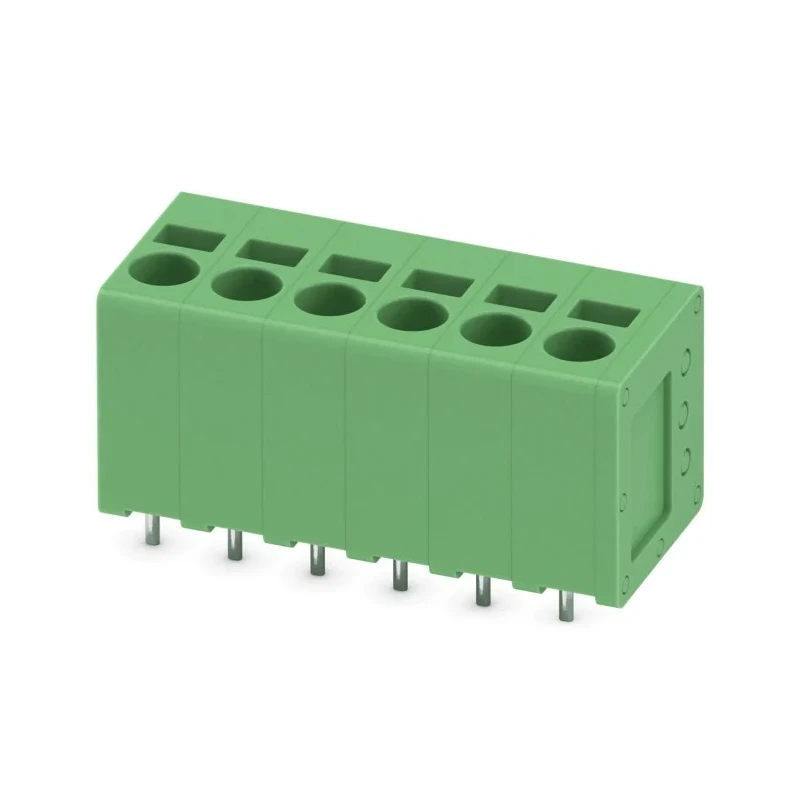

Phoenix Contact SPT 2.5/6-V-5.0 Series PCB Terminal Block, 6-Contact, 5 mm Pitch, 1 Row, 24A Current, Polyamide 1991134
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 31.4mm |
| Model | 1991134 |
| Depth | 13.5mm |
| Width | 14.4mm |
| Housing Material | Polyamide |
| Series | SPT 2.5/6-V-5.0 |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 6 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Spring Cage |
Key Features
- The terminal block supports a maximum current of 24A, suitable for moderate power applications.
- Constructed with a durable polyamide housing ensuring robustness and electrical insulation.
- Features a female connector and spring cage wire connection method for secure conductor retention.
- Supports wire sizes ranging from 0.2 mm² to 4 mm² and AWG 24 to AWG 12.
- Has a voltage rating of 400V and a straight orientation for easy PCB mounting.
- Compact dimensions include a length of 31.4 mm, width of 14.4 mm, and depth of 13.5 mm.
- Designed for one-row configuration with a 5.0 mm pitch spacing between contacts.
Product Description
Phoenix Contact 1991134 PCB Terminal Block is a high-quality electronic connector designed for printed circuit board applications. It features 6 contacts arranged in a single row with a 5 mm pitch, ensuring precise and stable electrical connections.
The terminal block has a current rating of 24A and can handle voltages up to 400V, making it suitable for a range of industrial and electronic power applications. It utilizes a screwless push-in spring cage connection method, allowing for secure and tool-free wire retention, with the option to open the terminal using a screwdriver for non-ferruled wires.
The housing material is polyamide, providing robust mechanical strength and excellent electrical insulation. It supports wire sizes from 0.2 mm² to 4 mm², and wire gauges from AWG 24 to AWG 12. Its design features a straight orientation for vertical PCB mounting, with compact dimensions of 31.4 mm length, 14.4 mm width, and 13.5 mm depth to optimize PCB space usage.
This terminal block is ideal for industrial, electronic, automation, and manufacturing environments requiring reliable, compact, and easy-to-install PCB connectivity solutions. It is manufactured in Germany and part of the SPT 2.5/6-V-5.0 series from Phoenix Contact.
The terminal block supports a maximum current of 24A, suitable for moderate power applications. Constructed with a durable polyamide housing ensuring robustness and electrical insulation. Features a female connector and spring cage wire connection method for secure conductor retention.
Supports wire sizes ranging from 0.2 mm² to 4 mm² and AWG 24 to AWG 12. Has a voltage rating of 400V and a straight orientation for easy PCB mounting. Compact dimensions include a length of 31.4 mm, width of 14.4 mm, and depth of 13.5 mm.
Designed for one-row configuration with a 5.0 mm pitch spacing between contacts. Explore more high-quality PCB Terminal Blocks and connectors at EnvMart for reliable and efficient electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a maximum current of 24A, making it suitable for moderate power applications.
It has a voltage rating of 400V, which allows it to be used in various industrial and electronic power applications.
This unit supports wire sizes ranging from 0.2 mm² to 4 mm² and wire gauges from AWG 24 to AWG 12.
It utilizes a spring cage connection method, allowing for secure and tool-free wire retention.
The compact dimensions are 31.4 mm in length, 14.4 mm in width, and 13.5 mm in depth.
This model features a straight orientation, which is designed for vertical PCB mounting.
It is designed with 6 contacts arranged in a single row with a 5 mm pitch.
The housing is constructed from polyamide, providing robust mechanical strength and electrical insulation.
This terminal block is manufactured in Germany.
It is part of the SPT 2.5/6-V-5.0 series from Phoenix Contact.
It features a female connector, which is standard for many PCB applications.
This model is suitable for industrial, electronic, automation, and manufacturing environments requiring reliable PCB connectivity solutions.
