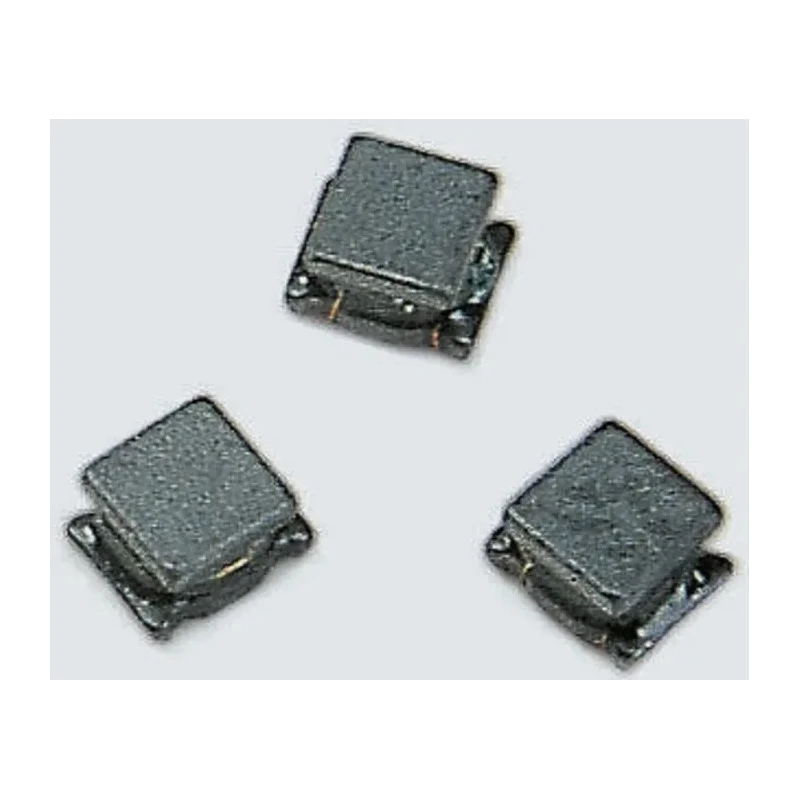

Murata Wirewound Shielded Surface Mount Inductor 68μH ±5% 80mA 1210 Package Ferrite Core LQH32MN680J23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN680J23L |
| Depth | 2.5mm |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 80mA |
| Maximum DC Resistance | 5.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 9MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1210 package case measuring 3.2mm length, 2.5mm depth, and 2mm height.
- Constructed with a high-quality ferrite core for consistent performance.
- Features a low DC resistance of 5.5Ω ensuring minimal power loss.
- Wide operating temperature range from -40°C to 85°C for reliable use.
- Shielded design reduces electromagnetic interference in sensitive circuits.
- Inductance tolerance of ±5% guarantees precision in electronic applications.
- Minimum quality factor of 40 and maximum self-resonant frequency at 9MHz.
- Surface mount termination style suitable for automated PCB assembly.
Product Description
Murata brand presents the LQH32MN680J23L wirewound shielded surface mount inductor featuring a ferrite core engineered for electronic circuit applications requiring 68μH inductance with a tolerance of ±5%. This surface mount inductor is designed for high performance with a maximum DC current rating of 80mA and a low DC resistance of 5.5Ω, optimizing power efficiency.
Housed in a compact 1210 package, it measures 3.2mm in length, 2.5mm in depth, and 2mm in height, making it ideal for space-constrained applications. The shielded construction minimizes electromagnetic interference, critical in video, communications, audio equipment, and mobile telephone circuits.
It operates reliably across a broad temperature range from -40°C to 85°C and meets RoHS compliance standards, ensuring environmental safety. The coil is moulded to enhance durability and protector against external mechanical stress.
The inductor’s minimum quality factor is 40, supporting efficient energy storage and transfer, with a maximum self-resonant frequency of 9MHz underlining its high-frequency capabilities. Termination style is surface mount, compatible with modern PCB manufacturing techniques.
Compact 1210 package size for dense PCB layouts. Ferrite core for stable inductance and minimal losses. Shielded wirewound construction for reduced EMI. Wide operating temperature of -40°C to 85°C. Low maximum DC resistance of 5.5Ω for efficiency.
±5% inductance tolerance for precision applications. RoHS compliant for environmental safety. Designed for video, communication, and audio equipment uses. High quality factor and resonant frequency support reliable performance.
This Murata LQH series inductor is suitable for industrial, commercial, and electronic manufacturing environments requiring reliable, high-quality passive components. Explore related Surface Mount Inductors and Murata products on EnvMart for your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 68μH with an inductance tolerance of ±5%.
It has a maximum DC current rating of 80mA, which helps optimize power efficiency in applications.
The dimensions of the 1210 package are 3.2mm in length, 2.5mm in depth, and 2mm in height.
The minimum quality factor for this model is 40, supporting efficient energy storage and transfer.
The maximum self-resonant frequency is 9MHz, indicating its capability for high-frequency applications.
It operates reliably across a wide temperature range from -40°C to 85°C.
The inductor is constructed with a ferrite core, which helps ensure stable inductance and minimal losses.
This unit features a low DC resistance of 5.5Ω, which minimizes power loss during operation.
Yes, this model meets RoHS compliance standards, ensuring environmental safety.
It features a surface mount termination style, making it suitable for automated PCB assembly.
This inductor is designed for use in video, communications, audio equipment, and mobile telephone circuits.
This model belongs to the LQH series of inductors from Murata.
