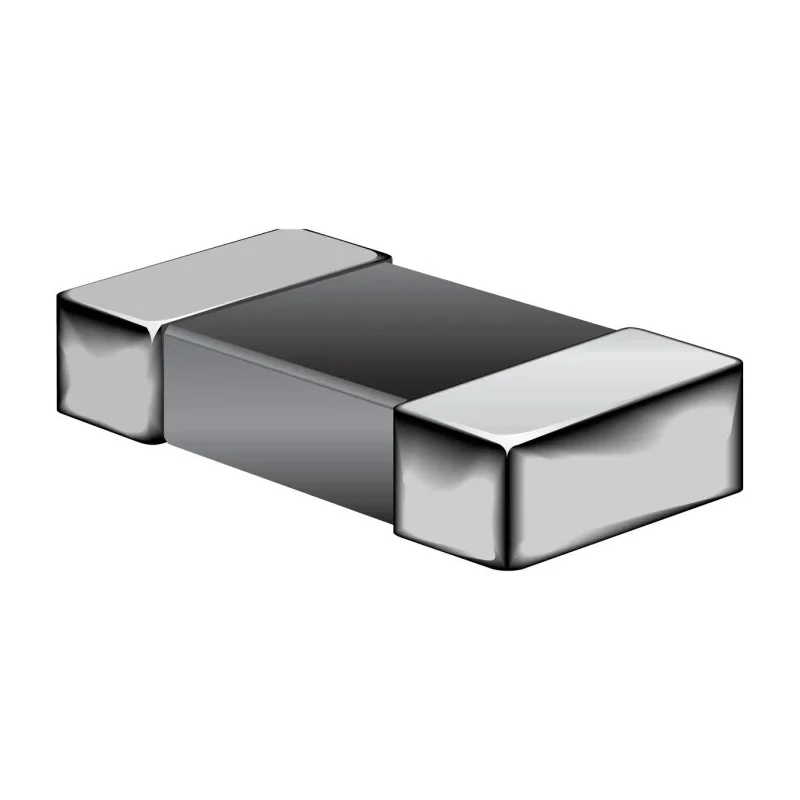

Bourns 252009 Shielded Multilayer Surface Mount Inductor 2.2 μH ±10% 1.3A Ferrite Core CVH252009
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Height | 0.9mm |
| Length | 2.5mm |
| Model | CVH252009 |
| Depth | 2mm |
| Packaging | Reel |
| Series | CVH252009 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 252009 |
| Maximum DC Current | 1.3A |
| Pin Count | 2 |
| Maximum DC Resistance | 80mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Multilayer |
Key Features
- Constructed with a ferrite core for improved magnetic performance.
- Features a shielded multilayer design to minimize electromagnetic interference.
- Maximum DC resistance of 80 milliohms for efficient current handling.
- Compact 252009 package with dimensions 2.5mm length, 0.9mm height, and 2mm depth.
- Rated for operation between -55°C and 125°C temperatures.
- RoHS compliant ensuring eco-friendly manufacturing standards.
- Solder termination style for reliable surface mount assembly.
- Maximum self-resonant frequency of 40 MHz.
Product Description
Bourns CVH252009 shielded multilayer surface mount inductor offers 2.2 μH inductance with a ±10% tolerance and supports a maximum DC current of 1.3 A. This inductor utilizes a ferrite core to enhance magnetic performance while maintaining a compact 252009 package size of 2.5 mm length, 0.9 mm height, and 2 mm depth.
The multilayer construction and magnetic shielding design reduce electromagnetic interference, making it highly suitable for sensitive electronic applications. It features a low DC resistance of 80 milliohms, promoting energy efficiency in power handling.
This product is rated to operate over a wide temperature range from -55°C to 125°C and complies with RoHS environmental standards. The solder termination style ensures reliable mounting on printed circuit boards. It also exhibits a maximum self-resonant frequency of 40 MHz, supporting signals in high-frequency circuits.
Ideal for industrial, consumer electronics, and telecommunications applications, these inductors are primarily used in DC-DC converter circuits within devices like smartphones, tablets, solid-state drives (SSD), hard disk drives (HDD), digital video cameras (DVCs), and digital still cameras (DSCs).
Bourns inductors provide high reliability through monolithic construction and are suited for compact designs requiring minimal board space while delivering consistent inductive performance.
Constructed with a ferrite core for improved magnetic performance. Features a shielded multilayer design to minimize electromagnetic interference. Maximum DC resistance of 80 milliohms for efficient current handling. Compact 252009 package with dimensions 2.5mm length, 0.9mm height, and 2mm depth.
Rated for operation between -55°C and 125°C temperatures. RoHS compliant ensuring eco-friendly manufacturing standards. Solder termination style for reliable surface mount assembly. Maximum self-resonant frequency of 40 MHz.
Suitable for DC-DC converter applications in smartphones, tablets, SSDs, and other electronic devices. Browse more Surface Mount Inductors and electronic passive components on EnvMart for industrial and laboratory use, offering high performance and reliable quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 2.2 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 1.3 A.
The dimensions of the 252009 package are 2.5 mm in length, 0.9 mm in height, and 2 mm in depth.
The maximum DC resistance is 80 milliohms, which supports efficient current handling.
It is rated for operation between -55°C and 125°C.
The maximum self-resonant frequency of this inductor is 40 MHz.
This inductor utilizes a ferrite core, which enhances its magnetic performance.
It features a solder termination style for reliable surface mount assembly.
Yes, this inductor is RoHS compliant, ensuring it meets eco-friendly manufacturing standards.
This model is commonly used in DC-DC converter circuits within devices such as smartphones, tablets, SSDs, and digital cameras.
It has a multilayer construction, which helps to minimize electromagnetic interference.
This inductor has a pin count of 2.
