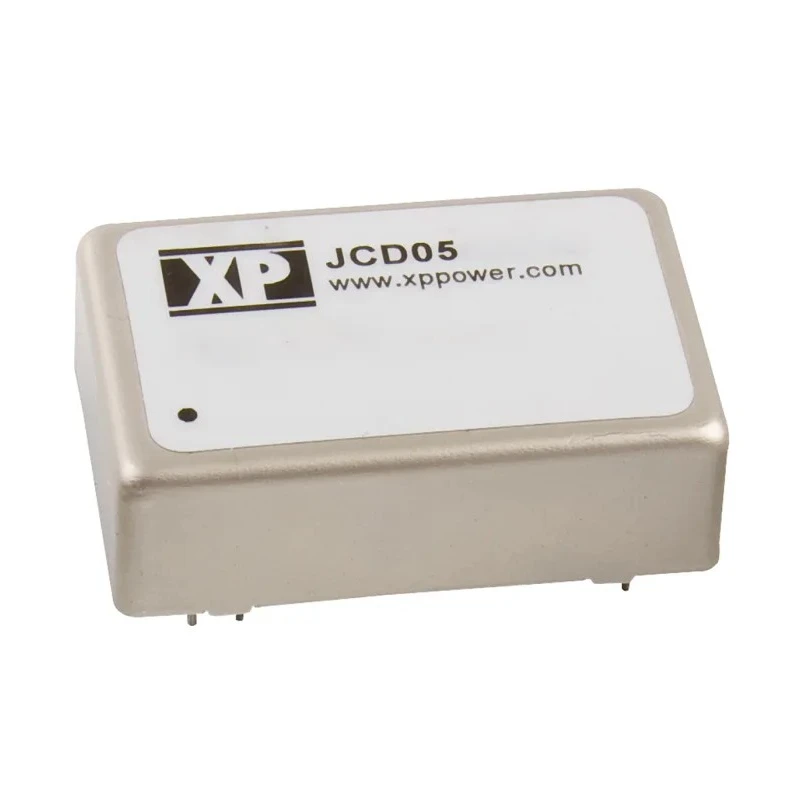

XP Power Isolated DC/DC Converter 5 V DC Output 1 A 9 V DC Input 4.5 V Input 5 W Through Hole DIP Package JCD0505S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCD DC/DC Converter, 5V dc/ 1 A, 9V dc In |
| Brand | XP Power |
| Efficiency | 77% |
| Length | 31.75mm |
| Model | JCD0505S05 |
| Depth | 10.4mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCD |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 5W |
| Maximum Input Voltage | 9V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact DIP through-hole package supports easy PCB mounting.
- Provides isolated DC output with 1600 VDC isolation voltage.
- Operates over a wide temperature range from -40°C to 100°C.
- Offers 77% efficiency with short circuit protection for reliable operation.
- Designed for industrial, electronic, and power supply applications.
- Mean time between failures (MTBF) of 1,100,000 hours ensures high reliability.
- Features 24 pins for robust connectivity and DIP package convenience.
- Input voltage minimum 4.5 V and maximum 9 V suitable for low voltage systems.
Product Description
XP Power JCD0505S05 is a reliable isolated DC/DC converter designed for converting input voltages ranging from 4.5 V to 9 V DC to a regulated 5 V DC output at 1 A. Packaged in a compact through-hole DIP format, this converter offers ease of mounting and durability suitable for industrial and electronic equipment.
The converter provides an isolation voltage of 1.6 kV DC to prevent cross-circuit interference, supporting safe use in sensitive circuits. It achieves an efficiency of 77%, enabling energy saving in continuous operations.
Designed to operate in harsh environments, this device maintains performance over a broad temperature range, from -40°C up to 100°C, making it ideal for applications exposed to thermal stress such as power supplies, communication equipment, and industrial control systems.
Key features include a 2:1 input voltage ratio, continuous short circuit protection, and a mean time between failure (MTBF) rated at 1,100,000 hours, reflecting robust reliability for demanding operations. The device has 24 pins for secure board mounting and connection.
Compact DIP through-hole package supports easy PCB integration. Offers 1600 VDC isolation to protect sensitive electronic circuits. Wide operating temperature range from -40°C to +100°C. High reliability with MTBF of 1,100,000 hours.
Input voltage range of 4.5 V to 9 V DC with 2:1 ratio. Output current of 1 A at 5 V DC output voltage. 77% conversion efficiency suitable for energy-conscious applications. Continuous short circuit protection ensures safe operation.
Ideal for industrial, laboratory, communication, and power supply use cases.
This XP Power DC/DC converter is an excellent choice for engineers and technicians looking for an isolated power conversion solution within compact design constraints and demanding operating environments. Browse similar DC/DC Converters and other power supply components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 4.5 V to 9 V DC.
It provides a regulated output voltage of 5 V DC at a maximum output current of 1 A.
This model has an efficiency rating of 77%.
The isolation voltage is 1.6 kV DC, which helps prevent cross-circuit interference.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.4 mm in depth.
It operates over a wide temperature range from -40°C to 100°C.
The converter features 24 pins for robust connectivity and mounting.
This model supports through-hole mounting, making it suitable for PCB integration.
The mean time between failures (MTBF) is rated at 1,100,000 hours, indicating high reliability.
This converter complies with RoHS standards.
It is designed for industrial, electronic, and power supply applications.
It includes continuous short circuit protection for safe operation.
