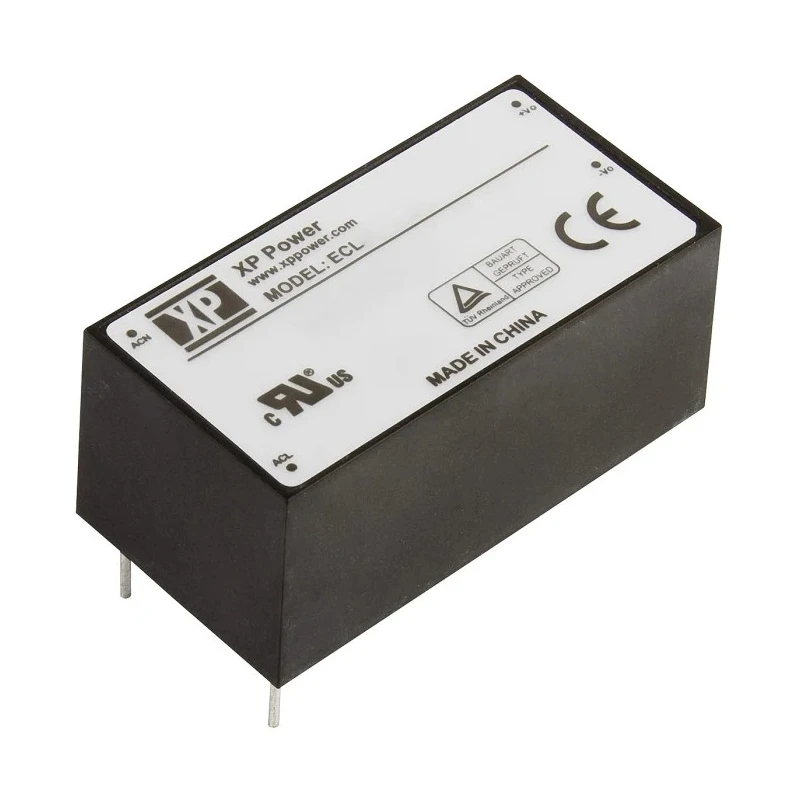

XP Power ECL05US24-E Switching Power Supply 24V DC 5W 264V AC PCB Mount ECL Series

Free Delivery in India | Lowest Global Shipping Charges

XP Power ECL05US24-E Switching Power Supply 24V DC 5W 264V AC PCB Mount ECL Series

Name: XP Power ECL05US24-E Switching Power Supply 24V DC 5W 264V AC PCB Mount ECL Series
Brand: XP Power
SKU: 140666



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	5W
Efficiency	82%
Length	52.4mm
Model	ECL05US24-E
Depth	23mm
Gross Weight	60g
Width	27.2mm
Mount Type	PCB
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	210mA
Minimum Input Voltage	85V ac

Key Features

Operates with input voltage range from 85V AC to 264V AC.
Single output with a current rating of 210mA.
Compact size with dimensions of 52.4mm length, 27.2mm width, and 23mm depth.
Wide operating temperature range from -20°C to 70°C.
High efficiency of 82% ensuring energy savings.
Designed to meet multiple standards including EN 60950-1, UL 60950-1, and IEC 60950-1.
Lightweight at 60g suitable for PCB mounting applications.
Part of the ECL series offering 5 to 30W AC-DC power supplies.

Product Description

XP Power ECL05US24-E switching power supply offers a 24V DC output with a power rating of 5W, ideal for electronic component power needs. Featuring a PCB mount design, this power supply supports input voltages ranging from 85V AC to 264V AC, delivering a stable single output at 210mA current.

With compact dimensions of 52.4mm length, 27.2mm width, and 23mm depth, it is suitable for space-constrained applications requiring efficient power management. The operating temperature range from -20°C to 70°C makes it reliable in varied environmental conditions.

The unit achieves a high efficiency of 82%, reducing energy consumption and heat generation during operation. It complies with stringent international safety and electromagnetic compatibility standards including EN 60950-1, UL 60950-1, IEC 60950-1, and several EN 61000 series approvals ensuring quality and safety.

This power supply belongs to the ECL series, which provides a range of 5 to 30W AC-DC power supplies available in various form factors such as open-frame PCB and chassis mount, encapsulated PCB and chassis mount versions. The encapsulated design enhances durability and offers protection against environmental factors.

Weighing only 60 grams, the ECL05US24-E is designed for easy integration in industrial, commercial, and electronic equipment where compact, reliable power conversion is essential. Manufactured in China and supplied new, it assures consistent quality performance.

Operates with input voltage range from 85V AC to 264V AC. Single output with a current rating of 210mA. Compact size with dimensions of 52.4mm length, 27.2mm width, and 23mm depth. Wide operating temperature range from -20°C to 70°C.

High efficiency of 82% ensuring energy savings. Designed to meet multiple standards including EN 60950-1, UL 60950-1, and IEC 60950-1. Lightweight at 60g suitable for PCB mounting applications. Part of the ECL series offering 5 to 30W AC-DC power supplies.

Encapsulated design for protection and reliability. Manufactured in China with new product condition.

XP Power Switching Power Supplies are widely used in industrial electronics, telecommunications, instrumentation, and control systems. Browse more power supplies and transformers at EnvMart for comprehensive power solutions.
