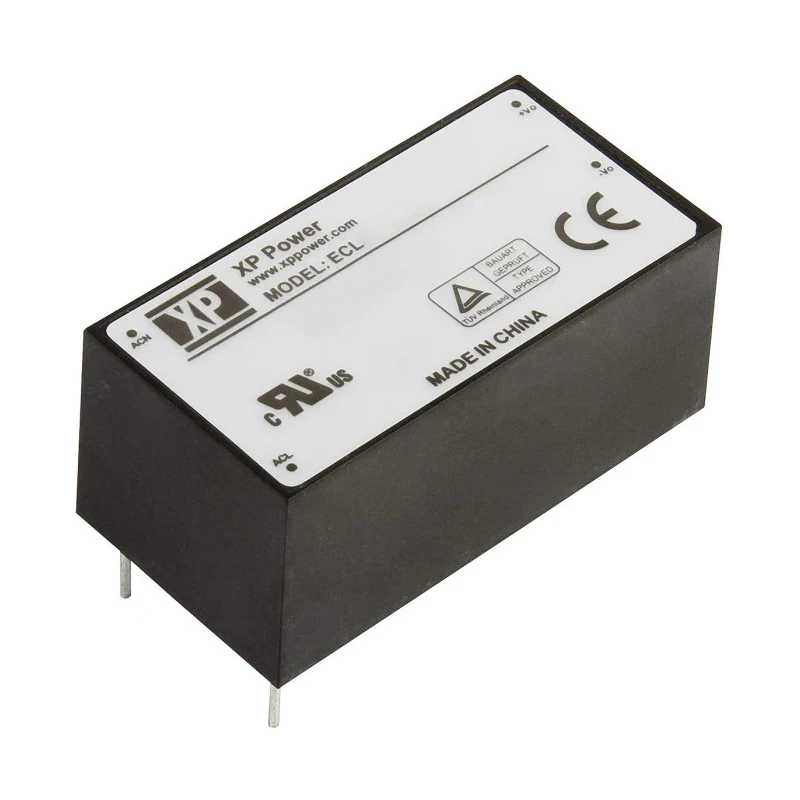

XP Power ECL05US48-E Switching Power Supply 48V DC, 5 W, PCB Mount, 264V AC Input
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Power | 5W |
| Efficiency | 82% |
| Length | 52.4mm |
| Model | ECL05US48-E |
| Depth | 23mm |
| Gross Weight | 60g |
| Width | 27.2mm |
| Mount Type | PCB |
| Series | ECL |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 48V dc |
| SMPS Output Current | 100mA |
| Minimum Input Voltage | 85V ac |
Key Features
- Provides 48V DC output and 5W power for demanding electronic projects.
- Features PCB mount for easy integration into electronic systems.
- Operates efficiently with an input voltage range of 85V to 264V AC.
- Offers single output with a maximum output current of 100mA.
- Wide operating temperature range from -20°C to 70°C, ensuring reliability in various environments.
- Compact form factor (52.4mm x 27.2mm x 23mm) conserves board space.
- Certified to EN, IEC, and UL standards for industrial compliance.
- Efficiency rated at 82% for energy-conscious operations.
Product Description
XP Power ECL05US48-E Switching Power Supply is a highly reliable, PCB-mounted AC-DC power supply that delivers a regulated 48V DC output at a maximum power of 5 W. Designed to fit compact electronic and industrial assemblies, its ultra-compact footprint (52.4mm x 27.2mm x 23mm) and encapsulated construction make it an ideal solution for embedded designs requiring stable power and space efficiency.
This single output SMPS supports a wide input voltage range from 85V to 264V AC, making it suitable for global installations and various industrial scenarios. The device supplies up to 100mA DC output current, maintaining performance in harsh conditions from -20°C to 70°C operating temperature. Its high efficiency (82%) minimizes energy loss and heat generation, benefiting energy-conscious applications.
The ECL05US48-E is equipped with PCB mounting features for easy integration, reducing assembly complexity and maximizing reliability. It is engineered for general industrial electronics, automation, instrumentation systems, laboratory equipment, and commercial power applications. The stringent compliance with international standards such as EN 61000-3-2, EN 55022, EN 60950-1, IEC 60950-1, and UL 60950-1 ensures robust protection and operational safety.
Its design supports applications where minimal power draw at no load (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XP Power ECL05US48-E provides a regulated output of 48V DC with a maximum power rating of 5W.
This model operates efficiently with an input voltage range of 85V to 264V AC, making it suitable for global installations.
The maximum output current for this unit is 100mA.
The dimensions of the XP Power ECL05US48-E are 52.4mm in length, 27.2mm in width, and 23mm in depth.
It has an efficiency rating of 82%, which helps to minimize energy loss during operation.
This unit operates within a wide temperature range of -20°C to 70°C, ensuring reliability in various environments.
This power supply features PCB mounting, allowing for easy integration into electronic systems.
It is certified to EN, IEC, and UL standards, ensuring compliance with industrial safety and performance requirements.
This model is engineered for general industrial electronics, automation, instrumentation systems, laboratory equipment, and commercial power applications.
The gross weight of the XP Power ECL05US48-E is 60g.
Installation is simplified due to its PCB mounting features, which reduce assembly complexity and maximize reliability.
The ECL05US48-E is part of the ECL series of switching power supplies.
