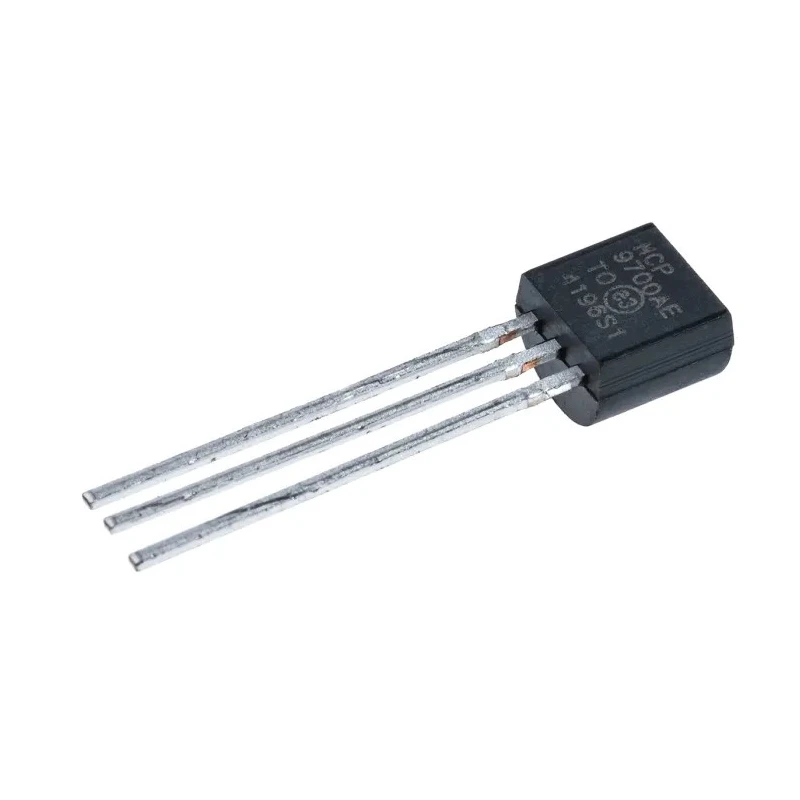

Microchip Voltage Output Temperature Sensor , Analogue, ±1°C Accuracy, TO-92, 3-Pin MCP9700A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Accuracy | ±1°C |
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP9700A |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9700A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- TO-92 package, 3-pin through hole mounting.
- Offers ±1°C accuracy for reliable temperature monitoring.
- Supports supply voltage range from 2.3V to 5.5V.
- Operating temperature range from -40°C to 125°C.
- Sensor gain of 10mV/°C for precise conversion.
- Suitable for applications including office equipment, home appliances, and battery packs.
Product Description
The Microchip MCP9700A-E/TO is a voltage output Temperature Sensor that features an analogue interface for precise temperature measurement in various electronic systems. Designed in a TO-92 through-hole package with a 3-pin configuration, it ensures easy integration into printed circuit boards and industrial assemblies.
This sensor offers ±1°C accuracy, providing highly reliable measurements for critical monitoring environments. It operates over a wide temperature range from -40°C to 125°C, making it suitable for demanding applications such as office equipment, entertainment systems, home appliances, hard disk drives, and battery packs.
The MCP9700A-E/TO delivers a sensor gain of 10mV/°C, allowing clear signal transmission and resistance to parasitic capacitance. With a supply voltage range of 2.3V to 5.5V, it adapts flexibly to different circuit designs while maintaining stability.
Its compact size, featuring dimensions of 4.71mm length, 4.62mm height, and 3.62mm width, enables installation in space-constrained environments. The device’s robust construction supports large capacitive loads and enhances system performance in industrial, laboratory, and commercial setups.
Applications include temperature monitoring, energy management in office equipment, intelligent home appliances, entertainment electronics, and battery pack safety. Its high accuracy and analogue voltage output make it an excellent choice for systems requiring precise temperature feedback.
Explore more technical sensors in EnvMart’s Electronics & Electricals category or browse Microchip brand solutions for advanced temperature and environmental monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9700A offers an accuracy of ±1°C, ensuring reliable temperature measurements for various applications.
This temperature sensor operates over a range from -40°C to 125°C, making it suitable for a wide variety of environments.
It provides a voltage output, which is suitable for analogue interfacing in electronic systems.
The sensor gain of the MCP9700A is 10mV/°C, allowing for precise temperature signal conversion.
It supports a supply voltage range from 2.3V to 5.5V, providing flexibility for different circuit designs.
The dimensions of this model are 4.71mm in length, 4.62mm in height, and 3.62mm in width.
This temperature sensor is designed for through-hole mounting, making it easy to integrate into printed circuit boards.
It is suitable for applications including office equipment, home appliances, entertainment systems, and battery packs.
The sensor is packaged in a TO-92 form factor, which is common for many electronic components.
This model features a 3-pin configuration, facilitating easy connections in various electronic setups.
The country of origin for the MCP9700A is Taiwan.
It utilizes an analogue interface for temperature measurement, allowing for straightforward integration into electronic systems.
