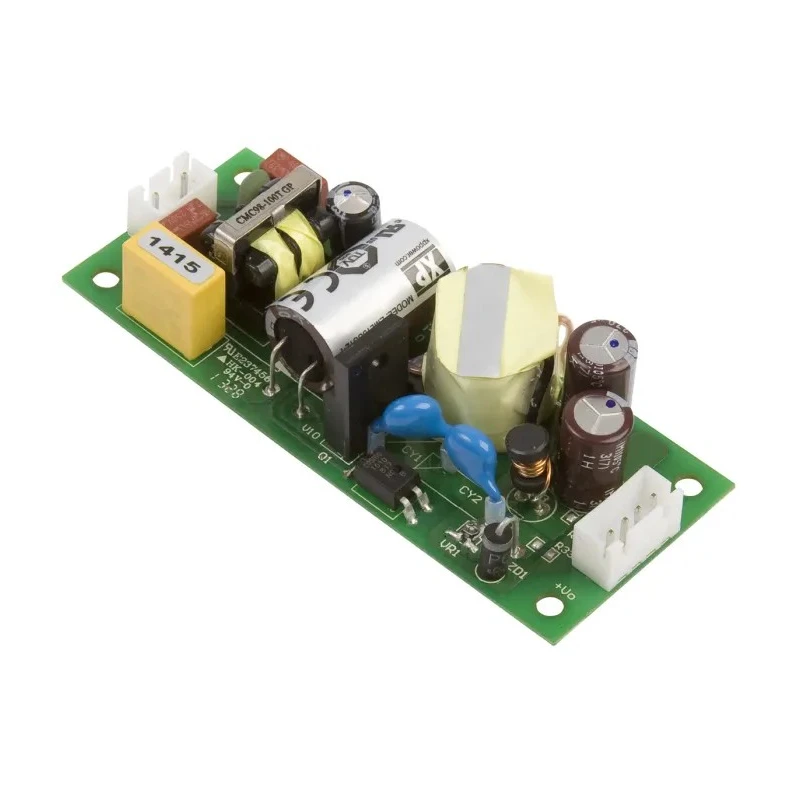

XP Power Medical Grade Switching Power Supply 5V DC 15W, 3A Output, Chassis Mount EML15US05-T
Specifications
| Country of Origin | China |
|---|---|
| Brand | XP Power |
| Power | 15W |
| Efficiency | 88% |
| Length | 78.7mm |
| Model | EML15US05-T |
| Depth | 20mm |
| Gross Weight | 35g |
| Width | 31.8mm |
| Mount Type | Chassis |
| Series | EML |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 5V dc |
| SMPS Output Current | 3A |
| Minimum Input Voltage | 85V ac |
Key Features
- Designed for medical applications with IEC 60601-1 compliance.
- Single output of 5V DC at 3A current capacity for reliable operation.
- Compact chassis mount form factor measuring 78.7mm x 31.8mm x 20mm.
- Wide input voltage range from 85V to 264V AC ensuring global compatibility.
- Operating temperature range from -20°C to 70°C to suit varied environments.
- High efficiency rating of 88% minimizes power loss and heat generation.
- Lightweight design at only 35 grams, facilitating easy integration.
- Recommended for use in healthcare instrumentation and medical equipment.
Product Description
XP Power EML15US05-T is a high-quality switching power supply designed specifically for medical use, providing a regulated 5V DC output at 15W power and 3A current. Its chassis mount design makes it suitable for integration into medical and healthcare devices where compliance and safety are critical.
This model operates over a wide AC input voltage range from 85V up to 264V, allowing it to be used internationally without modifications. It supports a broad operating temperature range from -20°C to 70°C, ensuring reliable performance in diverse environments.
The power supply is compact, with dimensions 78.7mm in length, 31.8mm width, and 20mm depth, making it ideal for space-constrained applications. Weighing only 35 grams, it adds minimal weight to the final assembly.
XP Power’s EML15 series is well-regarded for medical safety compliance, meeting stringent standards such as ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1. This ensures electromagnetic compatibility, patient safety, and high reliability in medical instrumentation.
Efficiency of 88% helps reduce energy consumption and thermal output, prolonging device life and reducing cooling requirements. The robust design includes Class II rating and medical-grade insulation, making it suitable for critical medical and healthcare environments.
Designed for medical grade applications with global safety approvals. 5V DC output voltage with a 3A current capacity and 15W power rating. Compact chassis mount with PCB open frame and encapsulated options in the series.
Wide AC input voltage supports 85 to 264 volts AC. Operating temperature range from -20°C to 70°C. High efficiency of 88% reduces energy loss and heat. Lightweight and compact for easy device integration. Meets ANSI/AAMI ES 60601-1, EN 60601-1/A12, IEC 60601-1.
This switching power supply is ideal for industrial, medical, laboratory, and commercial healthcare instrumentation. It provides reliable and safe DC power conversion meeting strict regulatory requirements. Browse more from XP Power or related Switching Power Supplies on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a current capacity of 3A, resulting in a total power rating of 15W.
The power supply has a compact chassis mount design with dimensions of 78.7mm in length, 31.8mm in width, and 20mm in depth.
It operates over a wide AC input voltage range from 85V to 264V, allowing for global compatibility without modifications.
The efficiency rating of this unit is 88%, which helps minimize energy loss and heat generation during operation.
This model can operate within a temperature range of -20°C to 70°C, making it suitable for various environments.
It meets stringent medical safety standards including ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1, ensuring patient safety and reliability.
This power supply features a chassis mount design, making it suitable for integration into various medical and healthcare devices.
The unit weighs only 35 grams, facilitating easy integration into final assemblies without adding significant weight.
It has a single output, delivering 5V DC at 3A current capacity.
This model is recommended for use in healthcare instrumentation and medical equipment, where compliance and safety are critical.
This power supply belongs to the EML series from XP Power, which is designed specifically for medical applications.
The XP Power EML15US05-T is manufactured in China.
