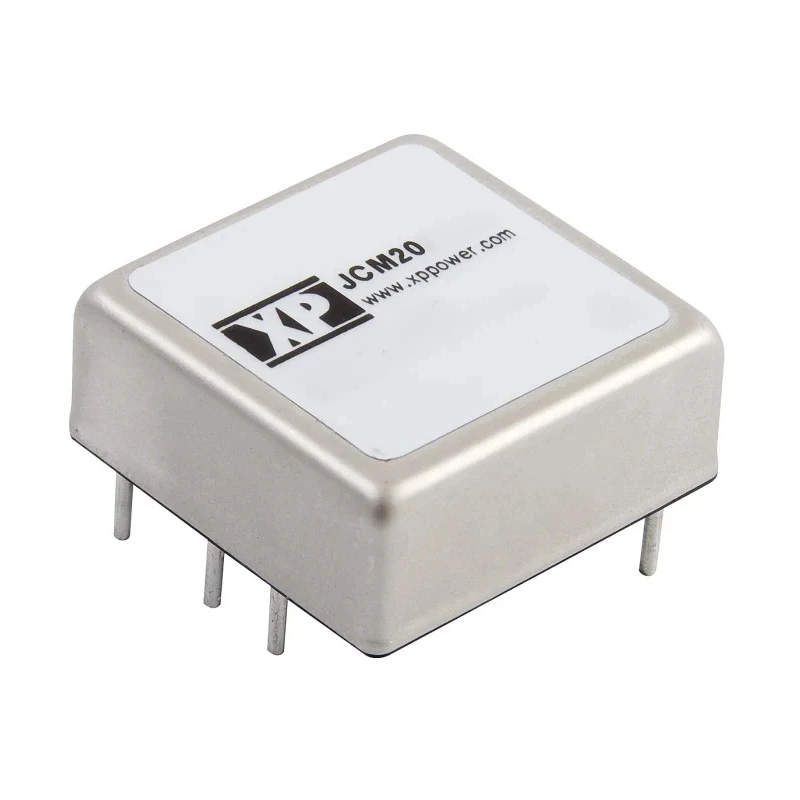

XP Power Isolated 20W Dual Output DC/DC Converter, 15 V and -15 V, 667 mA Output Current, 18V/9V Input Voltage TH JCM2012D15

XP Power JCM2012D15 is a robust isolated DC/DC converter designed for industrial, electronic component, and power supply applications. It delivers a total output power of 20 W with dual output voltages of +15 V and -15 V at a maximum output current of 667 mA. This converter supports a wide input voltage range from 9 V to 18 V DC, with a 2:1 input ratio, providing flexibility for various power input scenarios.

The 1 x 1 inch package is designed as a through-hole mount type with 6 pins, facilitating easy integration in printed circuit boards for power conditioning. The product provides 1600 V DC isolation voltage, making it compliant for applications requiring galvanic isolation between input and output circuits.

Operating reliably across a minimum ambient temperature of -40 °C up to a maximum of 105 °C, it is suitable for harsh and demanding environments such as industrial controls, instrumentation, and telecommunications equipment. Its efficiency rating of 89% contributes to reduced power losses and helps maintain cooler operation and enhanced energy savings.

The expected mean time between failures (MTBF) stands at an impressive 560,000 hours, underscoring its reliability in continuous operation scenarios. The compact footprint with dimensions of 25.4 mm length, 25.4 mm width, and 9.9 mm depth eases integration into space-constrained systems.

Industry standard 1 x 1 inch package with 6-pin through-hole mount. High isolation voltage of 1600 V DC for safety and noise reduction. Wide input voltage range of 9 V to 18 V DC with 2:1 ratio. Dual outputs of +15 V and -15 V at 667 mA.

Operating temperature range from -40 °C to +105 °C for reliability. High efficiency of 89% for reduced heat and improved power usage. Mean Time Between Failures (MTBF) of 560,000 hours ensures longevity. Compact dimensions support flexible PCB layout and integration.

This product is manufactured in Taiwan, Province Of China and is ideal for electronic design engineers and industrial applications requiring isolated DC power conversion. It is perfect for use in power supplies, instrumentation, and industrial automation systems where reliable DC/DC isolation and dual voltage outputs are necessary to maintain system stability and safety.
