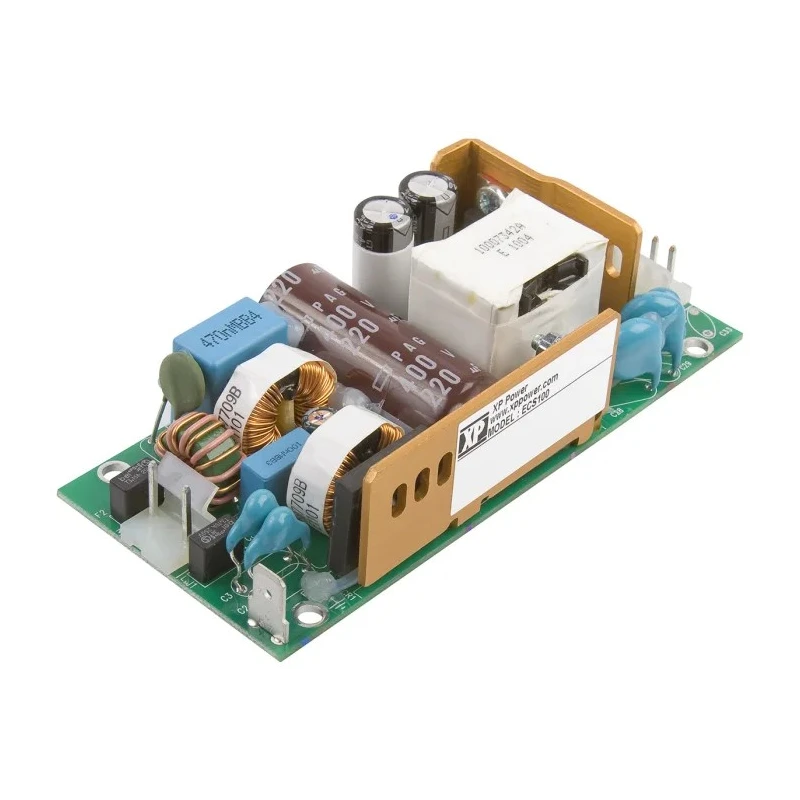

XP Power ECS100US48 Switching Power Supply 48V DC, 100W, 264V AC Input, Chassis Mount ECS100US48

XP Power ECS100US48 Switching Power Supply delivers reliable 48V DC output at a maximum output power of 100W. Designed for demanding industrial and medical equipment applications, it supports a wide input voltage range from 120V to 264V AC ensuring stable operation in various power conditions.

This chassis mounted power supply features a compact 2 x 4 inch footprint and a lightweight design of 175 grams. It provides a continuous output current of 2.1A with efficiency up to 90%, reducing operating costs and heat generation. Operating temperature ranges from -20°C to +70°C make it suitable for harsh environments.

The ECS100US48 is a member of the XP Power ECS100 series known for its IT and medical approvals, low leakage current, and minimal no-load power consumption of less than 0.5W, making it highly energy efficient. The unit is convection cooled, eliminating the need for additional cooling fans, which enhances reliability and reduces maintenance.

The power supply complies with multiple international standards, including EN 61000-4 series EMC requirements, CSA, UL, and IEC 60950-1 safety certifications, ensuring compatibility and safety in critical applications. The product is engineered for industry standard mounting and is ideal for laboratory, industrial, and healthcare equipment power needs.

Physical dimensions are 101.6mm length, 50.8mm width, and 28.3mm depth, facilitating compact system designs. This product combines safety, conformance, and performance in a compact, efficient package.

The unit features a chassis mount type for secure installation. Supports input voltages from 120V to 264V AC, suitable for variable power sources. Operates efficiently at up to 90% efficiency for reduced energy consumption.

Designed for operation between -20°C to 70°C for a wide range of environments. Provides an output current capacity of 2.1A for versatile powering needs. Compact dimensions of 101.6mm length, 50.8mm width, and 28.3mm depth ensure space efficiency.

Lightweight design at 175g allows easy integration without load concerns. Complies with multiple international safety and EMC standards including UL and TUV certifications. The ECS series is specifically approved for IT and medical device power supply applications.

Convection cooled with low leakage current and low no-load power consumption. Explore more switching power supplies and power distribution products at EnvMart for your industrial and medical equipment requirements.
