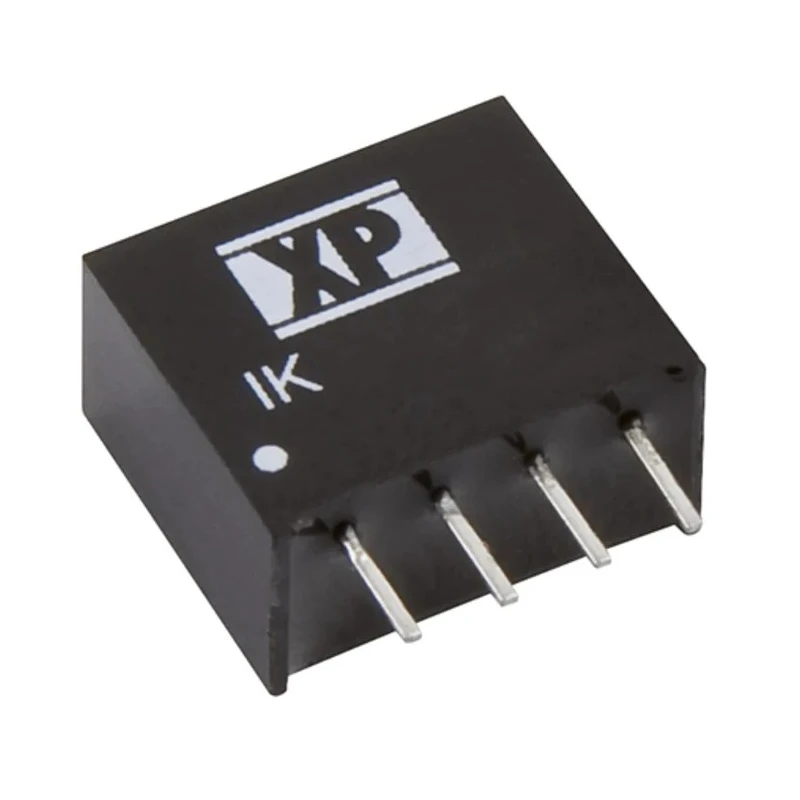

XP Power Isolated DC/DC Converter SIP Package 12V DC Output 600mA 18V/9V Input 0.25W Through Hole IK0512SA

XP Power IK0512SA is a highly reliable isolated DC/DC converter designed for low power applications requiring precise voltage isolation and consistent output. This model provides a 12V DC output current of 600 mA from input voltages ranging between 9V and 18V supporting a 2:1 input ratio. The device comes in an industry standard SIP package with through-hole mount type, enabling easy integration into various electronic assemblies.

With a maximum output power of 0.25 W and isolation voltage rated at 1000 VDC, this converter ensures safety and protection in sensitive electronic circuits. It operates efficiently at 68% under varying load conditions while maintaining performance at operating temperatures from -40°C up to 85°C. The compact dimensions (11.68 mm length, 6 mm width, 10.15 mm depth) and 7-pin configuration support space-constrained designs in industrial and commercial setups.

The IK series is ideal for applications in industrial instrumentation, telecommunications equipment, medical devices, and other embedded systems requiring high isolation and reliable DC power conversion. Its long mean time between failures (MTBF) of 1,100,000 hours assures durability and stable operation over extended usage.

This model features single output with 12V DC output voltage at 600 mA. Input voltage range between 9V and 18V with a 2:1 ratio. Through hole SIP package simplifies PCB mounting and assembly. Supports operating temperatures from -40°C to 85°C, suitable for harsh environments.

Isolated design with 1000 VDC isolation voltage enhances circuit protection. Maximum output power of 0.25 W with 68% efficiency. Compact physical dimensions with length 11.68 mm, width 6 mm, and depth 10.15 mm. 7 pins facilitate secure electrical connections.

MTBF of 1,100,000 hours ensures reliability and long service life.

This XP Power IK0512SA DC/DC Converter is sourced from Taiwan, Province Of China, reflecting high manufacturing standards. This converter is widely employed in industrial equipment, laboratory instrumentation, communication devices, and power supply modules. EnvMart offers this model as part of our extensive power conversion product range designed for demanding electrical and electronic applications.
