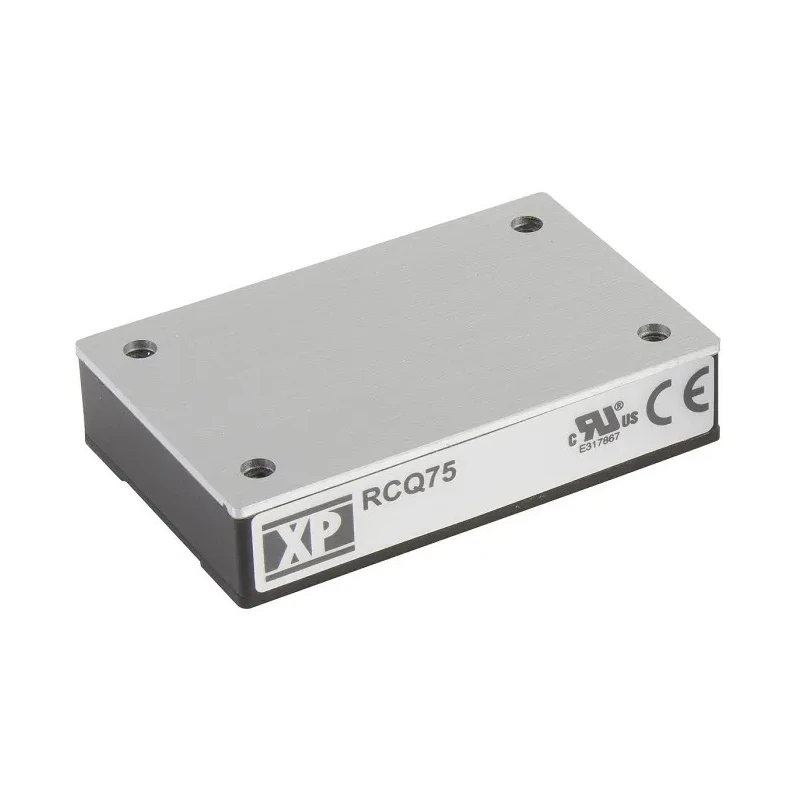

XP Power DC/DC Converter 24V DC, 3.13A, 160V DC Input, 66V Input, 75W, Through Hole, 105°C Max Temp RCQ75
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power RCQ75 DC/DC Converter, 24V dc/ 3 |
| Brand | XP Power |
| Efficiency | 94% |
| Length | 57.9mm |
| Model | RCQ75 |
| Depth | 12.5mm |
| Width | 36.8mm |
| Mount Type | Through Hole |
| Series | RCQ75 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 75W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 66V |
| Number of Pins | 8 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 3.13A |
| Output Voltage Adjustment Range | 66/160 V |
| Isolation Voltage | 3kV ac |
Key Features
- This converter provides regulated isolated DC/DC conversion with 75W output power.
- Input voltage range from 66V to 160V DC supports versatile applications.
- Through hole mount type allows easy PCB integration.
- Operating temperature range is from -40°C to +105°C for reliable performance.
- Isolation voltage rating of 3kV AC ensures electrical safety.
- Compact DIP package with 8 pins and dimensions 57.9mm x 36.8mm x 12.5mm.
- High efficiency of 94% minimizes power loss and heat generation.
- Designed for industrial use meeting EN50155, IEC60571, and EN50121-3-2 EMC standards.
Product Description
XP Power RCQ75 DC/DC Converter is a high-reliability power supply solution designed for industrial and transportation applications. It features a regulated single output of 24V DC at 3.13A with a maximum output power of 75W. The device supports a wide input voltage range from 66V to 160V DC, allowing compatibility with various power sources.
The converter utilizes through hole mounting style and an 8-pin DIP package with compact dimensions (Length 57.9mm, Width 36.8mm, Depth 12.5mm), making it ideal for PCB assembly with robust mechanical stability. It provides an isolation voltage of 3kV AC, ensuring electrical safety and protecting sensitive components in the system.
Operating reliably within a wide temperature range from -40°C to +105°C, this converter is suitable for harsh environmental conditions encountered in industrial, railway, telecom, and power distribution systems. The high efficiency of 94% reduces energy loss and thermal management requirements.
The RCQ75 series complies with relevant industrial standards including EN50155, IEC60571, and EN50121-3-2 EMC, guaranteeing electromagnetic compatibility and suitability for railway applications. The remote ON/OFF control and remote sensing features (not detailed here) add to versatility in system integration.
Regulated isolated DC/DC converter with 75W output power. Wide input voltage range: 66V to 160V DC. Output voltage of 24V DC with 3.13A current. Through hole mount and DIP package with 8 pins. High isolation voltage of 3kV AC for safety.
Compact size for versatile PCB mounting. Operating temperature from -40°C to +105°C. High efficiency at 94% for energy-saving operation. Meets stringent industrial and railway EMC standards.
This XP Power DC/DC converter series is well-suited for applications in industrial automation, transportation (rail systems), communications, and power supply systems requiring robust, reliable, and efficient power conversion. Explore further products in DC/DC Converters at EnvMart for more power supplies and electronic components.
