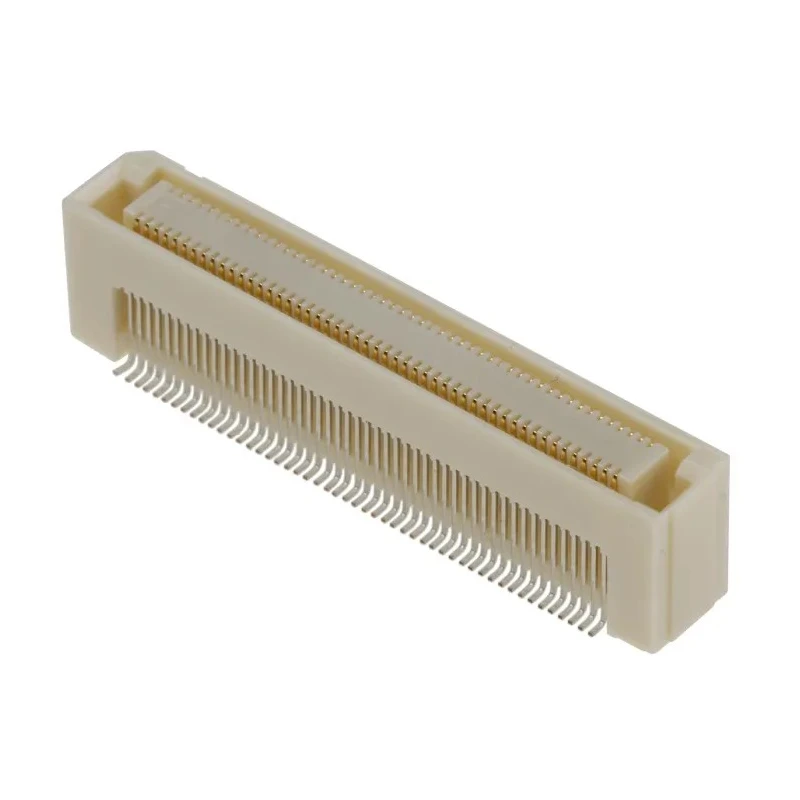

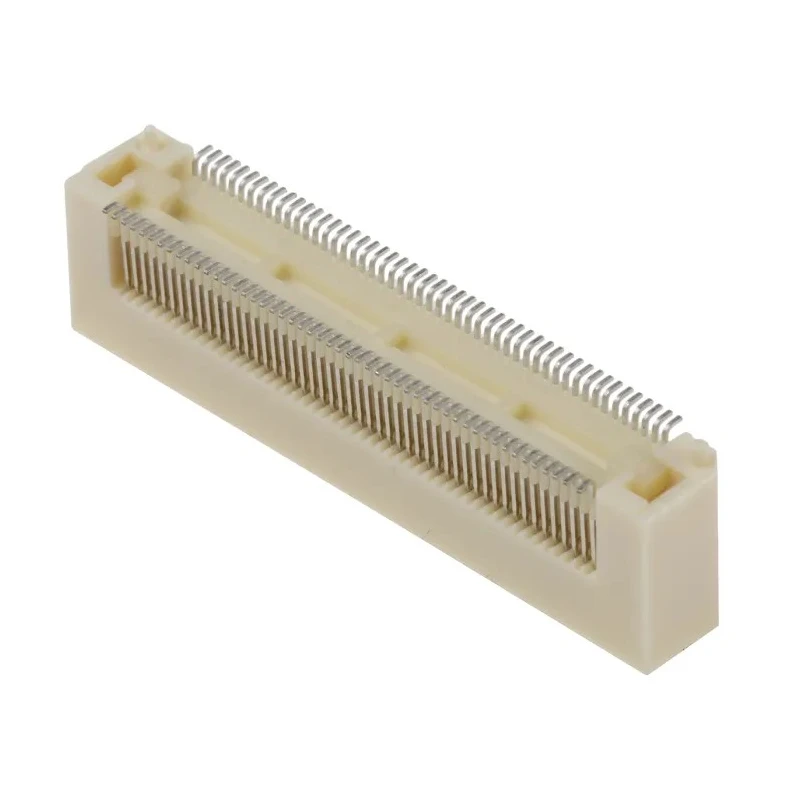

Hirose FunctionMAX Series Straight Surface PCB Socket, 100-Contact, 2 Row, 0.6 mm Pitch, 100V, 400mA, Gold Plated FX8C

Hirose FX8C Series Straight Surface PCB Socket, model FX8C, is a high-performance board-to-board connector designed for reliable electrical connections with 100 contacts arranged in 2 rows and a pitch of 0.6 mm. Rated for 100V and 400mA current, this connector features a polyphenylene sulphide housing and bronze contacts plated with gold for excellent conductivity and durability.

The connector incorporates built-in guide ribs, enabling a self-alignment tolerance of +/- 0.6 mm during mating. This allows easy installation and flexibility in design, improving assembly efficiency. With a stacking height of 16 mm, it is compact enough for high-density board layouts.

FX8C connectors use surface mount technology (SMT) with a solder termination, ensuring stable electrical and mechanical connections to the PCB. The contacts include an optimized spring deflection design, enhancing reliability and contact stability over prolonged use. The product operates effectively in a wide temperature range from -55°C to 85°C, making it suitable for demanding industrial environments.

This connector series is ideal for industrial applications including servers, broadcast equipment, medical instrumentation, POS terminals, and other industrial devices requiring high-speed data transmission and robust performance. It supports transmission rates up to 3.125 Gbit/s with excellent signal integrity.

Supports a high current rating of 400mA at 100V for reliable performance. Constructed with polyphenylene sulphide housing and gold-plated bronze contacts for durability. Stacking height of 16mm optimizes board space usage.

Designed with built-in guide ribs for easy mating and alignment with +/- 0.6 mm tolerance. Suitable for use in servers, industrial equipment, medical devices, and POS terminals. Operates reliably between -55°C and 85°C, ensuring functionality in harsh environments.

Features female contact gender with a spring deflection design for enhanced connection reliability. Surface mount termination ensures secure soldering to PCB.

The Hirose FunctionMAX brand emphasizes innovative board-to-board connectors with high-speed signal transmission and noise resistance, suitable for a diversity of industrial and commercial technology applications. This FX8C series connector exemplifies those principles, delivering precision alignment, high-speed communication, and dependable electrical performance.
