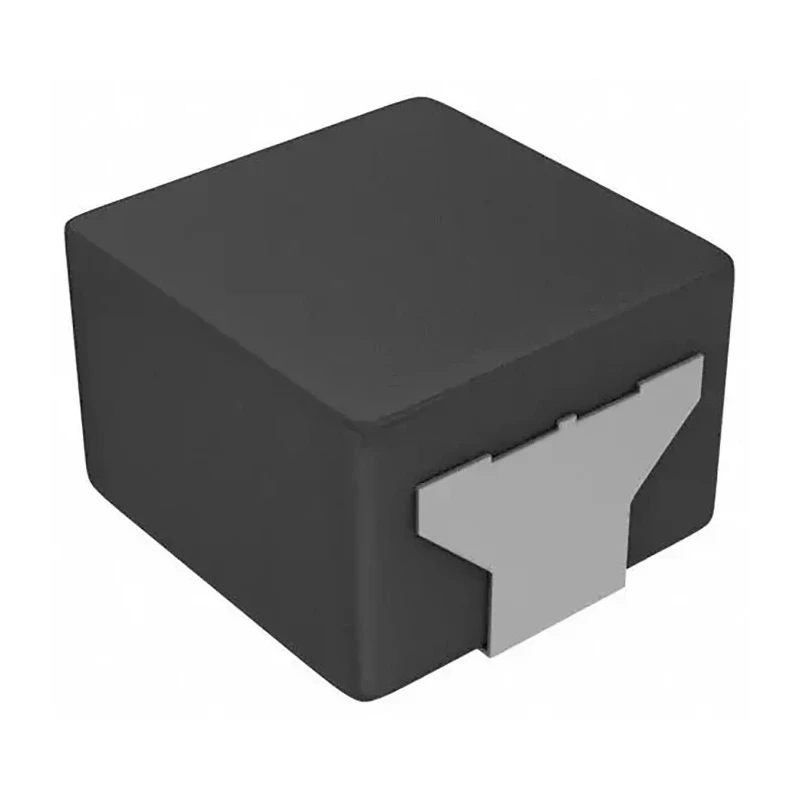

Panasonic Surface Mount Inductor 6.8 μH Metal Composite Core 3.3 A IDC 0530 Case ETQP3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 5.5mm |
| Model | ETQP3M |
| Depth | 5mm |
| Packaging | Box |
| Series | ETQP3M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Package/Case | 0530 |
| Maximum DC Current | 3.3A |
| Maximum DC Resistance | 69.7mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- Features excellent inductance stability over a wide temperature range.
- Constructed with a metal composite core for high heat resistance up to 155°C.
- Designed for surface mount applications with a compact 0530 package case.
- Complies with RoHS standards and automotive AEC-Q200 qualification.
- Integral construction provides low DC resistance and efficient performance.
- Suitable for automotive use and harsh environments requiring high vibration resistance.
- Low audible noise during operation enhances device reliability.
Product Description
Panasonic ETQP3M surface mount inductor is a 6.8 μH power choke coil constructed with a metal composite core, designed for high efficiency and durability in demanding industrial and automotive applications. It supports a maximum DC current of 3.3 A and features a compact 0530 case package measuring 5.5 mm in length, 3 mm height, and 5 mm depth, providing excellent integration in space-constrained PCB layouts.
The integral construction reduces DC resistance to 69.7 mΩ, improving power efficiency while delivering excellent heat resistance, allowing reliable operation in temperatures ranging from -55°C to 155°C. These inductors comply with automotive standard AEC-Q200 and RoHS, ensuring suitability for automotive electronics and other professional environments.
This model is well-suited for noise filtering in drive circuitry, DC/DC buck converters, and boost converters, making it ideal for automotive, industrial, laboratory, and manufacturing applications requiring stable inductance and low audible noise.
The surface mount design facilitates automated assembly processes and secure mounting, enhancing vibration resistance for operation under harsh conditions. The ferrous alloy magnetic material core ensures high bias current capability and minimal eddy-current losses, delivering exceptional performance reliability.
Excellent inductance stability across broad temperature ranges. High heat resistance due to metal composite core technology. Compact surface mount 0530 case for efficient PCB integration. Automotive AEC-Q200 standard for rigorous environmental compliance.
Low DC resistance for power efficiency and reduced losses. High vibration resistance suitable for automotive and industrial use. Low audible noise improves system reliability.
This Panasonic ETQP3M inductor is an ideal component for engineers designing automotive power circuits, industrial control systems, and electronic devices requiring reliable noise suppression and current handling capacity.
Explore more Panasonic inductors and electronics components in the Surface Mount Inductor category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8 μH.
It can handle a maximum DC current of 3.3 A.
The dimensions are 5.5 mm in length, 3 mm in height, and 5 mm in depth.
This model can operate in temperatures ranging from -55°C to 155°C.
The maximum DC resistance is 69.7 mΩ.
The core material is a metal composite, which provides high heat resistance.
Yes, it complies with RoHS standards and automotive AEC-Q200 qualification.
It features a surface mount termination style.
It is suitable for noise filtering in drive circuitry, DC/DC buck converters, and boost converters, among others.
The integral construction reduces DC resistance, improving power efficiency and performance reliability.
It is packaged in a box for secure transport and storage.
The compact 0530 case allows for efficient integration in space-constrained PCB layouts.
