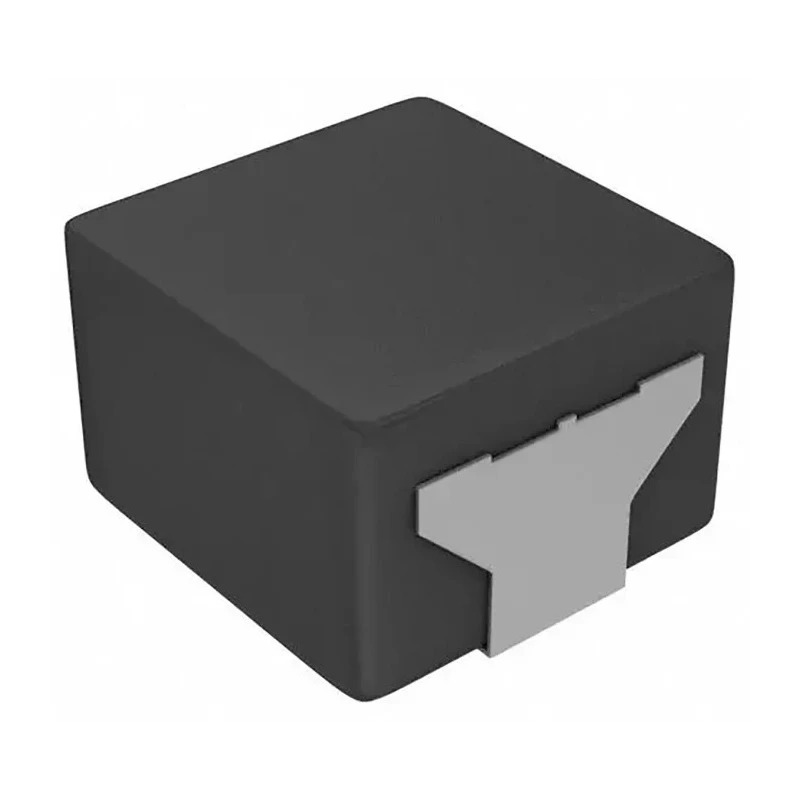

Panasonic 3.3 μH 0630 Surface Mount Inductor with Metal Composite Core, Integral Construction ±20% Tolerance, 6.1 A ETQP3M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 6.4mm |
| Model | ETQP3M |
| Depth | 6mm |
| Packaging | Embossed Carrier Tape |
| Series | ETQP3M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 3.3μH |
| Standards/Approvals | AEC-Q200, RoHS |
| Package/Case | 0630 |
| Maximum DC Current | 6.1A |
| Maximum DC Resistance | 24.1mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor features integral construction with a tolerance of ±20%.
- It supports a maximum DC current of 6.1 A, suitable for demanding applications.
- The compact 0630 package has dimensions of 6.4mm length, 3mm height, and 6mm depth.
- Designed for automotive and industrial use with AEC-Q200 and RoHS compliance.
- The metal composite core provides excellent heat resistance up to 155°C and low DC resistance of 24.1 mΩ.
- Its surface mount termination style ensures easy PCB assembly.
- Suitable as noise filters in drive circuitry and DC/DC converter circuits.
Product Description
Panasonic ETQP3M surface mount inductor is a low profile power choke coil designed with a metal composite core and integral construction, delivering 3.3 μH inductance with ±20% tolerance. It supports a maximum DC current of 6.1 A and operates reliably in temperatures ranging from -55°C to 155°C. The 0630 package size (6.4mm x 3mm x 6mm) ensures compact mounting on PCBs.
Utilizing ferrous alloy magnetic materials, these inductors offer excellent inductance stability and low DC winding resistance, which translates to high efficiency under load. The metal composite technology also helps reduce eddy-current losses and audible noise, making them highly suitable for sensitive applications.
These choke coils comply with automotive standards including AEC-Q200 and RoHS, reflecting their quality and environmental safety. They are particularly built to withstand harsh automotive and industrial environments, providing high vibration resistance and heat tolerance.
Common applications include noise filtering in drive circuitry requiring high peak current handling, as well as use in DC/DC buck and boost converters for power management. The surface mount design supports automated PCB assembly processes.
This inductor features integral construction with ±20% inductance tolerance. Maximum DC current rating is 6.1 A for high load capacity. Package dimensions are 6.4mm length, 3mm height, and 6mm depth in a 0630 case. Construction uses a metal composite core enabling excellent heat resistance.
Complies with automotive AEC-Q200 and meets RoHS environmental standards. Ideal for automotive power circuits and industrial electronic applications. Low DC resistance of 24.1 mΩ ensures efficient operation. Explore Panasonic components and Surface Mount Inductors in the EnvMart catalog for reliable electronic component sourcing and industrial-grade applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 6.1 A, making it suitable for demanding applications.
The dimensions of the 0630 package are 6.4 mm in length, 3 mm in height, and 6 mm in depth.
It operates reliably within a temperature range of -55°C to 155°C.
The ETQP3M features a metal composite core, which provides excellent heat resistance and low DC resistance.
This model complies with automotive standards AEC-Q200 and is RoHS compliant, ensuring quality and environmental safety.
The termination style of this inductor is surface mount, facilitating easy PCB assembly.
The maximum DC resistance for this inductor is 24.1 mΩ, contributing to its efficiency under load.
It is particularly suitable for noise filtering in drive circuitry and for use in DC/DC buck and boost converters.
The ETQP3M is packaged in embossed carrier tape, which supports automated assembly processes.
This model features integral construction, enhancing its performance and reliability in various applications.
The country of origin for this inductor is Japan.
