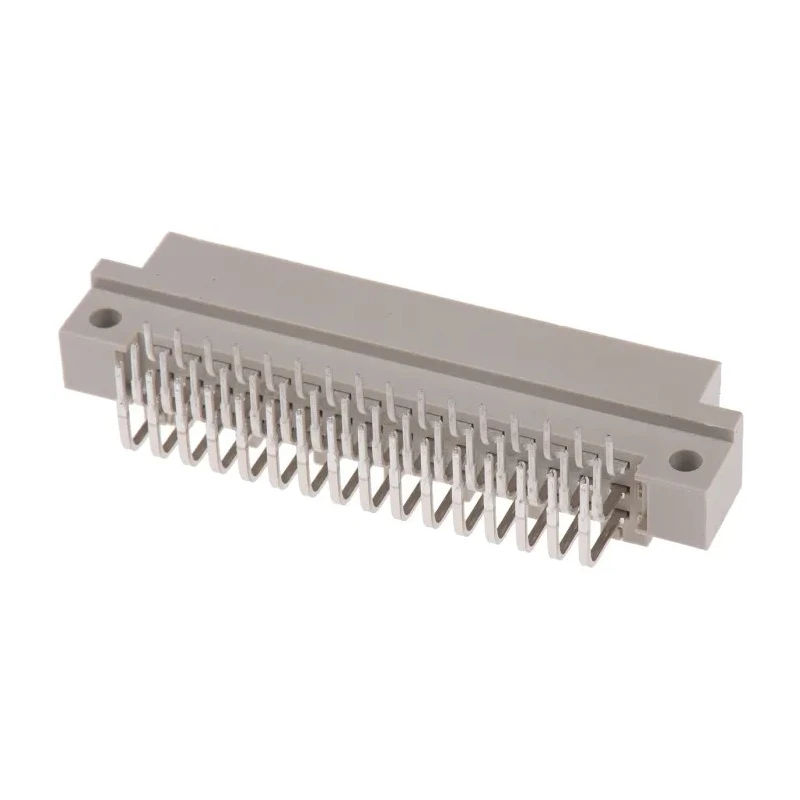

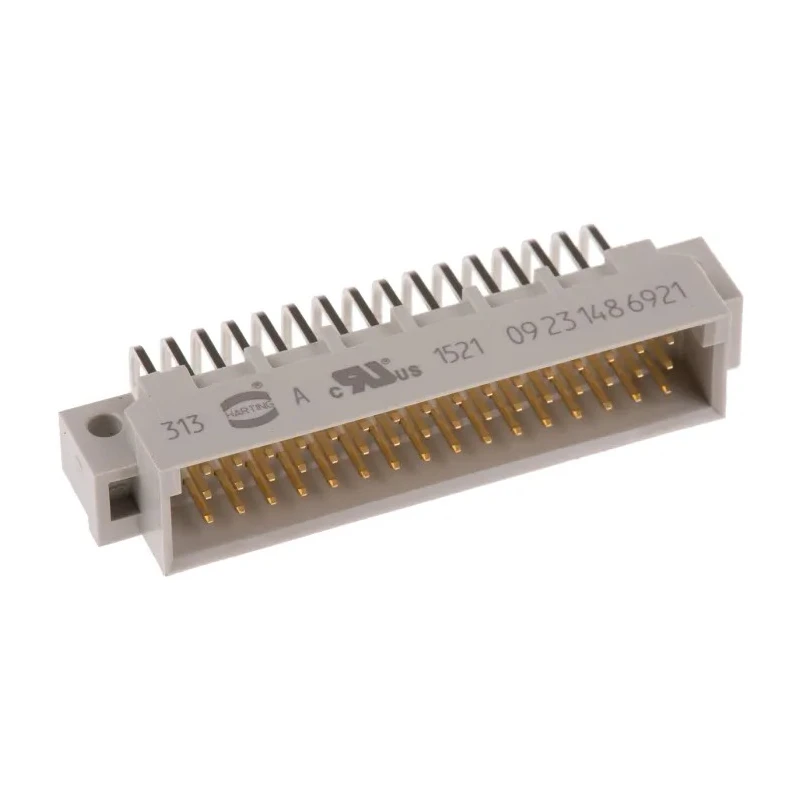

HARTING DIN 41612 48 Way 2.54 mm Pitch, Type Through Hole, Type C/2, Solder Class C2, 3 Row Male, Right Angle 09231486921

The HARTING 09231486921 DIN 41612 Connector is a high-performance 48-way male connector featuring a 2.54 mm pitch and a right-angle body orientation. Designed for through-hole mounting and solder termination, it offers secure, durable connections essential for industrial, telecommunications, automation, and medical applications. This connector type supports high-density wiring schemes with its 3-row layout and type C/2 sub-type classification.

Constructed with a robust polybutylene terephthalate thermoplastic housing, this connector provides mechanical resilience and environmental stability. Its gold-plated copper alloy contacts reduce oxidation and enhance conductivity, ensuring reliable signal transmission over extended periods. The connector is rated to operate within extreme temperatures ranging from -55°C to +125°C, accommodating both cold and hot environments typically encountered in industrial and electronic systems.

Key features include a 2A current rating, a maximum contact resistance of 20 milliohms, and a class C2 solder termination standard, providing strong and lasting connections. The right-angle male design allows for efficient use of space on PCBs in compact electronic systems.

This connector finds application in automation control panels, telecommunications infrastructure, industrial machinery requiring high-density electrical connections, and compact medical equipment where reliability and compact form factor are critical. Its compatibility with DIN 41612 series standards guarantees integration with widely used connector systems.

48 contacts distributed in 3 rows for versatile wiring configurations. Right-angle orientation maximizes space efficiency on PCBs. Solder termination provides secure, stable electrical connections. Gold over nickel plated copper alloy contacts for superior conductivity and corrosion resistance.

Polybutylene terephthalate housing for enhanced mechanical durability. Standard 2.54 mm pitch ensures broad PCB compatibility. Extended operating temperature range from -55°C up to 125°C. Supports current up to 2 amps with low contact resistance.

Suitable for demanding industrial, laboratory, and electronic system applications. Mount type is through hole, ensuring mechanical strength and stability.

Choose the HARTING 09231486921 connector for demanding applications requiring reliable multi-contact interfacing with space-saving right-angle design. Explore more products in the DIN 41612 Connector category for complementary solutions on EnvMart.
