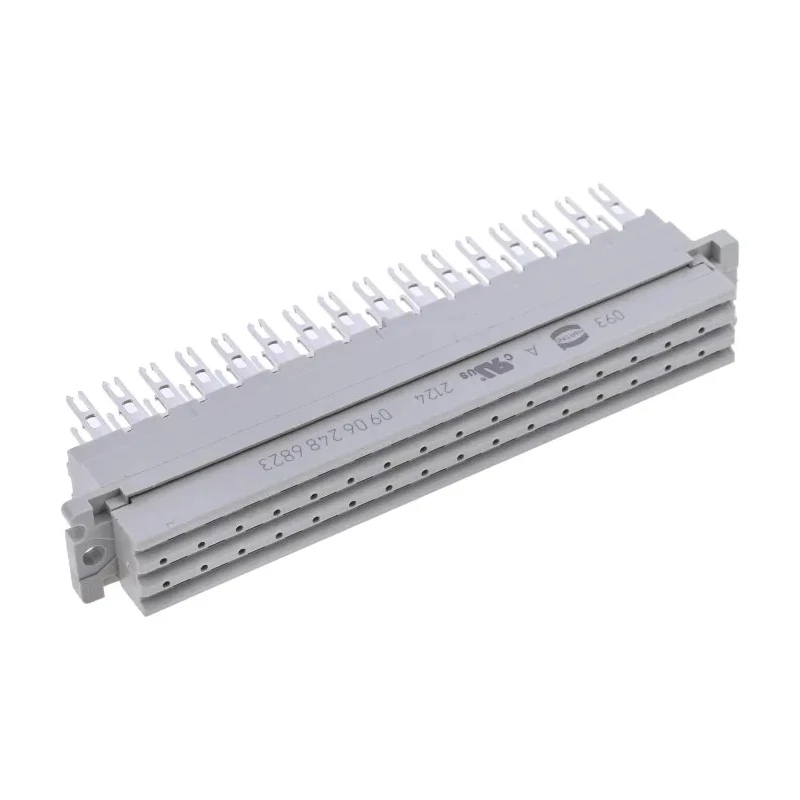

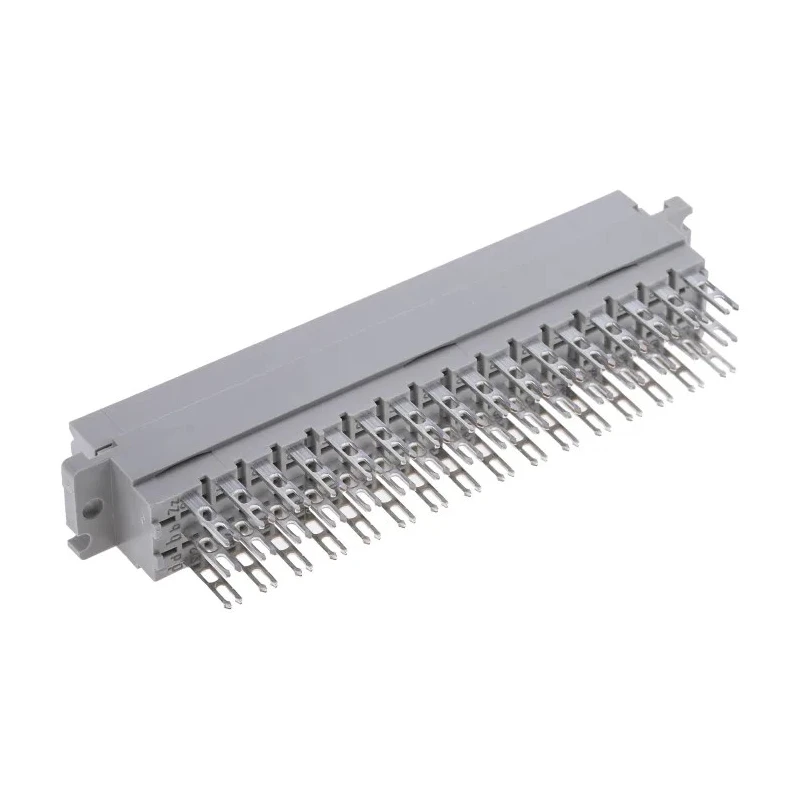

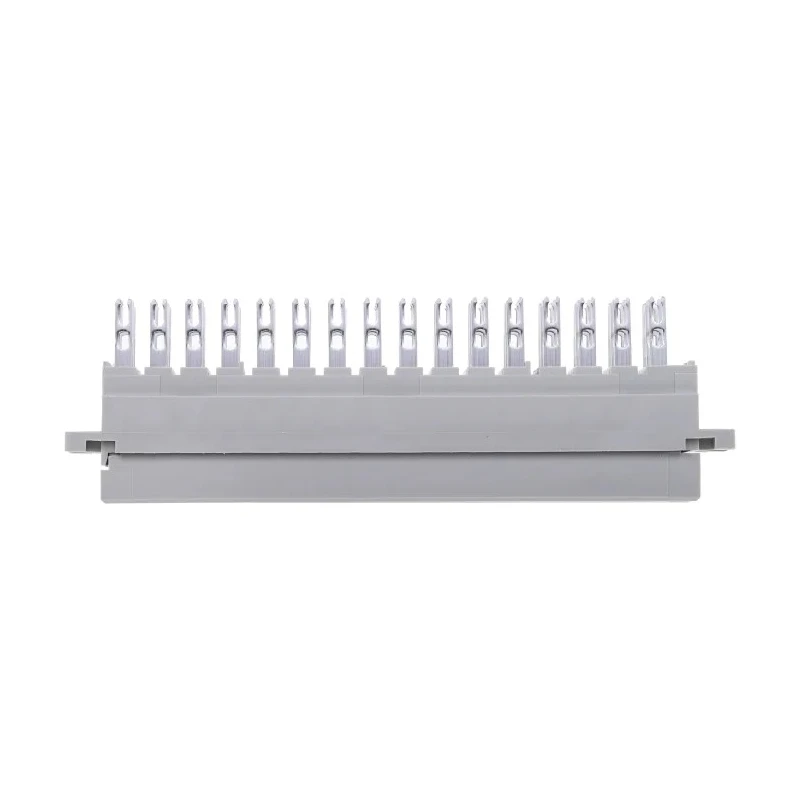

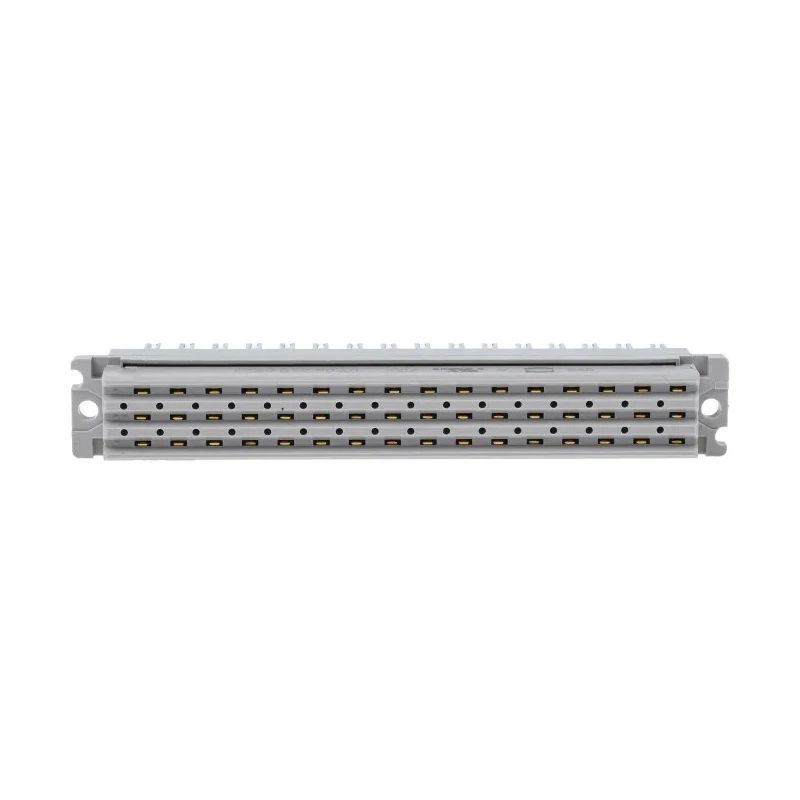

HARTING DIN 41612 48 Way 5.08 mm Pitch Type C/2 Solder Termination Class C2 3 Row Female Straight DIN 41612 09062486823

HARTING 09062486823 DIN 41612 Connector is a high-quality electrical connector designed for industrial and electronic applications requiring robust backplane or rack connections. This 48 way connector features a 5.08 mm pitch, Type C/2 solder termination, and a female straight orientation with three rows, offering a compact yet reliable connection solution.

The connector operates efficiently within a temperature range from -55°C to 125°C, making it suitable for harsh environments such as railway transportation, power supplies, and control cards. Its Class C2 contact rating supports currents up to 6A per contact with a maximum contact resistance of 15 milliohms, ensuring stable electrical performance.

Contacts are plated with gold over nickel, which enhances corrosion resistance and longevity. The copper alloy contact material offers excellent conductivity, while the housing is made of glass fibre filled polybutylene terephthalate, providing mechanical robustness and insulation.

This connector series is part of the DIN 41612 family, widely recognized for standardized electronic interconnections in industrial equipment and manufacturing systems. It is ideal for board-to-board PCB and cable-to-board applications, delivering reliable and easy-to-use connections with solder termination for durable installations.

The product is of German origin, reflecting rigorous manufacturing standards and quality control processes. It is especially recommended for applications that require high current, compact form factor, and environmental resilience.

48 contact points support robust signal or power transmission. 5.08 mm pitch ensures standardized spacing for backplane or PCB applications. Solder termination allows secure electrical connections. Female connector with three rows provides compact and versatile configuration.

Class C2 contact rating suitable for various industrial uses. Operates reliably between -55°C and 125°C temperature range. Gold over nickel contact plating ensures corrosion resistance and durability. Housing made from Polybutylene Terephthalate for mechanical strength.
