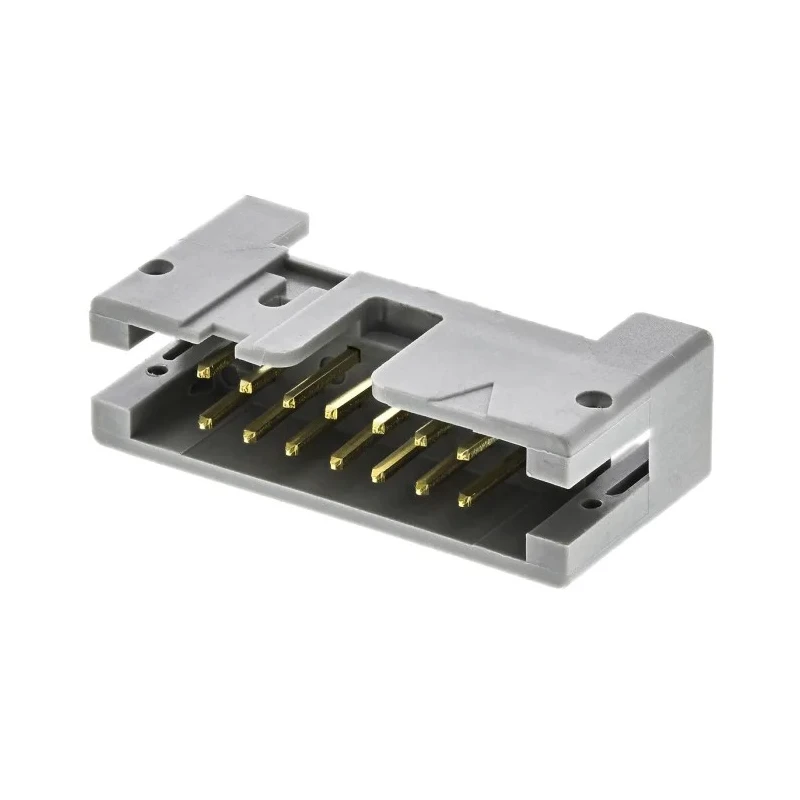

3M 14-Way IDC Connector Male for Cable, 2 Row, 4600 Series, 125V, 1A, Gold-Plated Contacts 4614-6001

Free Delivery in India | Lowest Global Shipping Charges

3M 14-Way IDC Connector Male for Cable, 2 Row, 4600 Series, 125V, 1A, Gold-Plated Contacts 4614-6001



Category IDC Connector Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	125V
Brand	3M
Orientation	Right Angle
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Copper
Series	4600
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

This IDC connector supports 14 contacts arranged in 2 rows for reliable cable connections.
It features a shrouded, right-angle design to protect pins and save space in compact installations.
Gold-plated copper contacts ensure corrosion resistance and excellent conductivity.
The housing is made from polybutylene terephthalate (PBT) with high dielectric strength.
The connector supports cable mounting with insulation-displacement contact (IDC) termination type.
Operates reliably within the temperature range of -55°C to 105°C, suitable for harsh environments.
The pitch of 2.54mm matches industry-standard flat ribbon cables and discrete wires (26-28 AWG).
Its open-end covers facilitate easy daisy-chaining and bussing applications.

Product Description

3M 4614-6001 14-Way IDC Connector Male for Cable, 2 Row from the 4600 Series is engineered for high-reliability electrical connections in demanding industrial and electronic applications. Rated for 125V and 1 ampere current, this IDC connector features 14 gold-plated copper contacts arranged in 2 rows, providing secure and corrosion-resistant conductivity.

The right-angle, shrouded design of this connector protects the pins from physical and chemical damage and optimizes space utilization in dense setups. The polybutylene terephthalate (PBT) housing offers mechanical strength and excellent dielectric properties, ensuring long-lasting performance under challenging conditions, including temperatures as low as -55°C and up to 105°C.

Suitable for use with flat ribbon cables or discrete solid and stranded wires sized between 26 and 28 AWG, this connector features a 2.54mm pitch, aligning with common industry ribbon cable standards. Its open end covers facilitate easy daisy chaining and bussing, making it ideal for complex wiring systems.

The component is cable-mountable with IDC termination type and holds a UL 94V-0 flammability rating for enhanced safety. Its robust construction and precise transmission qualities make it suitable for diverse industrial and commercial applications, including computer systems, telecommunications, and solid state drives.

This IDC connector has 14 gold-plated copper contacts to ensure outstanding electrical conductivity. The connector housing is made of sturdy polybutylene terephthalate (PBT) for durability and electrical insulation. The shrouded, right-angle mount type protects pins and optimizes cable routing.

Rated voltage is 125V and current capacity is 1A, supporting reliable operation. Operating temperature range from -55°C up to 105°C suits harsh industrial environments. The pin pitch is 2.54mm, compatible with standard ribbon cables and wires.

This 3M connector is a dependable choice for electronic assemblies requiring robust IDC Connectors with durable materials and precise electrical characteristics. Explore more 3M connectors and electronic components on EnvMart to find the right solution for your industrial wiring needs.
