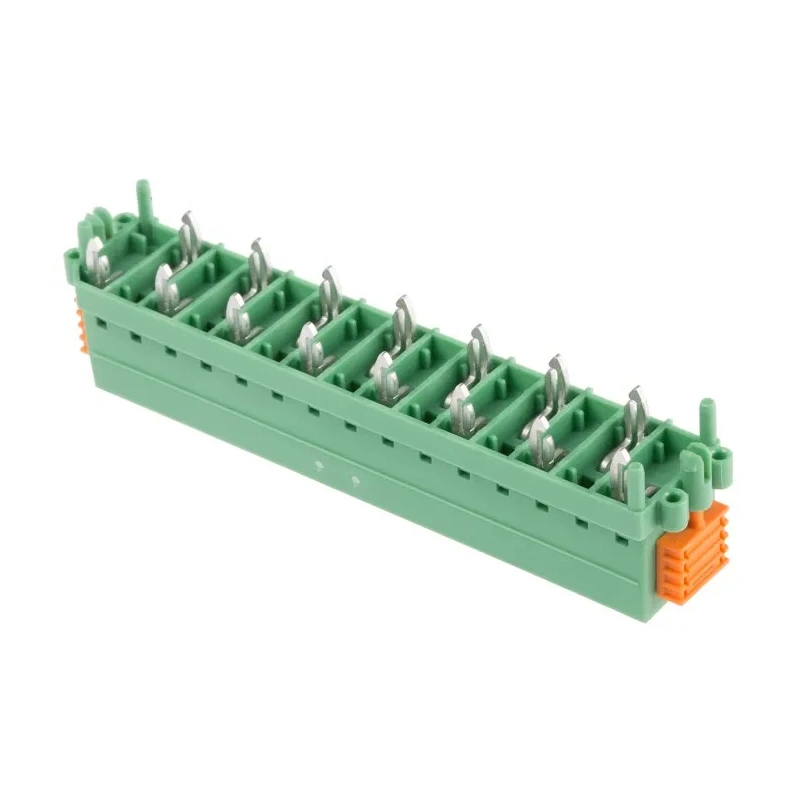

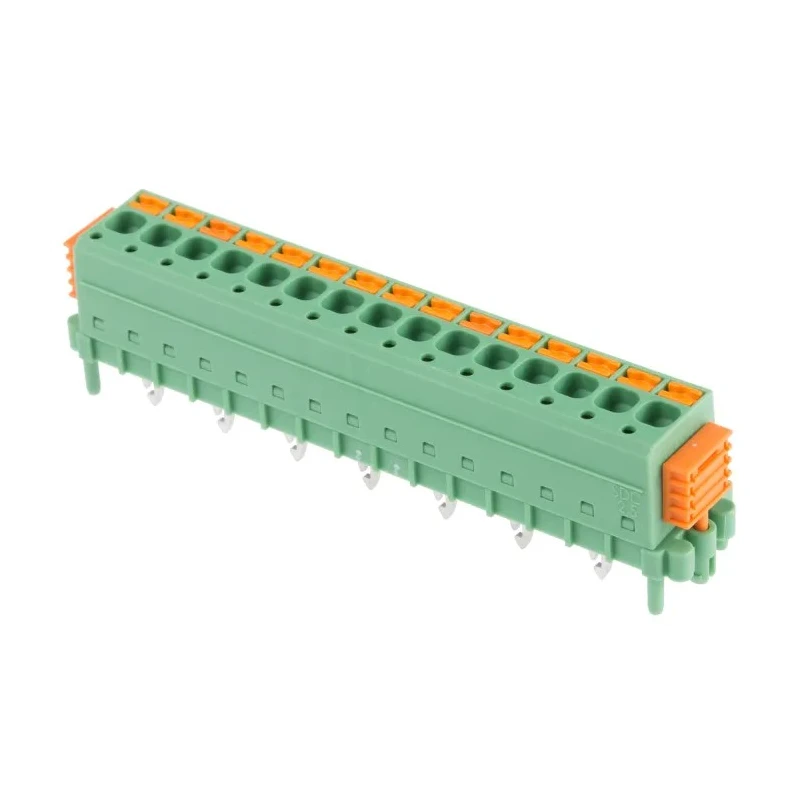

Phoenix Contact SDC 2.5/15-PV-5.0-ZB Series Straight PCB Terminal Block, 15 Contacts, 5 mm Pitch, 12A Current 1864163

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact SDC 2.5/15-PV-5.0-ZB Series Straight PCB Terminal Block, 15 Contacts, 5 mm Pitch, 12A Current 1864163

Name: Phoenix Contact SDC 2.5/15-PV-5.0-ZB Series Straight PCB Terminal Block, 15 Contacts, 5 mm Pitch, 12A Current 1864163
Brand: PHOENIX CONTACT
SKU: 139047



Category PCB Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Orientation	Straight
Current	12A
Model	1864163
Housing Material	Polyamide
Series	SDC 2.5/15-PV-5.0-ZB
Number of Rows	1
Pitch	5mm
Standards/Approvals	UL Recognised, EU RoHS, cULus Recognised
Number of Contacts	15

Key Features

This terminal block integrates SKEDD push-in spring contact technology for solderless PCB mounting.
Supports a nominal wire size of 2.5 mm² providing reliable electrical connection.
Features a secure locking mechanism between housing and PCB for vibration resistance.
Offers space-saving design suitable for compact electronics and PCB assemblies.
Complies with UL Recognised, cULus Recognised, and EU RoHS standards.
Operates reliably at voltages up to 320V AC/DC in harsh industrial environments.
Ideal for a wide range of applications including automotive, industrial electronics, and machine construction.
Constructed with durable polyamide housing material for robust performance.

Product Description

Phoenix Contact 1864163 is a straight PCB Terminal Block from the SDC 2.5/15-PV-5.0-ZB series, designed with 15 contacts and a 5 mm pitch. It is rated for a nominal current of 12A and operates at voltages up to 320V, making it suitable for demanding electrical and industrial applications.

This terminal block incorporates SKEDD technology, an innovative push-in spring contact system that enables easy, tool-free installation onto PCBs without soldering or press fitting. This saves processing time and eliminates the need for special machinery. The locking mechanism between the housing and PCB enhances vibration resistance, ensuring secure and durable connections in harsh environments.

The polyamide housing material provides electrical insulation and mechanical stability, supporting reliable operation in automotive, consumer electronics, industrial electronics, machine construction, control cabinets, power tools, white goods, solar power industry, and medical systems.

By eliminating additional socket bases or mating parts, this single-piece connector reduces PCB component count and contributes to space savings and longer PCB life due to the absence of thermal processing steps like soldering.

SKEDD push-in spring contact technology for solderless, efficient mounting. Nominal wire size of 2.5 mm² supporting up to 12A current. Secure locking mechanism for vibration-resistant connections. Space-saving design reducing PCB components and assembly time.

Compliant with UL, cULus, and EU RoHS standards for safety and environmental considerations. Polyamide housing for durability and insulation. Suitable for varied industrial, automotive, and medical applications. Reduces thermal stress on PCBs increasing operational lifespan.

Choose Phoenix Contact SDC 2.5/15-PV-5.0-ZB terminal blocks for reliable, space-efficient PCB connections in commercial and industrial electronic assemblies. Explore more Phoenix Contact products and accessories at EnvMart for your PCB connectivity needs.
