Hirose FunctionMAX FX10 Series Straight Surface PCB Socket 2 Row 0.5 mm Pitch Solder

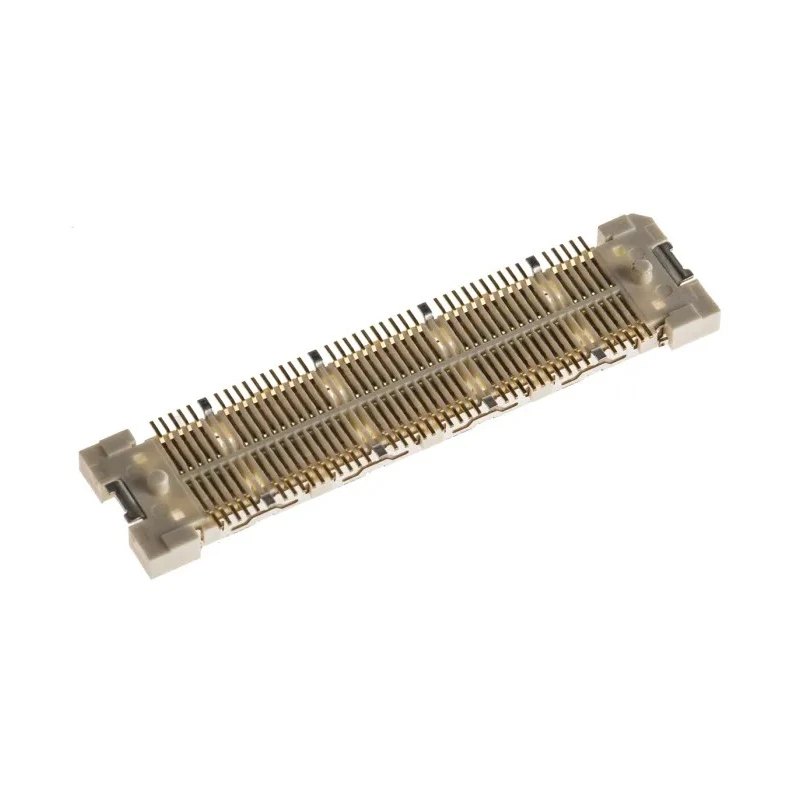

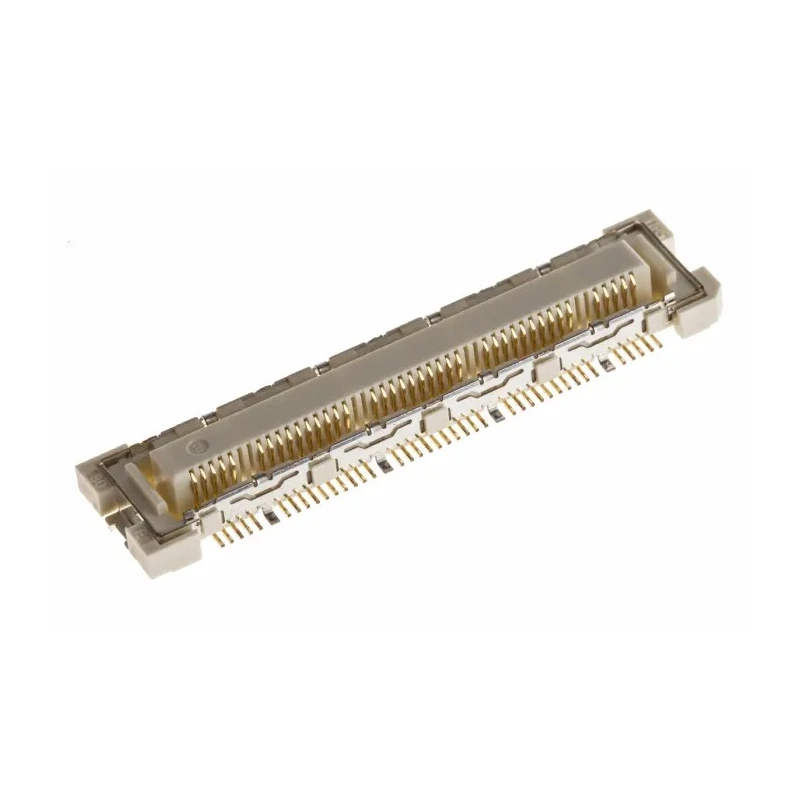

Hirose FX10A-80S/8-SV(91) is a high-performance PCB Socket from the FunctionMAX FX10 Series.

The connector uses Liquid Crystal Polymer housing material and includes bronze contact material plated with gold to ensure durable and low-resistance electrical connections. It supports a current rating of 300 mA and voltage capacity of 50 V, operating reliably within a temperature range from -55°C to 85°C.

Key to its functionality is the ground plate that is fitted on both sides of the connector, enhancing grounding capability and signal integrity. This ground plate includes SMT terminals which are soldered directly onto the PCB, while metal mounting fittings provide increased mechanical stability and robust mounting strength. The signal and ground contacts are arranged in a 10:1 ratio to minimize crosstalk and stabilize grounding, essential for maintaining high-speed signals up to 15+ Gbit/s.

This connector is ideal for high-density PCB applications including industrial controllers, medical equipment, servers, smart meters, base station transceivers, measurement equipment, and programmable logic controllers (PLCs). The compact 0.5 mm pitch and stacking height of 4 mm allow for efficient board-to-board stacking solutions.

Guided by the FunctionMAX brand promise, this FX10 series connector offers a balance of high-speed performance and maximum function integration, matched to the requirements of modern industrial and telecom environments.

Excellent grounding performance and electrical efficiency. Supports data transmission rates above 15 Gbit/s. Compact 0.5 mm pitch suitable for high-density applications. Ground plate present on both connector sides for signal enhancement.

10:1 signal-to-ground contact ratio reduces noise and crosstalk. Metal fittings increase PCB mounting reliability and solder strength. SMT grounding terminals provide firm PCB mounting. Guideposts ensure precise connector alignment on the PCB.

Stacking height of 4 mm enables compact board stacking.

This Hirose PCB Socket is manufactured in Indonesia and designed specifically for industrial, telecommunications, and commercial electronic assembly applications. It ensures robust and reliable board-to-board electrical connectivity in demanding environments.

Explore the full range of PCB connectors and sockets available for varied industrial and electronic applications on EnvMart to find compatible components and complete your project requirements.
