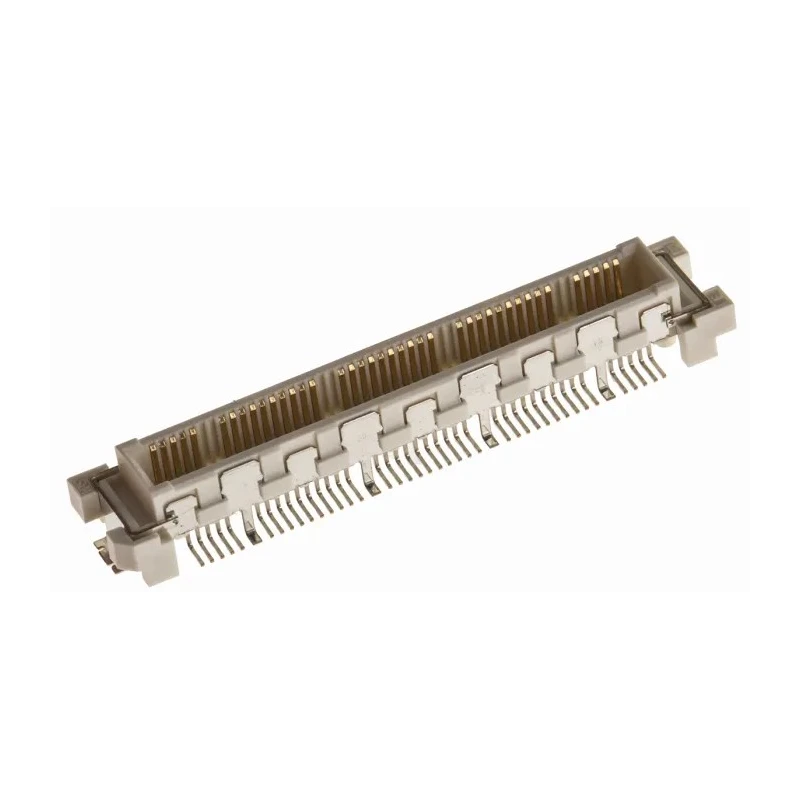

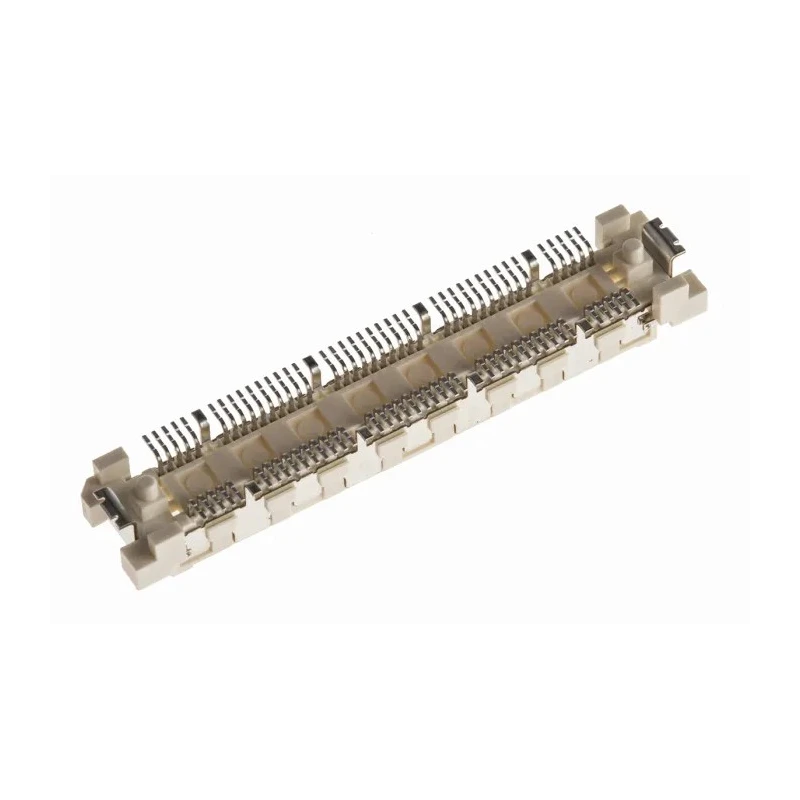

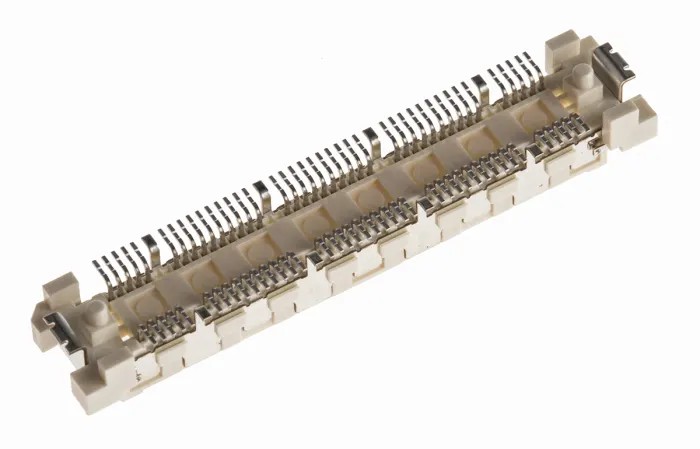

Hirose FunctionMAX FX10 Series Straight Surface PCB Header, 88 Contacts, 0.5 mm Pitch, 2 Rows, Shrouded
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | FX10 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| 10 | 1 signal to ground ratio for stabilised grounding and reduction in crosstalk |
| Contact Plating | Gold |
| Number of Contacts | 88 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a 0.5 mm pitch and 2 rows with a total of 88 gold-plated phosphor bronze contacts.
- Constructed with a liquid crystal polymer housing providing durability and electrical insulation.
- Supports currents up to 300mA and voltage rating of 50V for low power industrial circuits.
- Straight orientation with surface mount type for easy PCB installation.
- Shrouded design enhances contact protection and alignment during connector mating.
- Equipped with metal mounting fittings for increased PCB retention and solder strength.
- Includes ground plates on both sides to improve grounding and reduce crosstalk in high-frequency signals.
- Operating temperature range from -10°C to 60°C suitable for varied environments.
Product Description
Hirose FX10A-80P/8-SV1(91) PCB Header from the FunctionMAX FX10 Series is a straight surface mount board-to-board connector designed for high-density PCB applications requiring excellent electrical and grounding performance. Its compact 0.5 mm pitch combined with 2 rows and 88 contacts enables reliable high-speed data transmission up to 15+ Gbit/s, suited for advanced industrial market needs.
The connector’s housing is made from durable liquid crystal polymer, offering strong electrical insulation and mechanical robustness. Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance, ensuring long service life. The shrouded design protects the contacts from damage and ensures precise alignment.
FunctionMAX FX10 connectors include ground plates on both connector sides enhancing grounding capability and reducing signal interference by maintaining a 10:1 signal to ground contact ratio. Metal mounting fittings at connector ends add PCB retention strength and additional solder robustness.
Operating temperature range from -10°C to 60°C allows use in various industrial and commercial environments. This connector is ideal for applications such as medical devices, industrial motor controllers, servers, measurement instruments, smart metering devices, base station transceivers, and programmable logic controllers (PLCs).
Compact 0.5 mm pitch spacing for high-density PCB applications. 88 contact shrouded male header with gold plating. High-speed data transmission of 15+ Gbit/s. Ground plates provide improved signal integrity and grounding.
Metal fittings increase PCB retention and solder strength. Suitable for industrial automation, telecommunications, and medical equipment.
The FunctionMAX brand represents Hirose’s commitment to high-performance board-to-board connectors optimized for industrial market usage, combining compact design, electrical performance, and mechanical reliability. This product supports advanced technology integration in demanding industrial and commercial equipment.
Explore more Hirose connectors and other high-quality PCB Headers in the Electronics Components category at EnvMart for your electronics manufacturing or maintenance needs.
