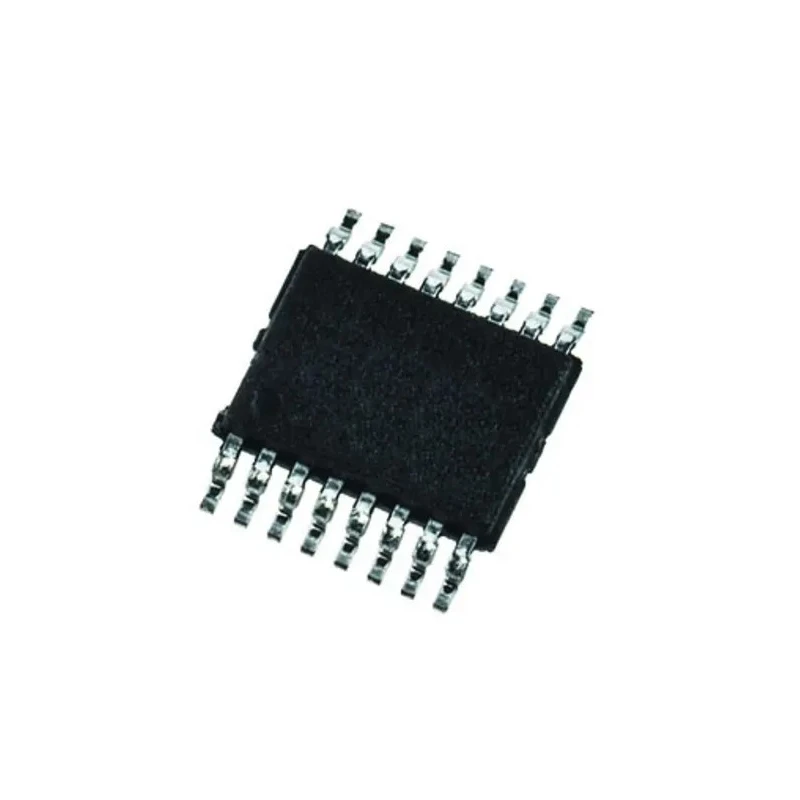

Infineon MOSFET Gate Driver 1 Output 2.4 A 16-Pin DSO 5.5V Surface Mount 1ED020I12F2XUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver 1 Output 2.4 A 16-Pin DSO 5.5V Surface Mount 1ED020I12F2XUMA1

Name: Infineon MOSFET Gate Driver 1 Output 2.4 A 16-Pin DSO 5.5V Surface Mount 1ED020I12F2XUMA1
Brand: Infineon
SKU: 138880
Price: 4 USD
Availability: InStock



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	2.34mm
Length	10.34mm
Model	1ED020I12F2XUMA1
Width	7.52mm
Mount Type	Surface
Series	1ED020I12-F2
Output Current	2.4A
Maximum Operating Temperature	105°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Number of outputs	5
Rise Time	800ns
Pin Count	16
Minimum Supply Voltage	5.5V
Number of Drivers	1
Fall Time	600ns
Driver Type	MOSFET

Key Features

Designed for driving MOSFETs in switching applications.
Includes 5 output pins enabling precise control.
Wide operating temperature range from -40°C to 105°C.
Fast switching with 600 ns fall time and 800 ns rise time.
Compact device dimensions suitable for surface mount PCB assembly.
Operates with a minimum and maximum supply voltage of 5.5 V.
Offers isolated input-output voltage for improved circuit reliability.
Ideal for AC motor and brushless DC motor drive applications.

Product Description

Infineon 1ED020I12F2XUMA1 MOSFET Gate Driver is a specialized power management IC designed for efficient and reliable driving of MOSFET and IGBT transistors in power electronics applications. This driver features a single isolated channel capable of delivering 2.4 A peak output current, which ensures effective gate charging and discharging, minimizing switching losses and improving overall system performance.

Packaged in a compact 16-pin DSO surface mount outline, the device occupies minimal PCB space while delivering robust performance. Its operating voltage is fixed at 5.5 V, suitable for typical low-voltage power conversion systems.

The gate driver supports applications such as AC motor and brushless DC motor drives, providing isolated input-to-output voltage for enhanced noise immunity and protection. Its fast switching characteristics, with 600 ns fall time and 800 ns rise time, enable high-frequency operation, making it compatible with various industrial and commercial electronics designs.

The device is rated for operation from -40°C to 105°C, covering extended temperature ranges common in automotive and industrial environments. It is surface mounted for easy assembly in automated manufacturing lines.

Designed for driving MOSFETs in switching applications. Includes 5 output pins enabling precise control. Wide operating temperature range from -40°C to 105°C. Fast switching with 600 ns fall time and 800 ns rise time. Compact device dimensions suitable for surface mount PCB assembly.

Operates with a minimum and maximum supply voltage of 5.5 V. Offers isolated input-output voltage for improved circuit reliability. Ideal for AC motor and brushless DC motor drive applications. Single driver unit in the 1ED020I12-F2 series with surface mount package.

This Infineon MOSFET Gate Driver is essential for power electronics professionals seeking reliable gate driving solutions for motor control and power management in industrial, automotive, and manufacturing systems. Discover this product and more in the Power Management ICs category on EnvMart for your specialized electronic design needs.
