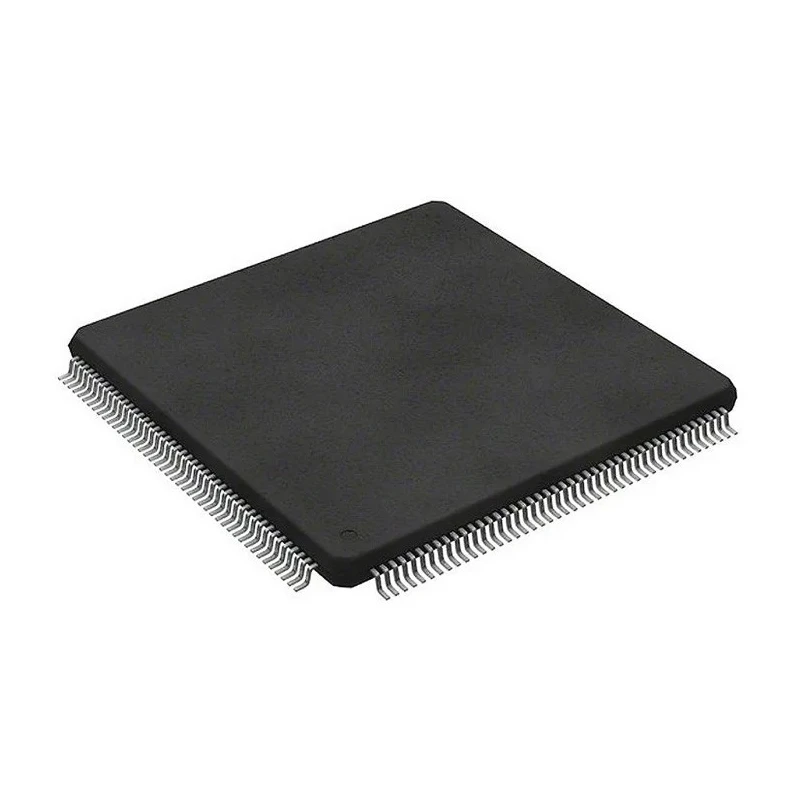

Infineon 16-bit C166 XE166 Microcontroller with 100 MHz Clock, 1.6MB FLASH, 176-Pin LQFP XE169FH200F100LABKXQSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.4mm |
| Length | 24mm |
| Model | XE169FH200F100LABKXQSA1 |
| Width | 24mm |
| Mount Type | Surface |
| Series | XE166 |
| Maximum Operating Temperature | 125°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 112kB |
| Interface Type | Serial |
| Pin Count | 176 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 3V |
| Device Core | C166 |
| Program Memory Size | 1.6MB |
| Maximum Clock Frequency | 100MHz |
| Number of Programmable I/Os | 150 |
| Number of Timers | 2 |
| Instruction Set Architecture | DSP, RISC, CISC |
| ADCs | 30 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates on a maximum supply voltage of 5.5V and minimum of 3V.
- Includes 112kB RAM and 30 ADC channels with 10-bit resolution.
- Features 150 programmable I/Os and two timers for flexible control.
- Designed for operation between -40°C and 125°C for robust industrial use.
- Utilizes a DSP, RISC, and CISC instruction set architecture for superior performance.
- Package dimensions are 24mm length, 24mm width, and 1.4mm height.
- Supports serial interface communication and flash program memory type.
- Has a maximum power dissipation of 1W ensuring efficient thermal management.
Product Description
Infineon XE169FH200F100LABKXQSA1 is a high-performance 16-bit C166 microcontroller from the XE166 series, featuring a 100 MHz maximum clock frequency and 1.6MB FLASH program memory. It comes in a 176-Pin LQFP surface-mount package with dimensions of 24 x 24 x 1.4 mm, designed for efficient integration in electronics applications.
This microcontroller supports a 16-bit data bus width, 112kB RAM, and a rich peripheral set including 150 programmable I/O pins and 30 channels of 10-bit ADCs, making it ideal for industrial, automotive, mass storage, and communication systems requiring real-time control.
The device operates within a wide temperature range from -40°C to 125°C and supports a supply voltage range from 3V minimum to 5.5V maximum, with a power dissipation limit of 1W ensuring reliable operation under demanding conditions.
The XE169FH200F100LABKXQSA1 possesses versatile architecture combining DSP, RISC, and CISC instruction sets, offering high processing efficiency for complex embedded designs. It also supports serial interface communication commonly used in embedded networking.
Operates at high clock frequency of 100 MHz for fast processing. Large program FLASH memory size of 1.6MB suitable for complex applications. Ample RAM of 112kB to handle data-intensive tasks. Wide operating temperature range supports harsh environments.
Extensive I/O pins and ADC channels increase connectivity and sensing options. Compact 176-pin LQFP package supports surface-mount technology. Efficient power dissipation with 1W max power to prevent overheating. Instruction set including DSP, RISC, and CISC for flexible programming.
This microcontroller is suitable for industrial automation, automotive electronics, communication devices, and embedded control systems requiring high reliability and advanced performance.
Explore the Electronics & Electricals category for more Infineon Microcontrollers and semiconductor solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 100 MHz.
It has a program memory size of 1.6MB.
This model features 150 programmable I/Os.
The operating temperature range is from -40°C to 125°C.
It comes in a 176-Pin LQFP package.
This microcontroller includes 112kB of RAM.
The maximum supply voltage for this model is 5.5V.
It supports serial interface communication.
There are 30 ADC channels with 10-bit resolution available in this microcontroller.
The maximum power dissipation of this model is 1W.
It utilizes a DSP, RISC, and CISC instruction set architecture.
The height of the microcontroller package is 1.4mm.
