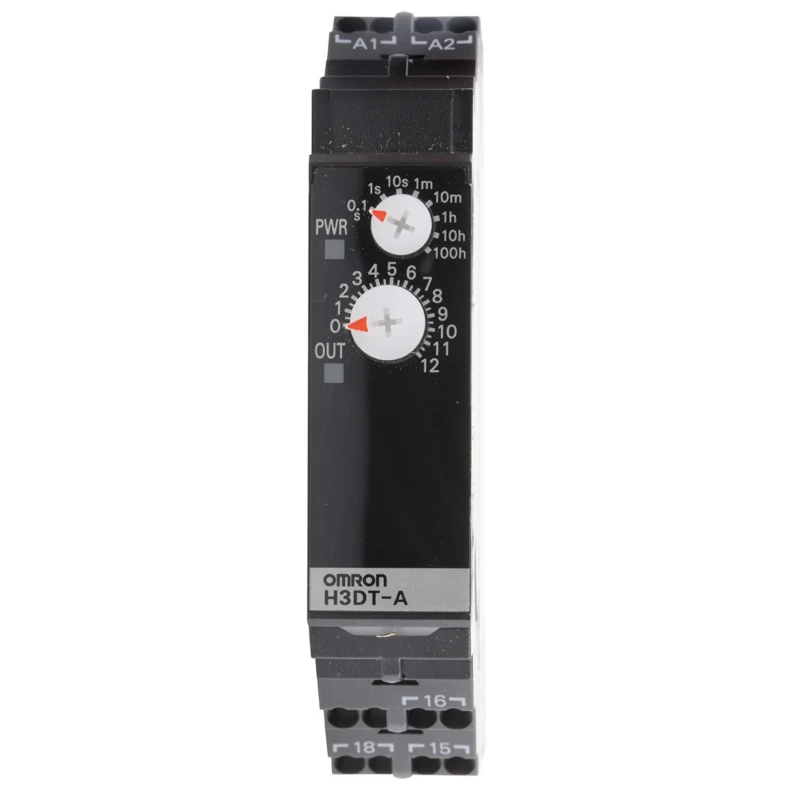

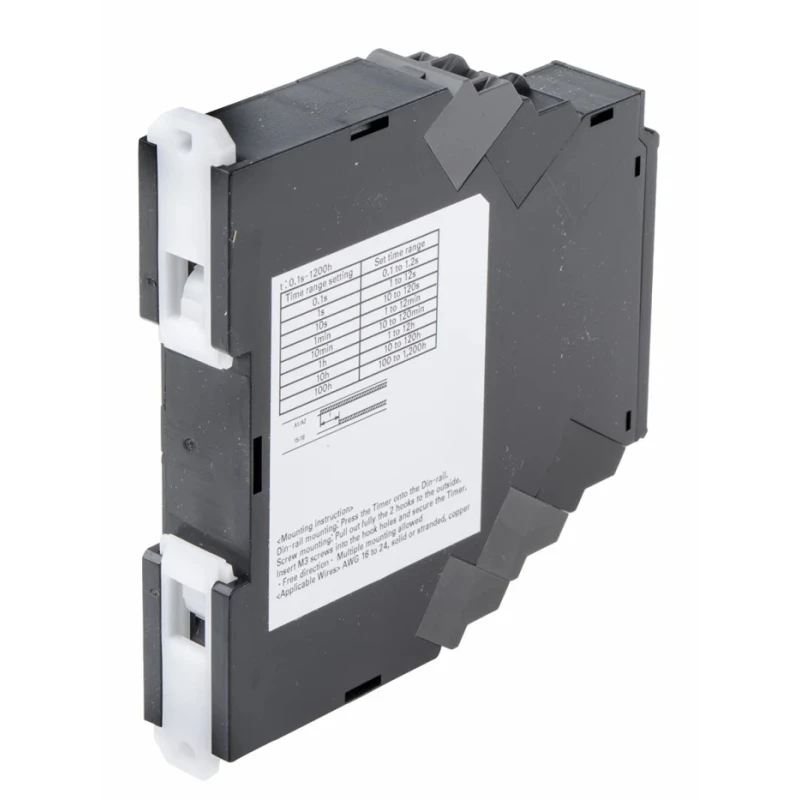

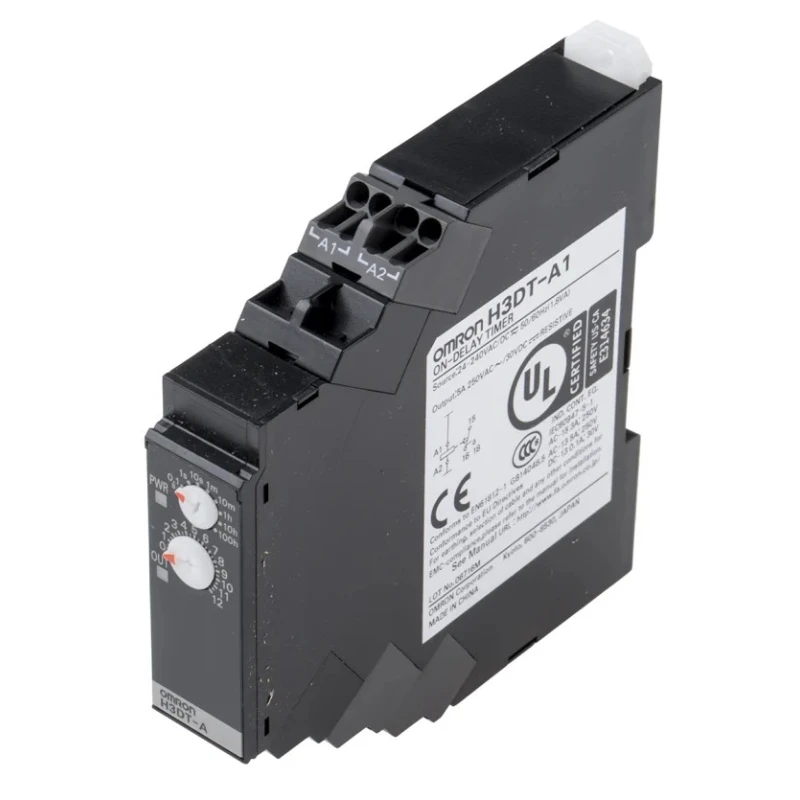

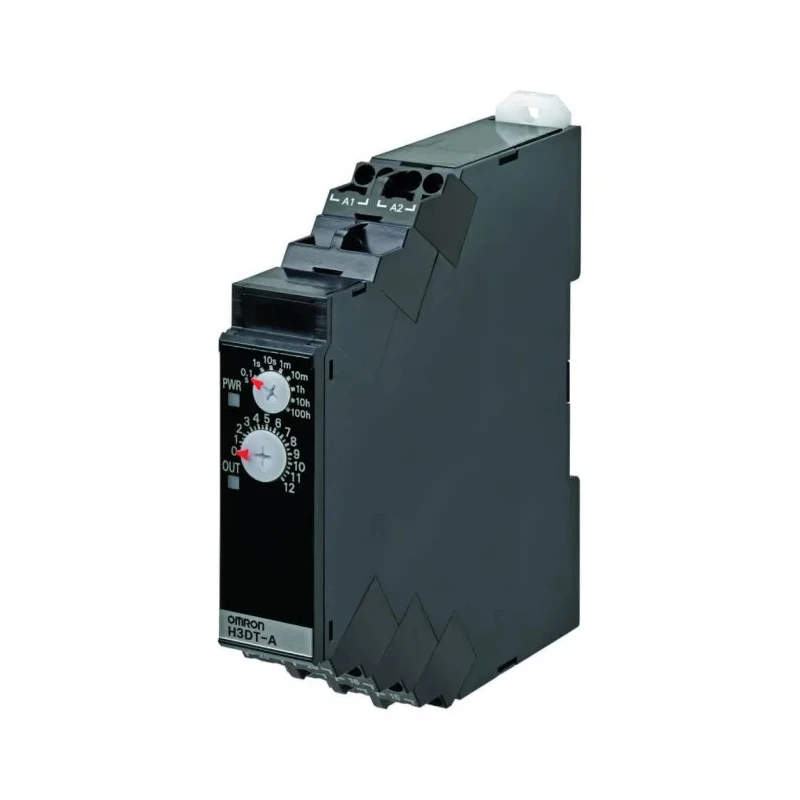

Omron DIN Rail Timer Relay, 2-Contact, 240 V dc 24V ac, 240 V ac, 0.1 s to 1200 h, ON Delay, SPDT Switch H3DT

Omron H3DT DIN Rail Timer Relay H3DT is designed for automation and control in industrial electrical systems. It features a 2-contact SPDT switch and operates on a broad supply voltage range from 24 V AC/DC up to 240 V AC/DC. The relay provides an adjustable time range from 0.1 seconds to 1200 hours with a single ON Delay timer function, enabling accurate and flexible timing control for machinery and process management.

This timer relay is engineered for efficient operation within temperature limits from -20°C to +60°C and mounts easily on DIN rails thanks to its compact dimensions of 90 mm width, 100 mm height, and 17.5 mm depth. The push-in terminal technology facilitates fast and reliable wiring connections, reducing installation time and panel space.

With a maximum contact current capacity of 5 amperes and a 250 V switching voltage rating, the H3DT relay supports a wide range of industrial and HVAC applications including timing control in manufacturing lines, lighting energy management, and process automation systems. The solid-state design minimises power consumption by up to 60%, reducing heat buildup within control panels.

The single timer function provides simple and effective timing operations. SPDT contacts offer versatile switching options. The slim 17.5 mm width design saves installation space. Push-in connections accelerate wiring tasks and improve reliability.

DIN rail mounting simplifies panel assembly and maintenance. Omron H3DT series timer relays comply with RoHS and international standards including UL 508, CSA C22.2, CCC, DNV GL, EN 61812-1, and IEC 60664-1 for quality and safety assurance.

This timer relay is ideal for industrial automation, electrical control panels, HVAC systems, process control, and energy management applications. For additional options, Omron offers a range of DIN rail mount Timer Relays with diverse timing ranges and relay configurations. Browse our extensive inventory at EnvMart to find compatible Omron control components for your project requirements.
