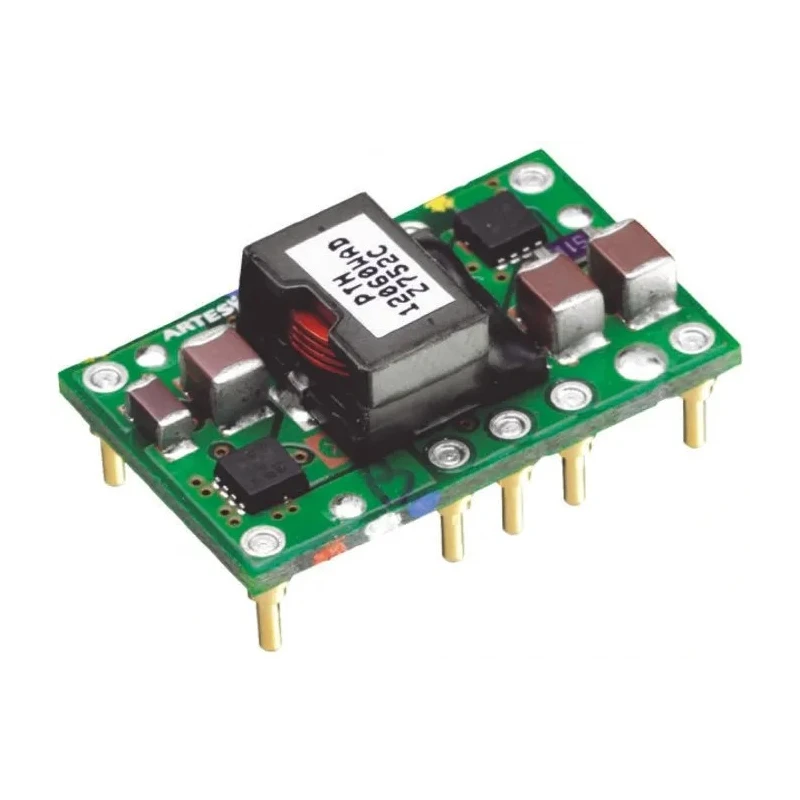

Artesyn / Advanced Energy DC/DC Converter 10A Output, 1.2/5.5 V dc Adjustable, 12V dc Input, Through Hole Mount PTH12060

Artesyn / Advanced Energy PTH12060 DC/DC Converter is a high-performance, non-isolated Point-of-Load Alliance (POLA) power supply designed for applications requiring regulated low voltage outputs from a 12V dc input source. The device supports adjustable output voltages of 1.2 V and 5.5 V dc with an output current capacity of 10 A and a maximum output power of 55 W, making it suitable for electronic components and power management systems in industrial, manufacturing, and electronic assembly environments.

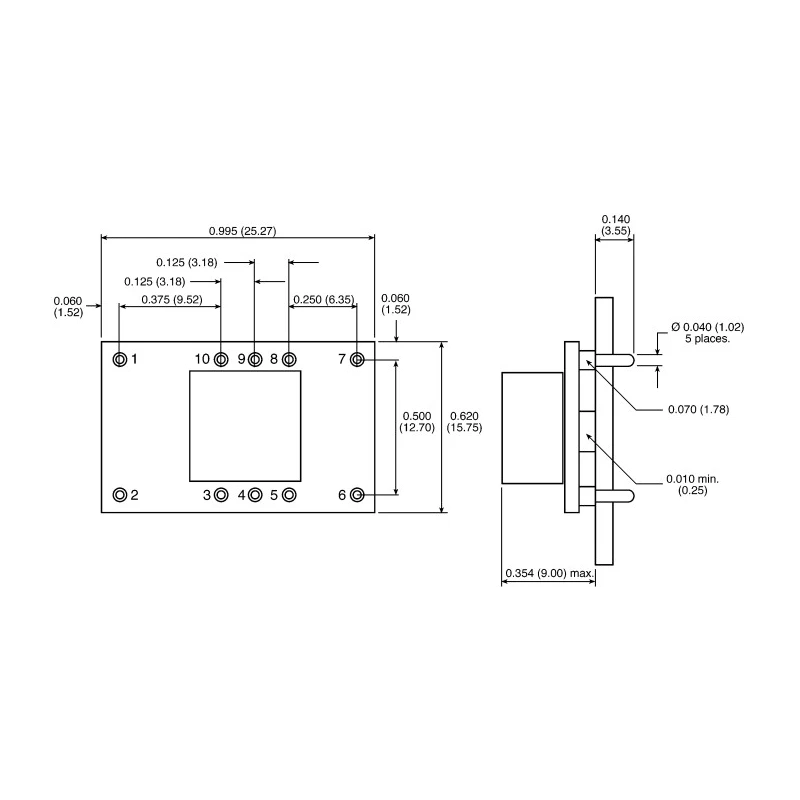

This converter employs through-hole mounting style, enabling secure and durable installation on printed circuit boards (PCB). Its design incorporates advanced features such as auto-track sequencing, margin up/down controls, pre-bias start-up capability, and output ON/OFF inhibit functionality, providing precise control and flexibility in power delivery.

With an ambient operating temperature range from -40°C to 85°C, it is well-suited for harsh conditions and extended reliability, backed by a MTBF rating exceeding 7 million hours according to Telcordia SR-332 standards. Efficiency is rated at 94%, promoting lower energy consumption without compromising performance.

Protection mechanisms include under-voltage lockout and short current protection to safeguard the device and connected equipment from electrical faults. The RoHS certification highlights its compliance with environmental and safety requirements.

Supports output voltage adjustment between 1.2 V and 5.5 V dc via external resistors. Delivers a continuous output current of 10 A and maximum power of 55 W. Through-hole mount type ensures durable PCB attachment. High efficiency of 94% reduces power loss during operation.

Wide temperature range from -40°C to 85°C suits industrial conditions. Protection features include under-voltage lockout and short current protection. Includes output ON/OFF inhibit and output voltage sense functions. RoHS compliant to meet environmental regulations.

MTBF of over 7 million hours ensures long service life. Compact size and lightweight design for space-saving installation.

This DC/DC converter is ideal for applications in power supplies, electronic devices, industrial machinery control, telecommunications, automotive electronics, and other environments requiring efficient and reliable DC voltage regulation.
