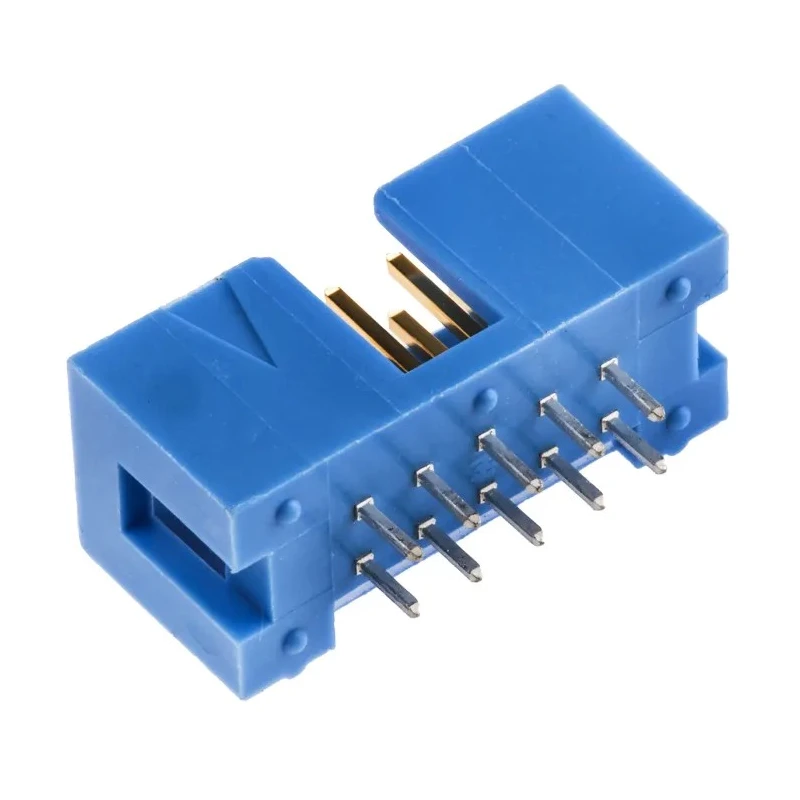

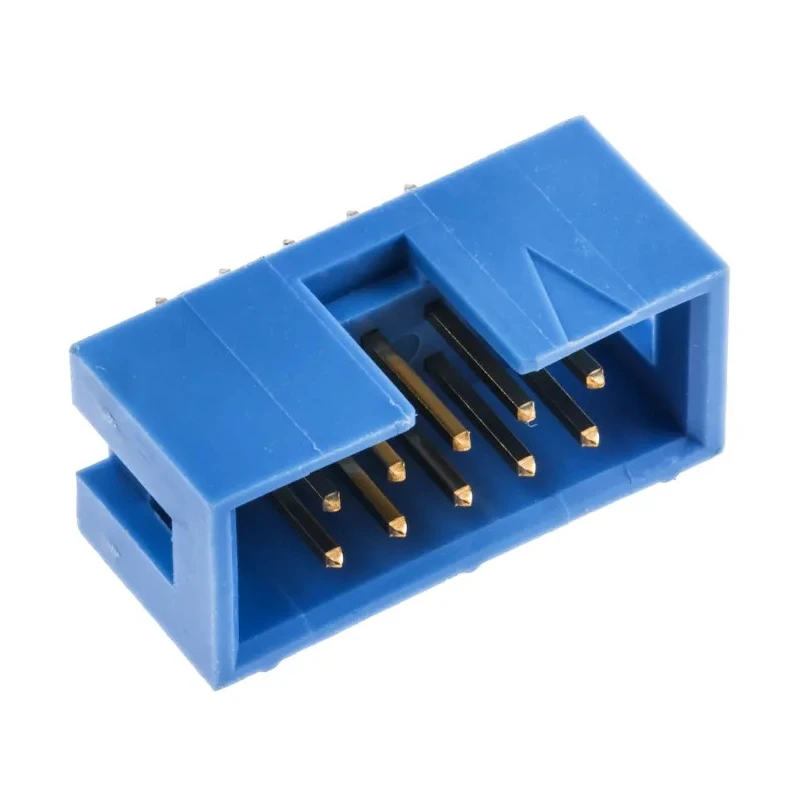

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-1761603-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
Key Features
- The connector supports a maximum current rating of 1A.
- Housing material is robust polybutylene terephthalate providing durability.
- Contact material is phosphor bronze plated with gold for corrosion resistance.
- Designed for through-hole mounting with a tail pin length of 2.6 mm.
- Operates reliably in a temperature range of -65°C to 105°C.
- Connector orientation is straight with a shrouded contact design for safety.
- Termination type is solder ensuring secure electrical connection.
- Ideal for PCB wire-to-board connector applications requiring durability and performance.
Product Description
TE Connectivity 2-1761603-3 AMP-LATCH Series Straight Through Hole PCB Header is engineered for reliable electronic interconnections in industrial, electronic, and manufacturing applications. This connector features 10 male contacts arranged in 2 rows with a 2.54 mm pitch, providing a compact and precise solution for wire-to-board connections.
The connector housing is made of durable polybutylene terephthalate, ensuring excellent mechanical and thermal stability. Contact points use phosphor bronze material plated with gold to provide superior conductivity and corrosion resistance, ensuring minimal signal loss and high reliability under demanding conditions.
This model supports a continuous current of 1 ampere and a voltage rating of 250 volts, making it suitable for typical electronic circuits and control systems. Its through-hole mount type with a tail pin length of 2.6 mm ensures strong soldering stability on printed circuit boards.
The device performs efficiently across a wide temperature range from -65°C to 105°C, enabling use in harsh environments. Its straight orientation and shrouded design enhance safety by preventing accidental contact and increasing durability during assembly and operation.
The connector is compliant with no specific standards indicated but follows industry quality expectations. Its compact pitch helps in high-density PCB designs reducing space consumption. Gold plating on contacts ensures long-lasting corrosion resistance and consistent electrical performance.
Ideal for industrial electronics, telecommunications, consumer electronics, and control equipment. The connector is part of the AMP-LATCH lineup, known for reliable latch mechanisms and secure fixing.
TE Connectivity continues to support design engineers and manufacturers with reliable PCB connectors tailored for diverse applications. Browse our range for additional AMP-LATCH components and related PCB connector products for effective electronic component sourcing on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 1 ampere.
The voltage rating is 250 volts, making it suitable for typical electronic circuits.
It is designed for through-hole mounting, ensuring strong soldering stability on printed circuit boards.
The housing is made of polybutylene terephthalate, and the contacts are phosphor bronze plated with gold for corrosion resistance.
It operates reliably in a temperature range from -65°C to 105°C.
This PCB header features 10 male contacts arranged in 2 rows.
The pitch of the contacts is 2.54 mm, allowing for compact PCB designs.
The tail pin length is 2.6 mm, which is designed for secure soldering.
It uses solder termination, ensuring a secure electrical connection.
This model features a shrouded design, enhancing safety by preventing accidental contact.
It is ideal for industrial electronics, telecommunications, consumer electronics, and control equipment.
The country of origin for this connector is India.
