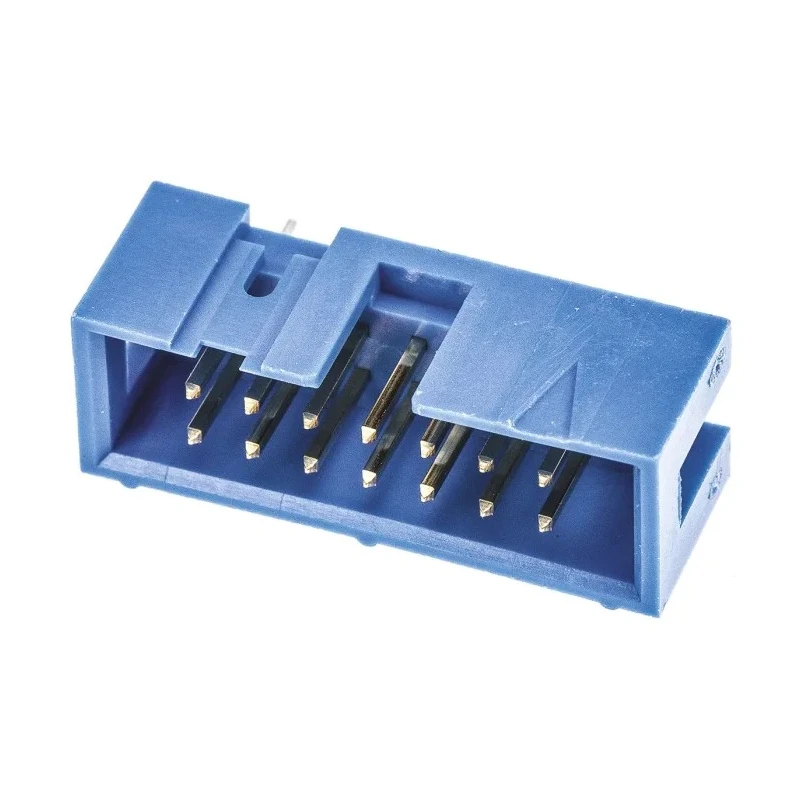

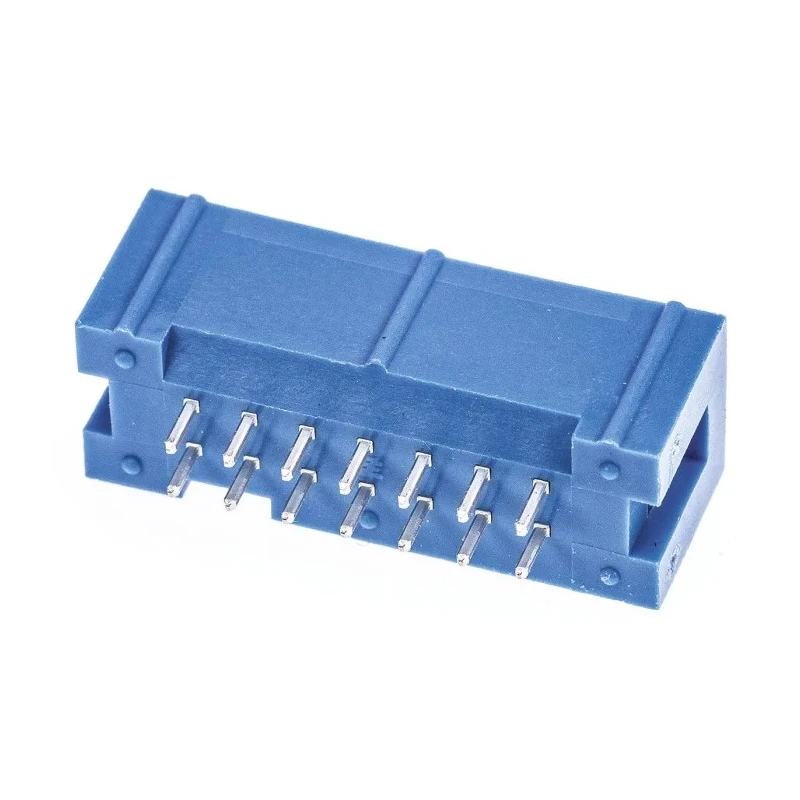

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-1761603-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
Key Features
- Features 14 male contacts configured in 2 rows for reliable signal integrity.
- Pitch between contacts is 2.54 mm ensuring compatibility with standard PCBs.
- Shrouded housing made of durable polybutylene terephthalate for protection and secure connection.
- Phosphor bronze contacts plated with gold improve conductivity and corrosion resistance.
- Designed for through-hole mounting providing mechanical stability on PCB.
- Operates in a temperature range from -65°C to 105°C suitable for various industrial environments.
- Rated for 250V voltage and 1A current capacity for low power applications.
- Contact tail pins measure 2.6 mm for secure soldering termination.
Product Description
TE Connectivity 2-1761603-5 AMP-LATCH Series straight through hole PCB header is engineered for dependable wire-to-board connectivity in industrial and electronic applications. This connector features 14 male contacts arranged in two rows with a 2.54 mm pitch, conforming to industry standards.
The housing is manufactured from polybutylene terephthalate, which offers excellent mechanical strength and temperature resistance between -65°C and 105°C. The shrouded design provides added protection against accidental contact and enhances connector mating reliability.
Contact components are made of phosphor bronze and plated with gold to maximize conductivity and resist corrosion over prolonged usage. The connector is rated for a maximum voltage of 250V and current of 1A, making it suitable for signal and low power applications.
The through-hole mounting style ensures sturdy attachment to printed circuit boards, with tail pin lengths of 2.6 mm facilitating reliable solder joints. This connector set complies with no explicit industry certifications but is designed according to TE Connectivity standards, ensuring consistent quality.
Features 14 male contacts in 2 rows with 2.54 mm pitch. Durable polybutylene terephthalate shrouded housing. Gold plated phosphor bronze contacts for optimal performance. Through-hole mount type with 2.6 mm tail pin length.
Operating temperature range from -65°C to 105°C. Voltage rating up to 250V and current rating of 1A. Ideal for industrial, electronic components, and manufacturing PCB applications.
This product belongs to the AMP-LATCH series from TE Connectivity, known for robust and secure electrical connections. Suitable for industrial environments, electronic assemblies, and manufacturing sectors requiring reliable PCB connectors.
Explore more PCB Headers and electronic connectors at EnvMart to find compatible components meeting your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch between contacts is 2.54 mm, ensuring compatibility with standard PCBs.
It features 14 male contacts arranged in 2 rows.
The maximum voltage rating is 250V, making it suitable for low power applications.
It has a current capacity of 1A, suitable for signal and low power applications.
The housing is made of polybutylene terephthalate, which offers excellent mechanical strength and temperature resistance.
It operates within a temperature range from -65°C to 105°C, suitable for various industrial environments.
This connector is designed for through-hole mounting, providing mechanical stability on the PCB.
The tail pins measure 2.6 mm, facilitating secure soldering termination.
It uses solder termination to connect to the PCB.
The contacts are made of phosphor bronze and plated with gold to improve conductivity and corrosion resistance.
This product does not have explicit industry certifications but is designed according to TE Connectivity standards.
It is suitable for industrial and electronic applications, particularly in manufacturing PCB assemblies.
