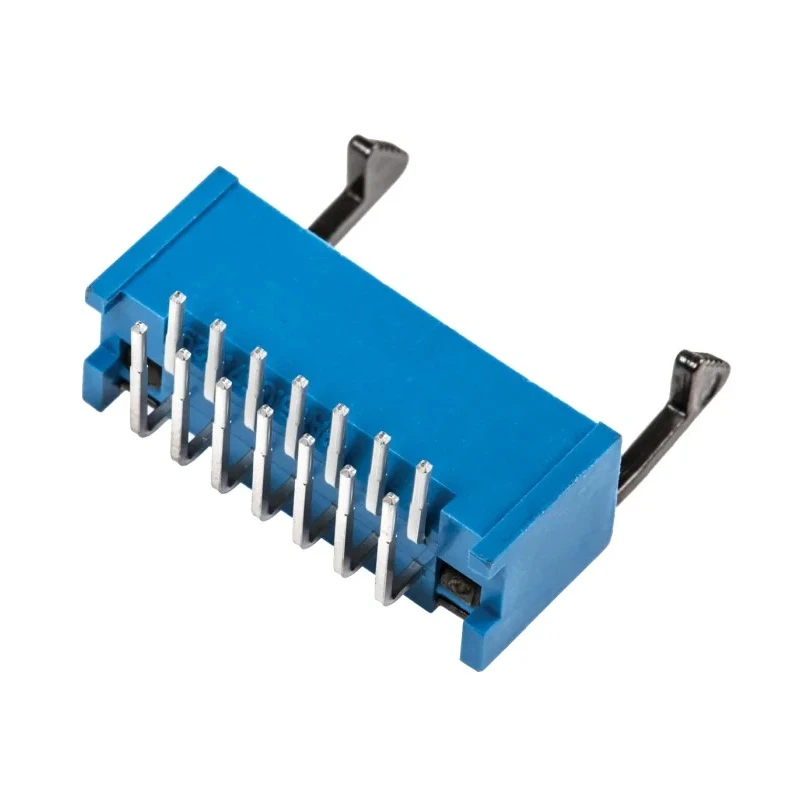

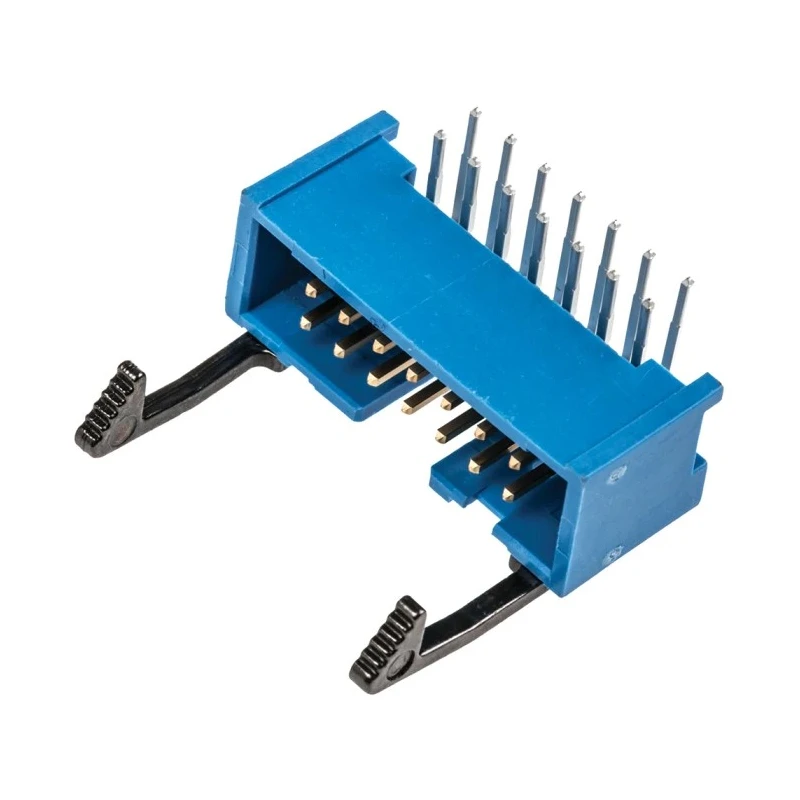

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 2-1761607-5

TE Connectivity 2-1761607-5 AMP-LATCH Series Right Angle Through Hole PCB Header offers a highly reliable wire-to-board connection characterized by 14 male contacts arranged in two rows with a 2.54 mm pitch. The connector housing is made of high-quality Polybutylene Terephthalate providing durability and insulation. Gold plating on phosphor bronze contacts ensures excellent conductivity and resistance to corrosion for long-lasting performance.

This shrouded PCB header features a right angle orientation suitable for space-constrained applications. Its through hole mount combined with solder termination delivers strong mechanical support and dependable electrical contact on printed circuit boards. The connector is equipped with ejector latches that facilitate secure mating and simple removal, incorporating military and centre polarization to prevent incorrect connections.

Rated for a current of 1A and voltage of 250V, it operates reliably within a wide temperature range from -65°C to 105°C, making it suitable for demanding electronic devices. The tail pin length of 2.6 mm offers optimized solder joint quality and mechanical stability.

Ideal applications for this PCB header include usage in PCs, business and medical equipment, storage solutions, networking devices, industrial controls, appliances, and electrical test equipment where a compact, robust wire-to-board interface is required.

The connector system supports wire-to-board connections for reliable interfacing. Housing is made of durable Polybutylene Terephthalate material. Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.

Solder termination type with through hole mount offers robust mechanical support. Operating temperature range from -65°C to 105°C suits versatile environments. Current rating of 1A and voltage of 250V ensures safe performance.

Right angle orientation and shrouded design prevent misalignment and space issues. Ejector latches with military and centre polarization enable secure and easy mating. Tail pin length of 2.6 mm for optimized soldering and mechanical fixing.
