TE Connectivity AMP-LATCH Series Right Angle Shrouded Through Hole PCB Header 26 Contacts 2.54 mm Pitch 250V 1A 2-1761605-9

Free Delivery in India | Lowest Global Shipping Charges

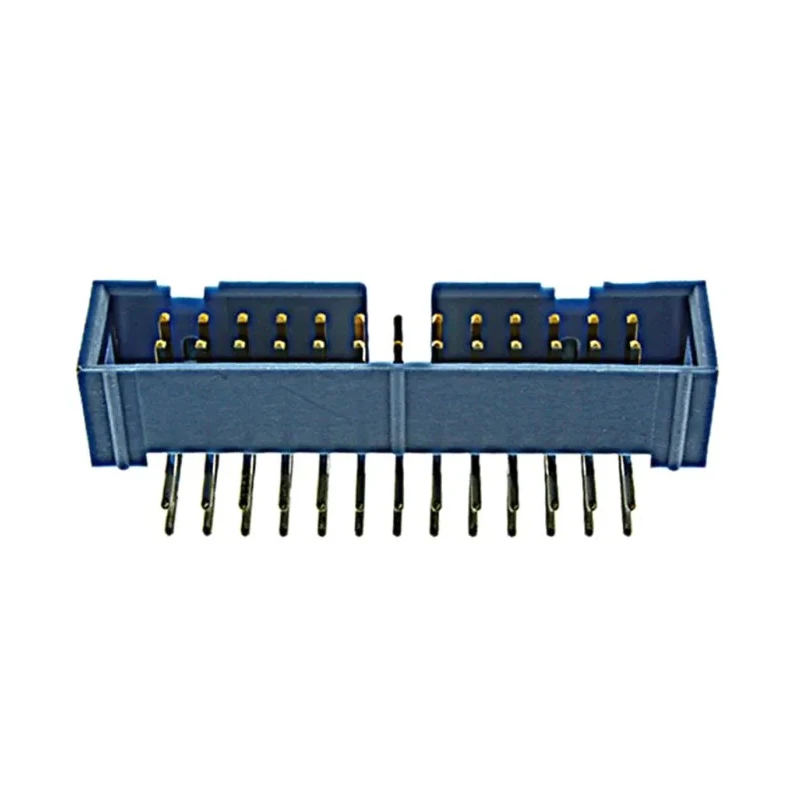

TE Connectivity AMP-LATCH Series Right Angle Shrouded Through Hole PCB Header 26 Contacts 2.54 mm Pitch 250V 1A 2-1761605-9

Name: TE Connectivity AMP-LATCH Series Right Angle Shrouded Through Hole PCB Header 26 Contacts 2.54 mm Pitch 250V 1A 2-1761605-9
Brand: TE Connectivity
SKU: 138544
Price: 11.09 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	TE Connectivity
Orientation	Right Angle
Current	1A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	AMP-LATCH
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	2.6mm

Key Features

Features gold-plated phosphor bronze contacts for excellent conductivity.
Shrouded, right angle design ensures secure connection mounted through hole.
Supports up to 1 amp current and 250 volts operating voltage.
Housing made from durable polybutylene terephthalate material.
Operates reliably between -65°C and 105°C temperature range.
Includes 26 male contacts arranged in two rows with 2.54 mm row pitch.
Termination type is solder with a 2.6 mm tail pin length for secure PCB mounting.

Product Description

TE Connectivity 2-1761605-9 AMP-LATCH Series Right Angle Shrouded Through Hole PCB Header is designed for high-reliability wire-to-board connections with 26 male contacts and 2.54 mm pitch. This connector suits industrial and electronic applications requiring compact, durable, and secure attachment to printed circuit boards.

The header features gold-plated phosphor bronze contacts for low resistance and corrosion resistance. Its polybutylene terephthalate housing delivers mechanical stability and excellent insulation. Operating from -65°C up to 105°C, it ensures dependable performance across a wide temperature range.

With a current rating of 1A and a voltage rating of 250V, the connector is suitable for moderate power applications in industrial machines, electronic devices, manufacturing equipment, and control systems. It employs a right angle orientation and shrouded design to prevent accidental contact and maintain connector integrity.

The solder termination and 2.6 mm tail pin length facilitate easy and dependable mounting on PCBs. The two row, 26 contact layout with 2.54 mm pitch provides ample connectivity in a compact footprint, complying with common PCB header standards.

Gold-plated phosphor bronze contacts ensure excellent conductivity and durability. Polybutylene terephthalate housing provides mechanical stability and insulation. Wide operating temperature range from -65°C to 105°C supports harsh environments.

Current rating up to 1 amp and voltage rating of 250 volts. Solder termination type with 2.6 mm tail pin length for reliable PCB connection. Right angle shrouded design ensures secure placement and prevents accidental contact.

Two rows of 26 male contacts with standard 2.54 mm pitch. This PCB header connector is highly suitable for applications in industrial equipment, manufacturing, electronics assembly, and HVAC control systems. Explore a wide range of TE Connectivity PCB Headers and connectors in the EnvMart catalog for your electronic component needs.
