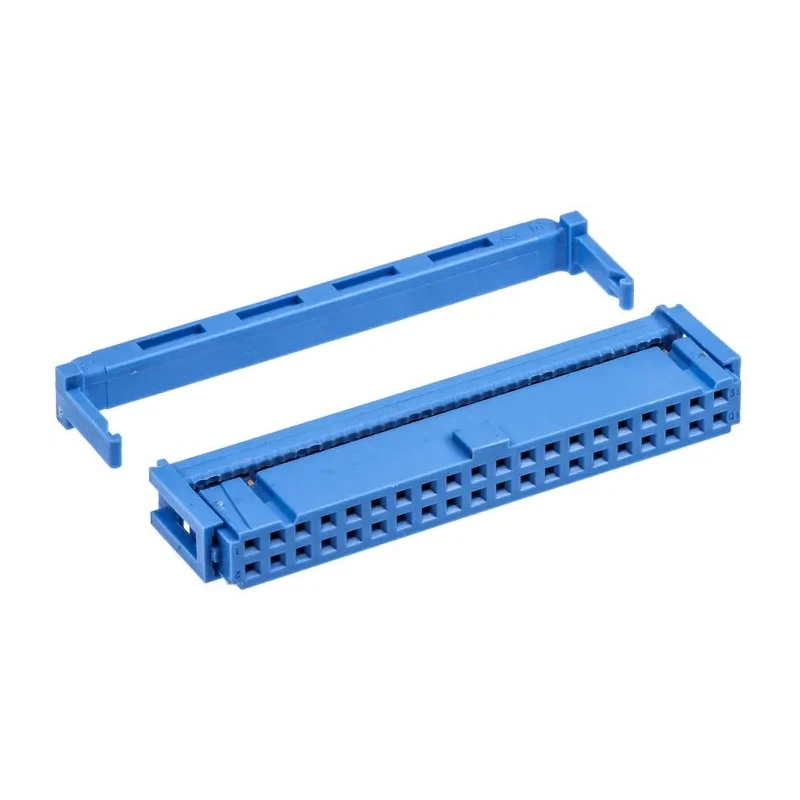

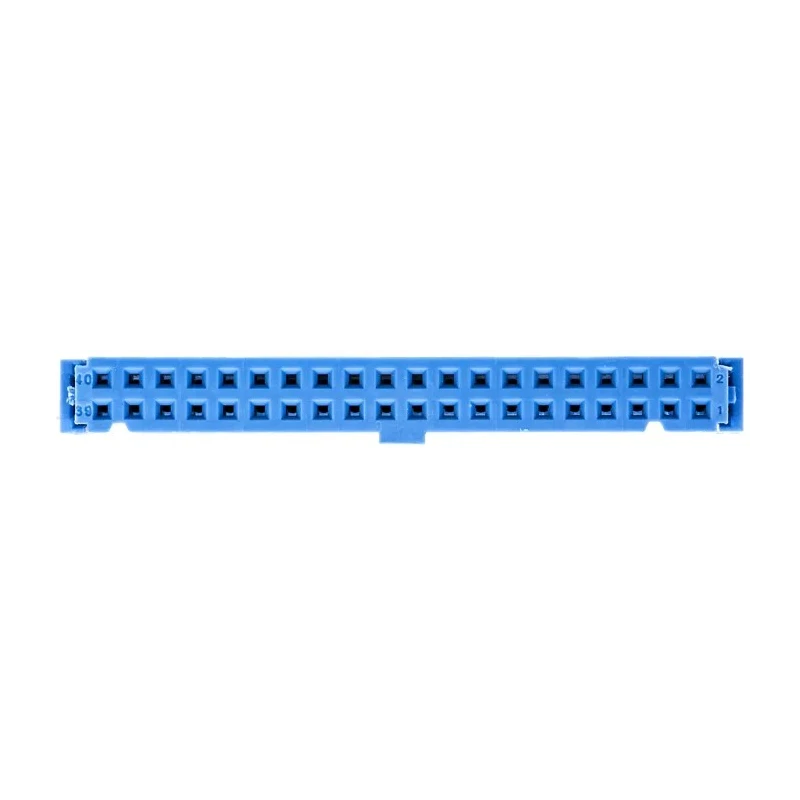

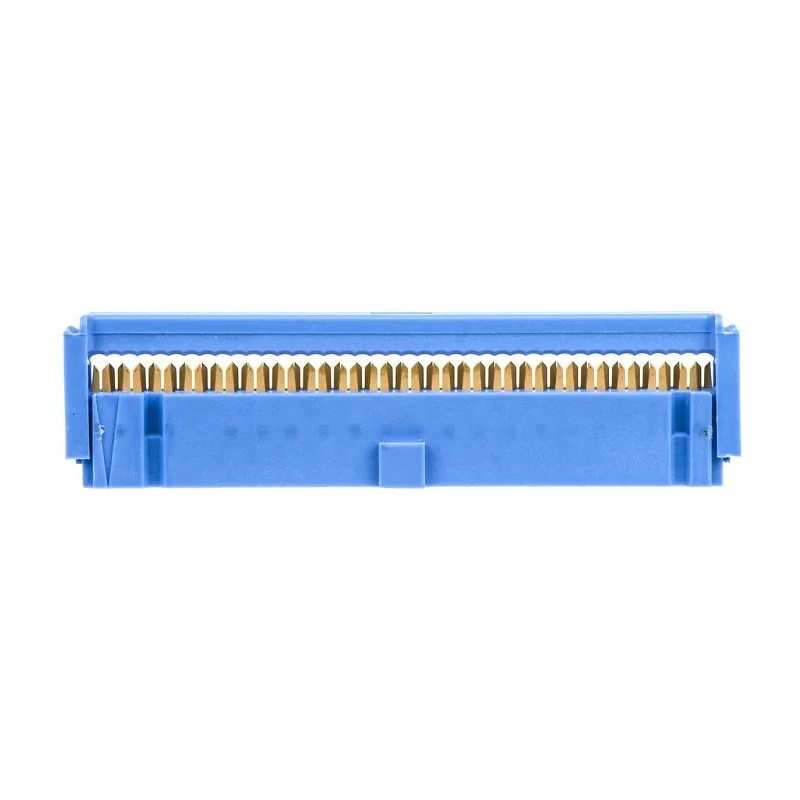

TE Connectivity 40-Way IDC Connector Female for Cable, 2 Row, 250V, 1A, AMP-LATCH 622 Series 1-1658527-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | AMP-LATCH 622 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 40-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
| RS PRO 40-Way IDC Connector Female for Cable, 2 RowBrand | RS PRO |
Key Features
- This IDC connector has 40 contacts distributed in 2 rows for reliable cable connections.
- It supports right angle orientation with a cable mount type configuration.
- The connector uses AMP-LATCH 622 series with gold over nickel plating on beryllium copper contacts.
- The housing is made of thermoplastic material, rated UL 94V-0 for flammability.
- Suitable for operating temperatures from -55°C up to 125°C, enabling use in diverse environments.
- The termination type is Insulation Displacement Contact (IDC) for quick, solderless cable assembly.
- Contact spacing (pitch) is 2.54mm to match standard ribbon cables.
- Shrouded design and female contact gender provide secure and polarization-mated connections.
Product Description
TE Connectivity 1-1658527-3 40-Way IDC Connector Female for Cable, 2 Row is a high-quality electronic component designed for reliable wire-to-board connections, rated for 250V and 1 Amp current.
This connector features 40 gold-over-nickel plated beryllium copper contacts arranged in two rows, providing excellent conductivity and corrosion resistance.
The AMP-LATCH 622 Series connector uses Insulation Displacement Contact (IDC) termination technology which allows rapid assembly without the need for soldering, enhancing manufacturing efficiency.
The thermoplastic housing is glass-filled and UL 94V-0 rated, ensuring durable thermal resistance and mechanical stability during operation.
The connector supports right angle cable mounting with a pitch of 2.54mm suited for 26-28 AWG or stranded PVC insulated ribbon cables, available from 6 up to 64 positions in the series.
It operates from -55°C to 125°C, making it suitable for diverse industrial, electronic, laboratory, and manufacturing environments requiring high reliability under varying temperatures.
This IDC Connector's shrouded female design offers protection against accidental contact and ensures correct polarization for easy installation. Its compact size and right angle orientation facilitate efficient space utilization in PCB assemblies and complex wire harnesses.
Common applications include automation equipment, communication devices, instrumentation, and power supply connections. Compliance with DIN-41651 and related standards ensures compatibility and interoperability in engineered electronic systems.
TE Connectivity's 1-1658527-3 connector delivers dependable performance for industrial, commercial, and laboratory electronic assemblies requiring secure IDC ribbon cable connections.
Explore EnvMart for a wide range of electronic connectors and components to suit your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDC connector is rated for 250V.
It has a current capacity of 1 Amp.
The contacts are made of beryllium copper and are plated with gold over nickel for enhanced conductivity and corrosion resistance.
The connector operates within a temperature range of -55°C to 125°C.
This model features 40 contacts arranged in 2 rows.
The contact spacing, or pitch, is 2.54mm, which is standard for ribbon cables.
It uses Insulation Displacement Contact (IDC) termination technology, allowing for quick and solderless cable assembly.
This connector supports right angle cable mounting, which facilitates efficient space utilization.
The housing is made of thermoplastic material, which is UL 94V-0 rated for flammability.
This model features a shrouded design, providing protection against accidental contact and ensuring correct polarization.
It is suitable for applications in automation equipment, communication devices, instrumentation, and power supply connections.
The connector is manufactured in China.
