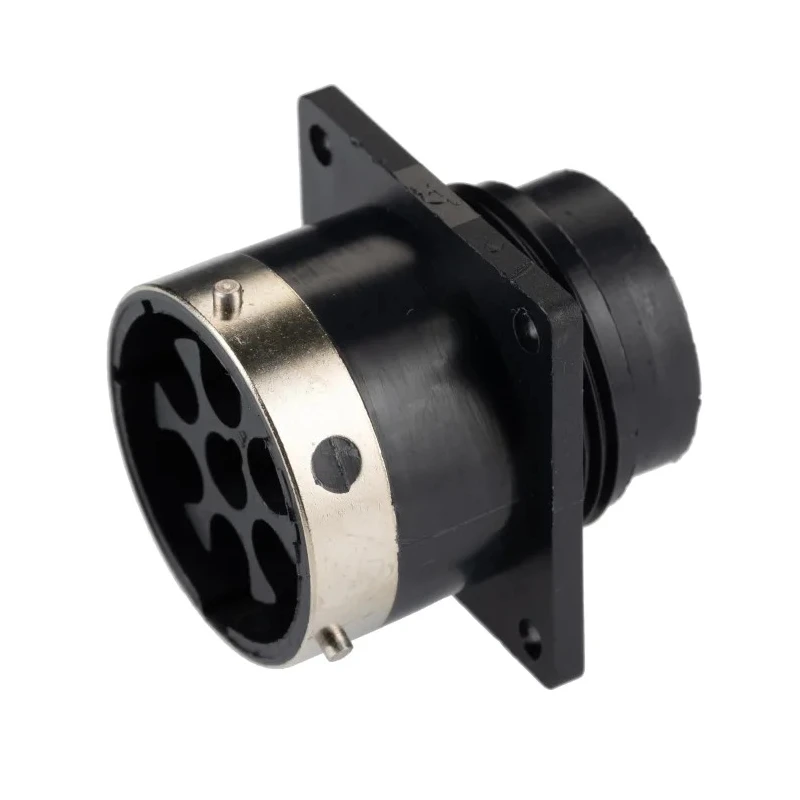

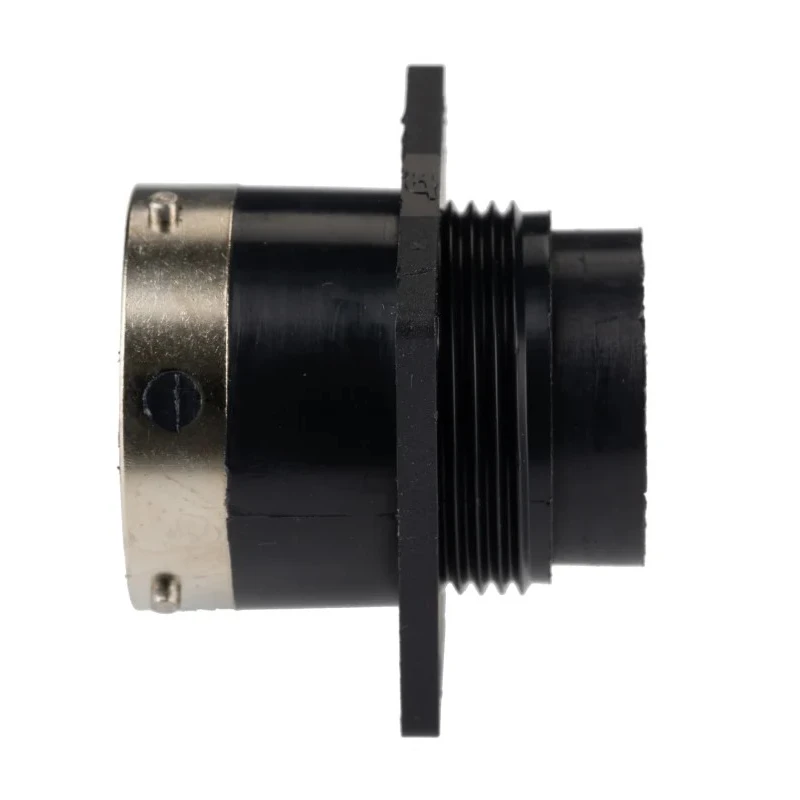

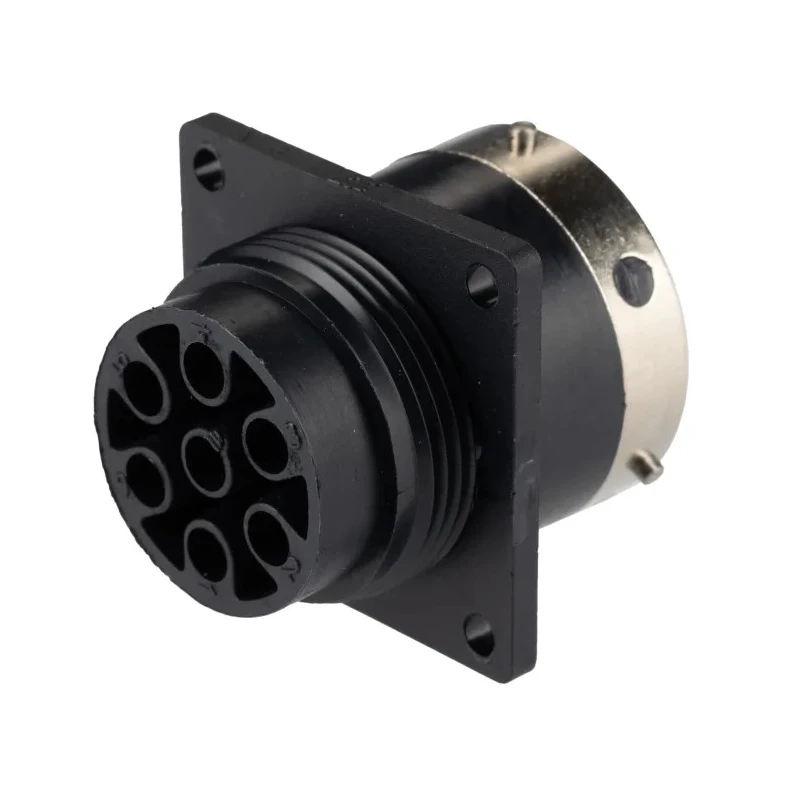

ITT Cannon Circular Connector 7 Contacts Panel Mount Socket Male IP65 Trident Ringlock Series TR1807RMS1NB / 192990-1360

ITT Cannon TR1807RMS1NB / 192990-1360 circular connector is a robust panel mount socket connector featuring 7 male contacts and a standard 18 mm shell size. It belongs to the Trident Ringlock series, providing exceptional durability and performance in industrial, transportation, and process control applications with a rated current of 16A and voltage capacity of 380V.

Constructed from a black nylon polymer housing compliant with UL94 V-0 flammability standards, this connector ensures resistance to thermal and physical shock, operating reliably between -55°C and 105°C. The contacts are made of nickel-plated copper alloy, assuring excellent conductivity and corrosion resistance.

The metal bayonet locking mechanism allows fast and secure mating with a single coupling nut rotation, ensuring vibration and shock resistance even in harsh conditions. The IP65 ingress protection rating when mated guarantees sealing against dust and water jets, making it ideal for industrial and automation environments requiring rugged connectors.

Termination is by crimp contacts, including compatibility with two-piece T2P and three-piece T3P crimp contacts, facilitating quick onsite assembly and repair, minimizing downtime. The connector’s straight orientation and panel mount style simplify integration into control panels and machine build-outs.

Common industrial use cases encompass industrial electronics, robotic systems, instrumentation, process control, manufacturing, printing equipment, and machine building. The connector’s design supports long-lasting, reliable power and signal connections in demanding settings.

Standard panel shells accept female (socket) contacts and mate with cable mount connectors with male (pin) contacts. Reverse panel shells accept male (pin) contacts and mate with cable mount connectors with female (socket) contacts.

The black nylon shell provides UL94 V-0 rated flame resistance. Bayonet locking system prevents accidental disconnection during operation. Shell to shell keying provides precise alignment and prevents mismating.

Choose ITT Cannon Trident Ringlock connectors for rugged industrial circular connector solutions that combine ease of assembly and repair with high reliability and environmental protection. Explore more circular connector solutions and industrial electrical components on EnvMart.
