Texas Instruments 8 Flip Flop IC HC, 3 State Output, 20-Pin PDIP SN74HC574N

Free Delivery in India | Lowest Global Shipping Charges

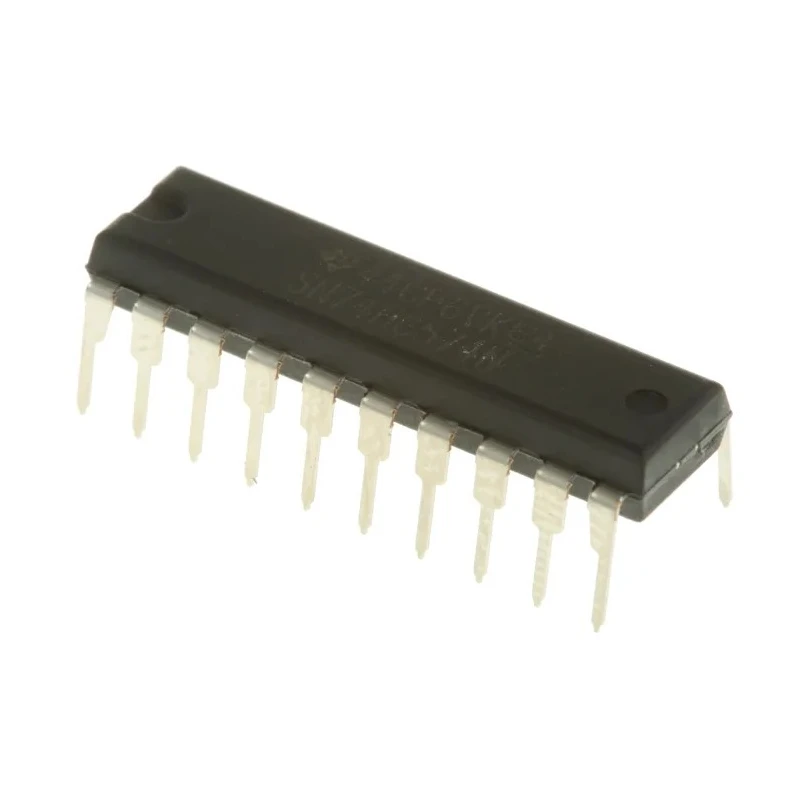

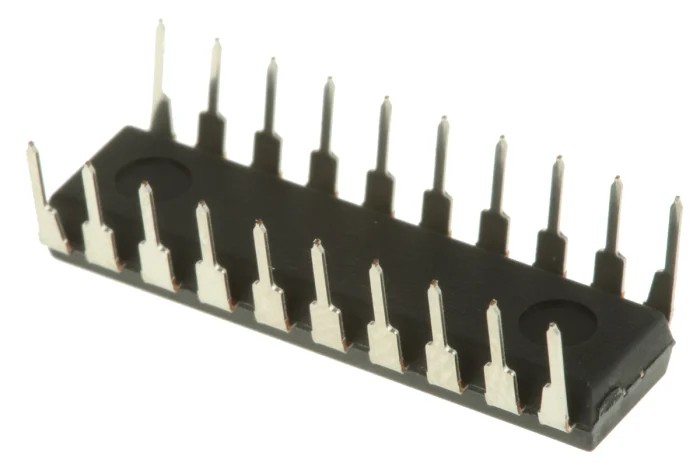

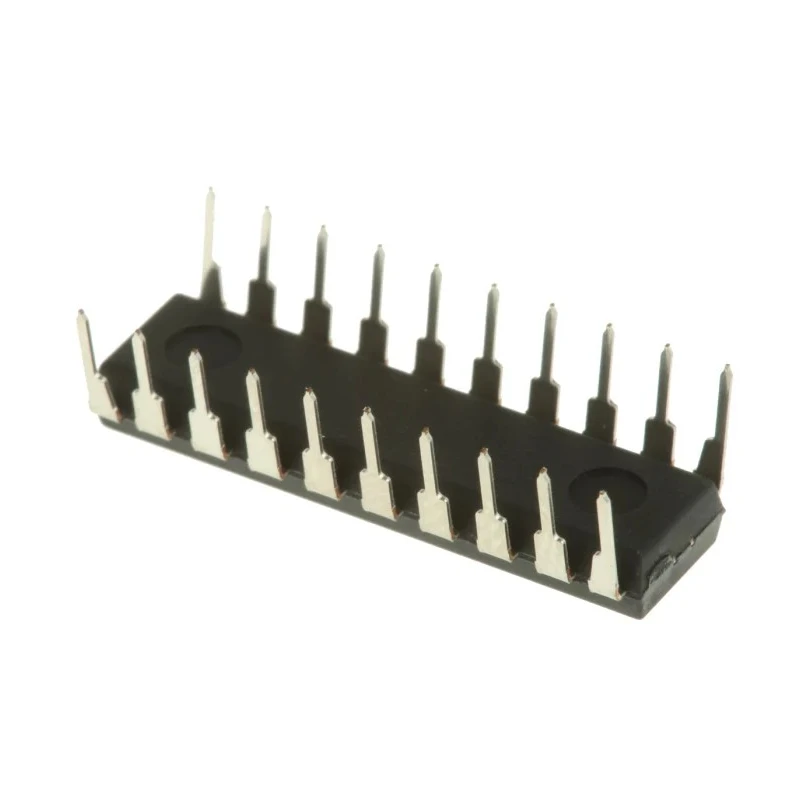

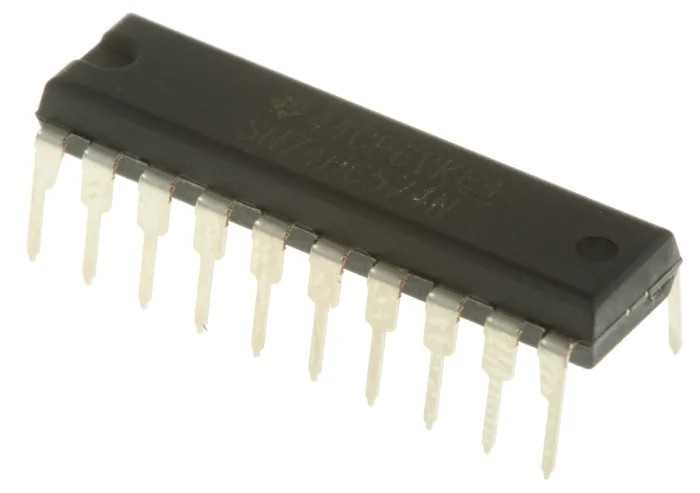

Texas Instruments 8 Flip Flop IC HC, 3 State Output, 20-Pin PDIP SN74HC574N

Name: Texas Instruments 8 Flip Flop IC HC, 3 State Output, 20-Pin PDIP SN74HC574N
Brand: Texas Instruments
SKU: 138351



Category Flip Flop ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	24.33mm
Model	SN74HC574N
Mount Type	Through Hole
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Series	SN74HC574N
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Operating Voltage	2 to 6 V
Trigger Type	Positive Edge
Pin Count	20
Number of Elements per Chip	8
Maximum Supply Voltage	6V
Logic Family	HC
Minimum Supply Voltage	2V
Maximum Propagation Delay Time @ CL	57ns
Clock frequency	28MHz
Flip-Flop Type	D Flip-Flop

Key Features

Operates at a clock frequency of 28MHz with positive edge trigger.
Compatible with input and output CMOS logic levels.
Supplies operate between 2V to 6V with a maximum propagation delay of 57ns.
Temperature range spans from -40°C to +85°C for robust industrial applications.
Consists of 8 D Flip-Flop elements per chip with non-inverting polarity.
Designed for through-hole mounting in a 20-pin PDIP package.
Offers reliable performance without automotive standards compliance.
Ideal for electronic, industrial, and laboratory logic circuit applications.

Product Description

Texas Instruments SN74HC574N is an industrial-grade 8 Flip Flop IC from the high-speed CMOS 74HC Family. It features a 3 State output and is housed in a 20-pin PDIP package, making it suitable for through-hole mounting in diverse electronic designs.

This logic IC operates at a clock frequency of up to 28MHz with positive edge triggering and non-inverting polarity, ensuring fast and reliable data storage and transfer within digital circuits.

Compatible with CMOS input and output, the device functions efficiently within a supply voltage range of 2V to 6V, achieving a maximum propagation delay time of 57 nanoseconds, which supports high-speed operation in complex circuits.

Engineered to perform under extreme conditions, it operates reliably between temperatures of -40°C and 85°C, making it ideal for industrial, laboratory, and commercial electronic applications.

The chip integrates eight D-type flip-flops with three-state output capability, useful in memory storage, data buffering, and synchronous logic designs requiring tri-state control.

Dimensionally, the IC measures 24.33mm in length and 4.57mm in height, conforming to standard PDIP form factors for compatibility with a wide range of PCBs and sockets. This component does not have special automotive standards or approvals but is certified RoHS compliant, ensuring environmental safety in manufacturing.

Operates at a clock frequency of 28MHz. Positive edge-triggered D Flip-Flop type. Through-hole mount with 20-pin PDIP package. Voltage range from 2V to 6V supply. Max propagation delay of 57ns with 3 state outputs. Temperature operating range from -40°C to 85°C.

Contains 8 flip-flop elements per chip. Widely used in electronic circuit design, digital memory, and logic systems within industrial machines, laboratory instruments, and communication devices. Explore additional Texas Instruments semiconductor products and components from EnvMart’s comprehensive catalog for high-quality, reliable electronic components.

Explore more products in our Flip Flop ICs category.
