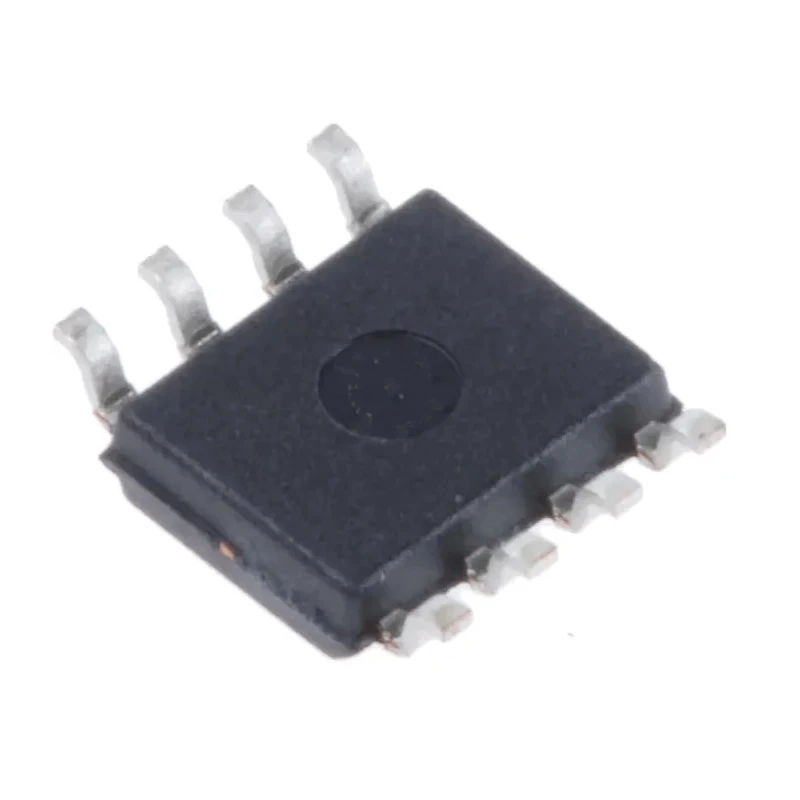

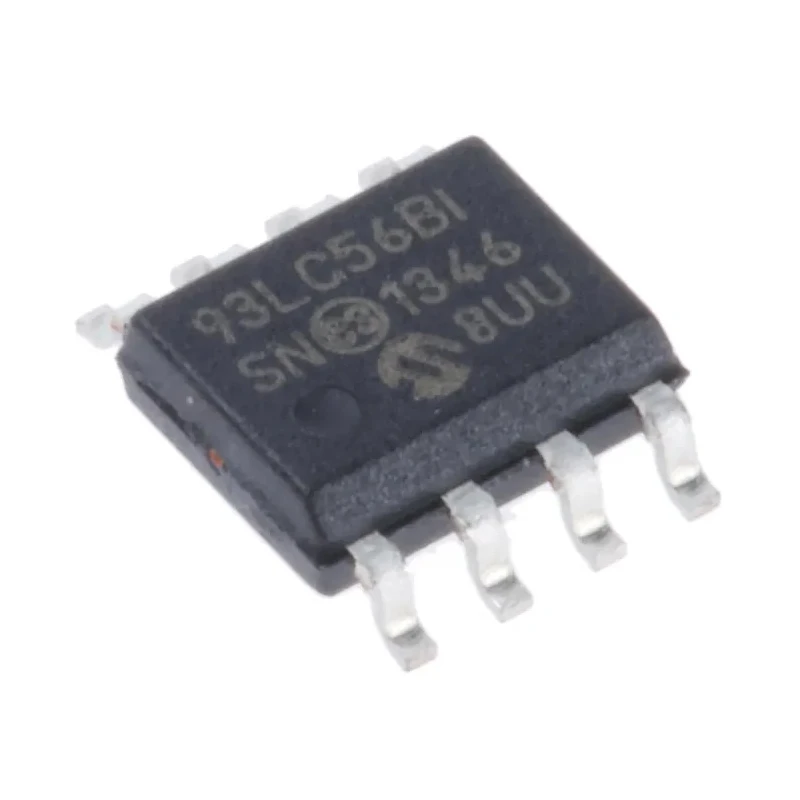

Microchip 2 kB Serial EEPROM 200 ns 8-Pin SOIC Serial-Microwire 93LC56B-I/SN

Microchip 93LC56B-I/SN is a 2 kB Serial EEPROM featuring a 200 ns maximum random access time and a compact 8-pin SOIC package designed for surface mounting. This device utilizes a Serial-Microwire interface and operates at a maximum clock frequency of 2 MHz, providing efficient serial non-volatile memory storage with 16 bits per word organization.

With a supply voltage range from 2.5 V to 5.5 V and low supply current of 2 mA, the 93LC56B-I/SN EEPROM is optimized for power-conscious applications. The operating temperature range of -40°C to 85°C allows reliable operation in industrial, automotive, and embedded environments.

The device supports self-timed erase/write cycles including auto-erase, with over 1,000,000 guaranteed erase/write cycles and an industry-leading data retention time exceeding 200 years. Features such as power-on/off data protection circuitry and device status signal for ready/busy operation enhance reliability and system integration.

Typical applications include embedded systems memory expansion, storage for configuration/data parameters in industrial controls, communication equipment, and automotive electronics. The small SOIC form factor (4.9 mm length x 6 mm width) enables space-saving PCB layouts.

2 kilobyte memory size with 128 words of 16 bits each. Surface mount SOIC package for compact design. Operating temperature from -40°C to 85°C. 2 MHz maximum clock frequency for efficient data access. Power supply range from 2.5 V to 5.5 V.

Over 1 million write/erase cycles with data retention over 200 years. Serial-Microwire interface for ease of use and compatibility. Low supply current of 2 mA suitable for power-sensitive applications. Device status output signal for read/write status monitoring.

Ideal for industrial, automotive, and embedded electronics applications.
