Microchip 64 kB Serial EEPROM 100 ns 8-Pin PDIP Serial-SPI 25LC640A-I/P

Microchip 25LC640A-I/P Serial EEPROM is a high-performance, non-volatile memory device featuring 64 kB capacity organized as 8K x 8 bits. It uses a Serial Peripheral Interface (SPI) for high-speed serial communication with a maximum clock frequency of 10 MHz, offering fast and efficient data access.

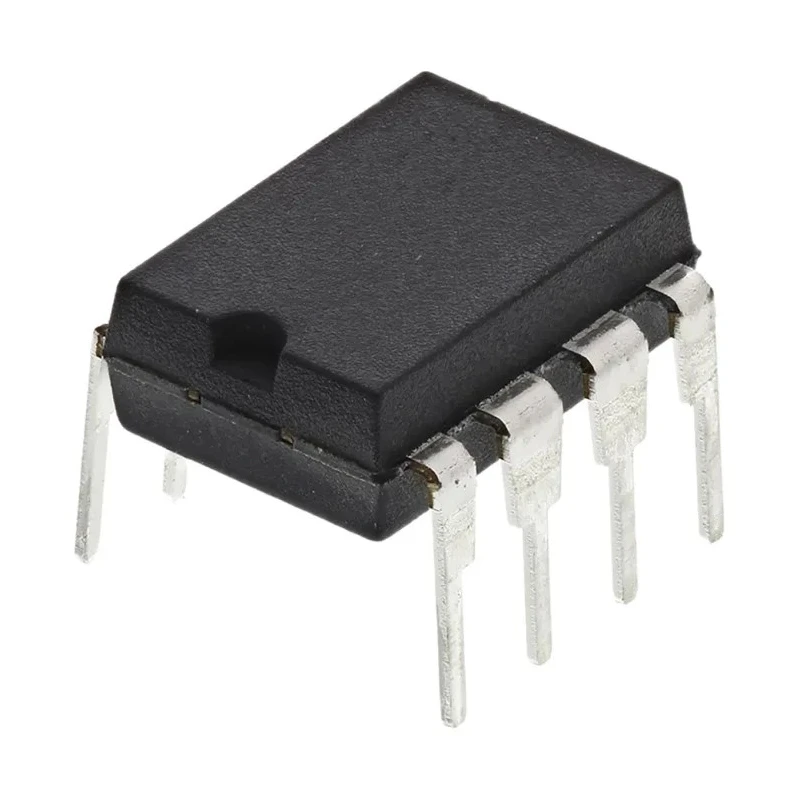

This EEPROM is housed in an 8-Pin PDIP package with through-hole pin mounting, making it compatible with a variety of circuit board assembly methods. It operates reliably over a broad temperature range from -40°C to 85°C, supporting industrial and automotive applications.

The device supports a minimum supply voltage of 2.5 volts up to a maximum of 5.5 volts, providing flexibility across different power levels. Its very low supply current of 5 mA ensures efficient power usage. With a maximum random access time of only 100 nanoseconds, the 25LC640A-I/P supports rapid read and write cycles.

Designed to meet the automotive standard AEC-Q100, this EEPROM guarantees robustness and long-term stability. It also features an exceptional data retention capability of 200 years, making it ideal for archival storage or critical data logging in embedded systems.

With physical dimensions of 9.4 mm in length and 6.35 mm in width, this compact EEPROM device is suited for space-constrained electronics requiring reliable serial memory. Its organization as 8K words of 8 bits each facilitates easy memory addressing and data management.

Non-volatile 64 kB serial EEPROM with 100 ns access time. Serial SPI interface with up to 10 MHz clock frequency. 8-Pin PDIP through-hole package for easy mounting. Operating temperature from -40°C to 85°C for harsh conditions.

Supply voltage range 2.5 V to 5.5 V compatible with diverse systems. Data retention up to 200 years ensuring long-term reliability. Meet automotive quality standard AEC-Q100 for durability. Low operating current of 5 mA conserving power.

Compact size 9.4 mm by 6.35 mm for efficient PCB space utilization.

This Microchip serial EEPROM is well-suited for use in industrial electronics, automotive controls, medical devices, and embedded systems where reliable, high-speed memory storage is essential. The 25LC640A-I/P's combination of robust specs and compact design supports a wide range of applications requiring secure non-volatile memory.
