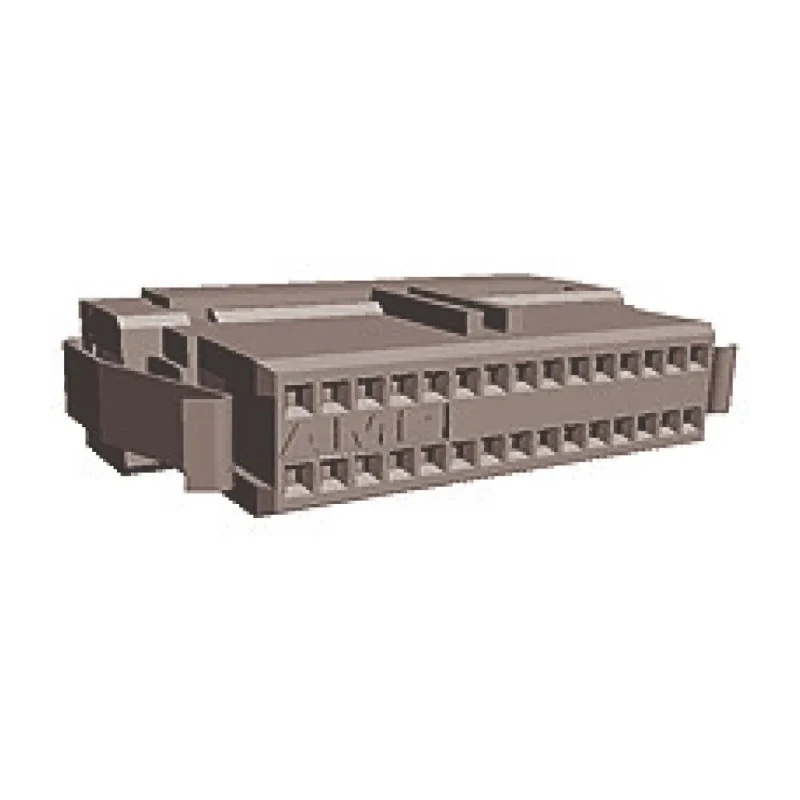

TE Connectivity 26-Way Shrouded IDC Connector Female for Cable, 2 Row, 30V AC, 500mA, AMP-LATCH System 50 2-111196-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH System 50 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- Features 26 contacts arranged in 2 rows for multi-connection setups.
- Supports a current rating of 500mA and voltage of 30V AC.
- Right angle orientation with gold over nickel contact plating for durability.
- Housing material is liquid crystal polymer ensuring high thermal stability.
- Operating temperature ranges from -65°C to 105°C for versatile environments.
- Termination type is Insulation Displacement Connector (IDC) for efficient cable assembly.
- Constructed with phosphor bronze contacts for excellent conductivity and resilience.
- Part of the AMP-LATCH System 50 series ensuring compatibility and performance.
Product Description
TE Connectivity 2-111196-9 is a 26-way shrouded IDC connector female designed for cable mounting in electronic components and power connectors applications. It features a 2-row arrangement of contacts with a pitch of 1.27mm, suitable for reliable and secure wiring connections.
This connector supports a current rating of 500mA and operates at a voltage of 30V AC, making it ideal for low power electronic circuits. The right-angle orientation facilitates easy installation in compact assemblies.
Constructed with high-quality phosphor bronze contacts plated with gold over nickel, it provides excellent conductivity and resistance to corrosion. The housing made from liquid crystal polymer ensures durability and thermal resistance within a temperature range of -65°C to 105°C.
The termination type is IDC (Insulation Displacement Connector), enabling fast and efficient cable connections without the need for stripping wires. This product is part of the AMP-LATCH System 50 series, known for robust connection systems.
This female connector is shrouded to protect contacts and prevent accidental damage. The product is suitable for industrial, manufacturing, and electronic assembly applications requiring precise and reliable cable connections.
Features 26 contacts arranged in 2 rows for multi-connection setups. Supports a current rating of 500mA and voltage of 30V AC. Right angle orientation with gold over nickel contact plating for durability. Housing material is liquid crystal polymer ensuring high thermal stability.
Operating temperature ranges from -65°C to 105°C for versatile environments. Termination type is Insulation Displacement Connector (IDC) for efficient cable assembly. Constructed with phosphor bronze contacts for excellent conductivity and resilience.
Part of the AMP-LATCH System 50 series ensuring compatibility and performance. Shrouded female connector designed for cable mounting applications.
This TE Connectivity IDC Connector delivers reliable performance for electronics manufacturing, PCB assemblies, and wire harnesses. Explore more TE Connectivity products and related electrical connectors at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 500mA and operates at a voltage of 30V AC, making it suitable for low power electronic circuits.
It features a right-angle orientation, which facilitates easy installation in compact assemblies.
The contacts are made from phosphor bronze and are plated with gold over nickel, while the housing is constructed from liquid crystal polymer, ensuring high thermal stability.
The operating temperature ranges from -65°C to 105°C, allowing it to function in versatile environments.
This connector has 26 contacts arranged in 2 rows, with a pitch of 1.27mm, suitable for multi-connection setups.
It uses Insulation Displacement Connector (IDC) termination, which allows for fast and efficient cable connections without the need for stripping wires.
This model is a shrouded connector, designed to protect contacts and prevent accidental damage.
It is part of the AMP-LATCH System 50 series, which is known for its robust connection systems.
The pitch of the contacts is 1.27mm, which is standard for this type of connector arrangement.
This connector is suitable for industrial, manufacturing, and electronic assembly applications requiring precise and reliable cable connections.
The country of origin for this connector is India.
This connector is a female connector, designed for cable mounting applications.
