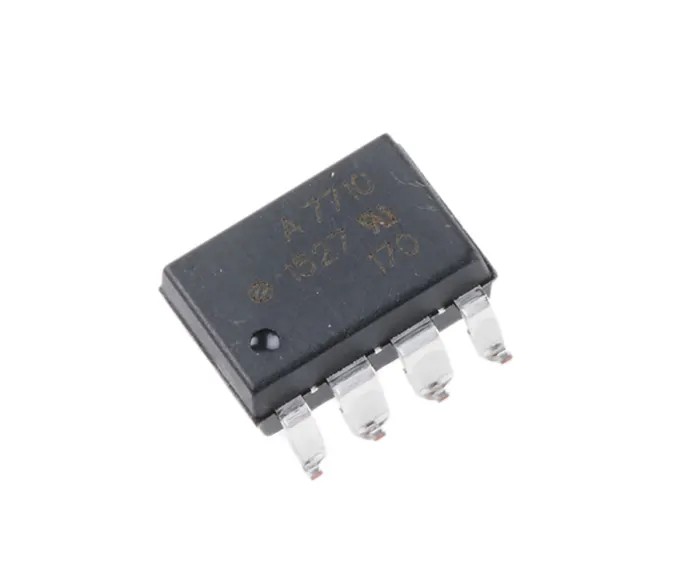

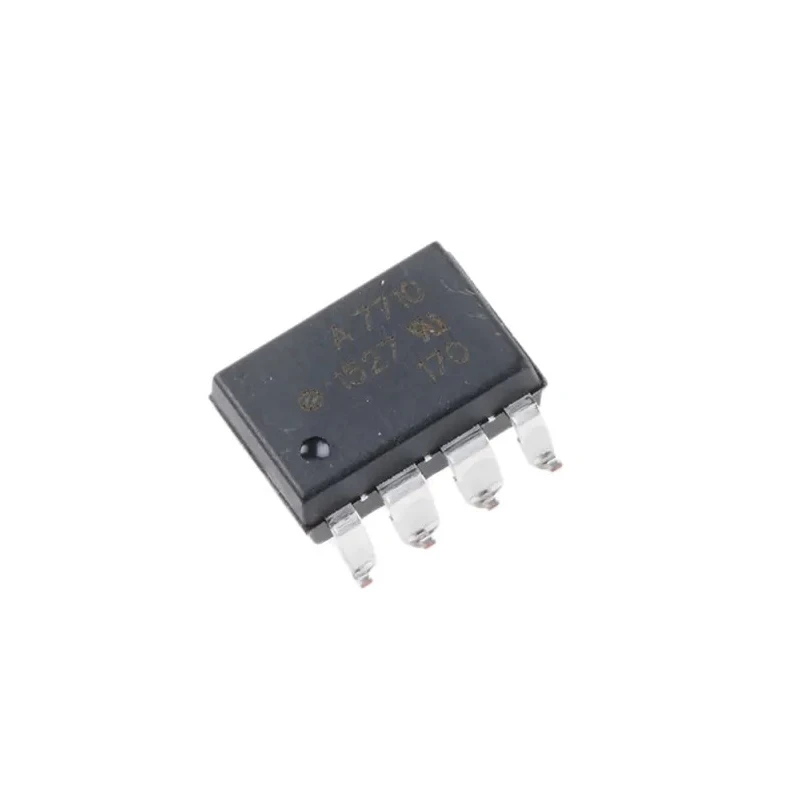

Broadcom HCPL-7710-300E High Speed CMOS Logic Gate DC Input Optocoupler, Surface Mount, 8-Pin DIP HCPL-7710-300E

Broadcom HCPL-7710-300E is a high speed CMOS logic gate DC input optocoupler designed for electronic isolation in industrial, laboratory, and commercial electronics applications. Its surface mount 8-pin DIP package offers compactness and ease of installation into electronic circuits for enhanced production efficiency.

This optocoupler provides dielectric isolation voltage rating of 3750V AC which ensures electrical isolation between input and output, protecting sensitive components in equipment used in manufacturing and power electronics. The device supports a maximum input current of 10mA DC and features typical rise time of 13 nanoseconds and fall time of 8 nanoseconds, suitable for high-speed switching applications.

Operating reliably over a temperature range of -40°C to 100°C, the HCPL-7710-300E is robust for harsh environments such as industrial automation, control systems, and instrumentation. It meets recognized certifications including CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5 standards, ensuring compliance and safety when deployed.

The optocoupler’s transistor logic output interface allows it to be interfaced with a variety of digital logic circuits. Its DIP package format is optimized for surface mounting applications, easing assembly and board space optimization.

High speed CMOS logic gate technology enables fast response. Isolation voltage of 3750V AC provides effective signal separation. Typical rise and fall times of 13ns and 8ns respectively for rapid switching. Maximum DC input current of 10mA supports diverse control signal levels.

Operates from -40°C to 100°C, suitable for industrial and commercial uses. Certified to CSA, UL 1577, and IEC/EN/DIN EN 60747-5-5 standards. Surface mount 8-pin DIP package suitable for efficient PCB assembly. Transistor logic output for interfacing with digital control circuitry.

This Broadcom HCPL-7710-300E optocoupler is ideal for industrial automation, power supply monitoring, signal conditioning, and data acquisition systems. Its reliable isolation properties and high-speed performance make it suitable for protecting control electronics, ensuring system integrity in critical applications.
