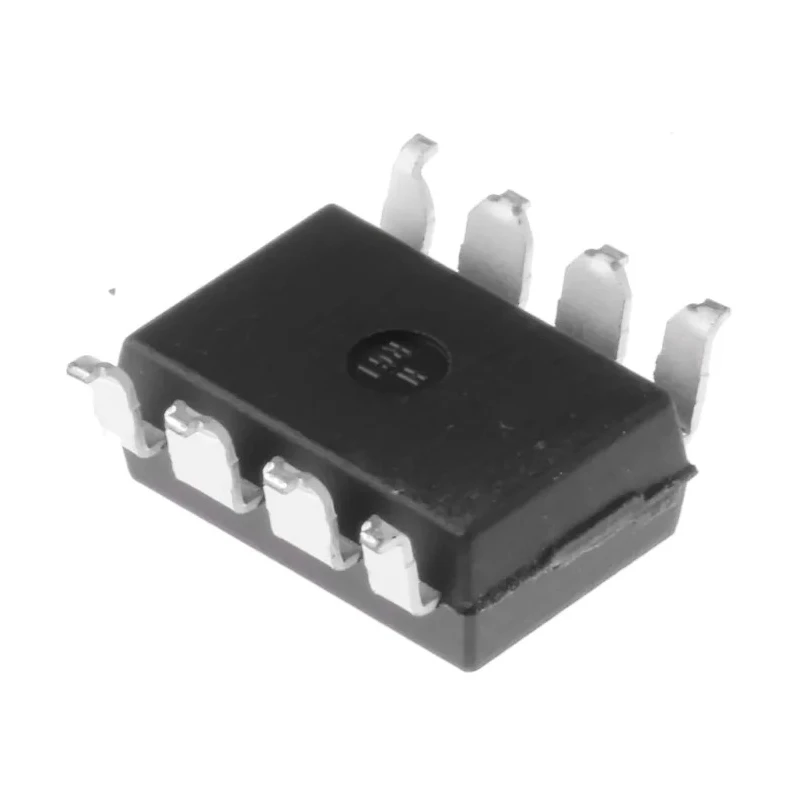

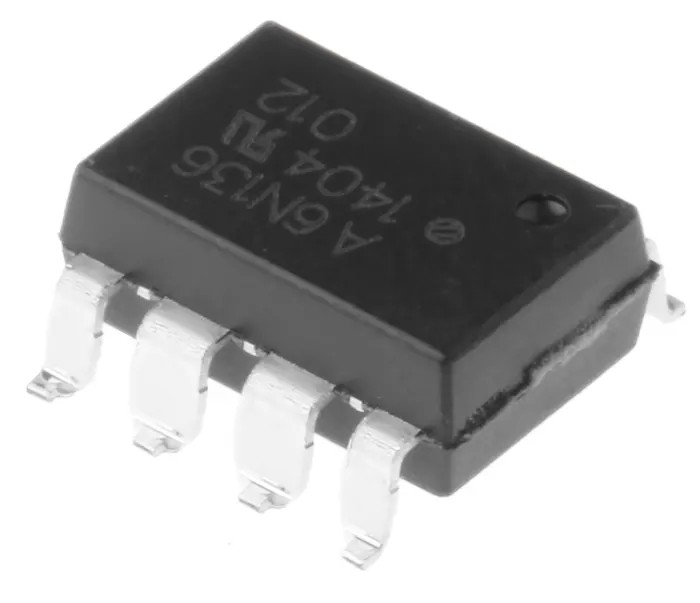

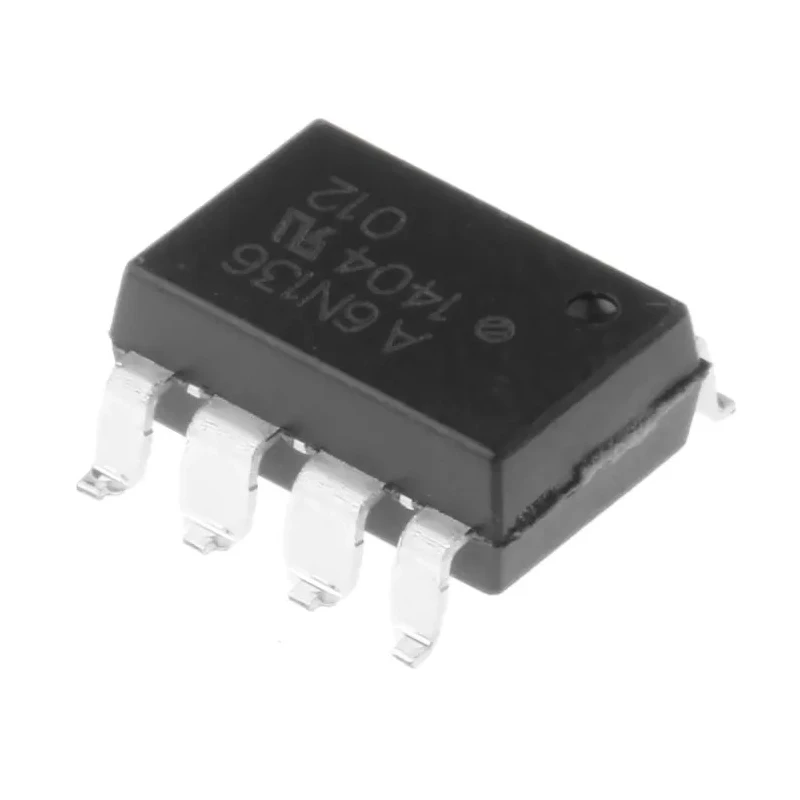

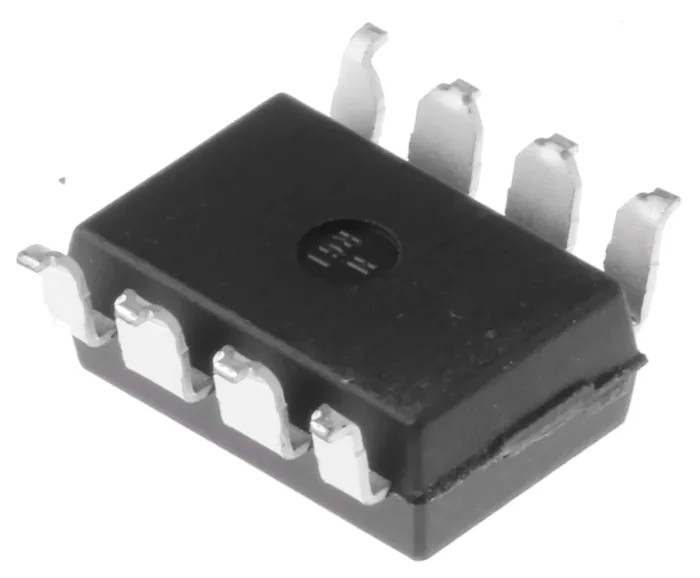

Broadcom DC Input Transistor Output Surface-Mount 8-Pin PDIP Optocoupler 6N136-300E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | 6N136-300E |
| Mount Type | Surface |
| Output type | Transistor |
| Series | 6N136 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL1577, CSA, IEC/EN/DIN EN 60747-5-5 |
| Maximum Forward Voltage | 1.7V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 50% |
| Minimum Current Transfer Ratio | 19% |
| Isolation Voltage | 3750V ac |
| Broadcom DC Input Optocoupler, Through Hole, 8-Pin PDIPBrand | Broadcom |
Key Features
- Features a transistor output for reliable signal isolation.
- Operates at a maximum forward voltage of 1.7 volts.
- Supports a maximum input current of 25 milliamps direct current.
- Offers an isolation voltage up to 3750 volts AC for circuit protection.
- Designed to operate within a temperature range from -55°C to 100°C.
- Complies with UL1577, CSA, IEC/EN/DIN EN 60747-5-5 standards ensuring safety and quality.
- Ensures logic output capability for easy interfacing with digital circuits.
- Delivers current transfer ratios between 19% minimum and 50% maximum.
Product Description
Broadcom 6N136-300E is a high-speed DC input optocoupler featuring transistor output with a surface-mount 8-pin PDIP package. It is engineered for precision signal isolation in various industrial and electronics applications, offering robust performance and reliable electrical isolation up to 3750 volts AC.
The device operates over a wide temperature range from -55°C to 100°C, making it suitable for harsh environments. It supports maximum forward voltage of 1.7 volts and a maximum input current of 25 mA, facilitating efficient input signal control. The 6N136-300E provides logic-compliant output signals with a current transfer ratio ranging from 19% to 50%, suitable for interfacing with digital logic circuitry.
Certified to meet rigorous standards such as UL1577, CSA, and IEC/EN/DIN EN 60747-5-5, this optocoupler guarantees safety and compliance for industrial use. Its 8-pin PDIP package allows for easy integration on printed circuit boards and surface mounting assembly techniques.
This optocoupler is commonly applied in industrial automation, instrumentation, power supply isolation, and signal coupling systems, providing stable and noise-immune optical isolation between circuits.
Features a transistor output for reliable signal isolation. Operates at a maximum forward voltage of 1.7 volts. Supports a maximum input current of 25 milliamps direct current. Offers an isolation voltage up to 3750 volts AC for circuit protection.
Designed to operate within a temperature range from -55°C to 100°C. Complies with UL1577, CSA, IEC/EN/DIN EN 60747-5-5 standards ensuring safety and quality. Ensures logic output capability for easy interfacing with digital circuits.
Delivers current transfer ratios between 19% minimum and 50% maximum. Packaged in a standard 8-pin PDIP form factor suitable for surface mounting.
Broadcom offers this optocoupler as a dependable component in diverse electronic control and industrial systems. Explore EnvMart for comprehensive electronic components and Optocoupler solutions.
