Cinch FD 15 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male FDA-15PTI2/1

Category D-Sub Connector Brand Cinch Condition New

Specifications

Country of Origin United Kingdom
Voltage 200V
Brand Cinch
Orientation Straight
Current 5A
Model FDA-15PTI2/1
Mount Type Panel Mount
Housing Material Steel
Contact Material Copper Alloy
Series FD
Termination Type Solder
Maximum Operating Temperature 125°C
Minimum Operating Temperature -25°C
Pitch 2.76mm
Contact Plating Nickel
Number of Contacts 15
Contact Gender Male
Connector Gender Male
Flammability Rating UL94V-0
Connector Type D D-Sub
D-Sub Shell Size A
Cinch FD 15 Way Filtered PCB D-Sub Connector PlugBrand Cinch
HARTING 15 Way Panel Mount D-sub Connector Plug, 2.77mm PitchBrand HARTING

Key Features

  • The connector features 15 contacts rated for 5A current.
  • It is a panel mount type with a straight orientation ensuring secure equipment integration.
  • Constructed with steel housing and copper alloy contacts plated with nickel for durability.
  • Operates at a voltage of 200V and temperature range from -25°C to 125°C.
  • Solder termination type with male gender contacts and connector.
  • Features a 2.76 mm pitch and complies with FD series standards.
  • Designed with excellent EMI/RFI shielding using grounding indents and nickel plating.
  • Suitable for military, industrial, computer interfacing, and hazardous environments.

Product Description

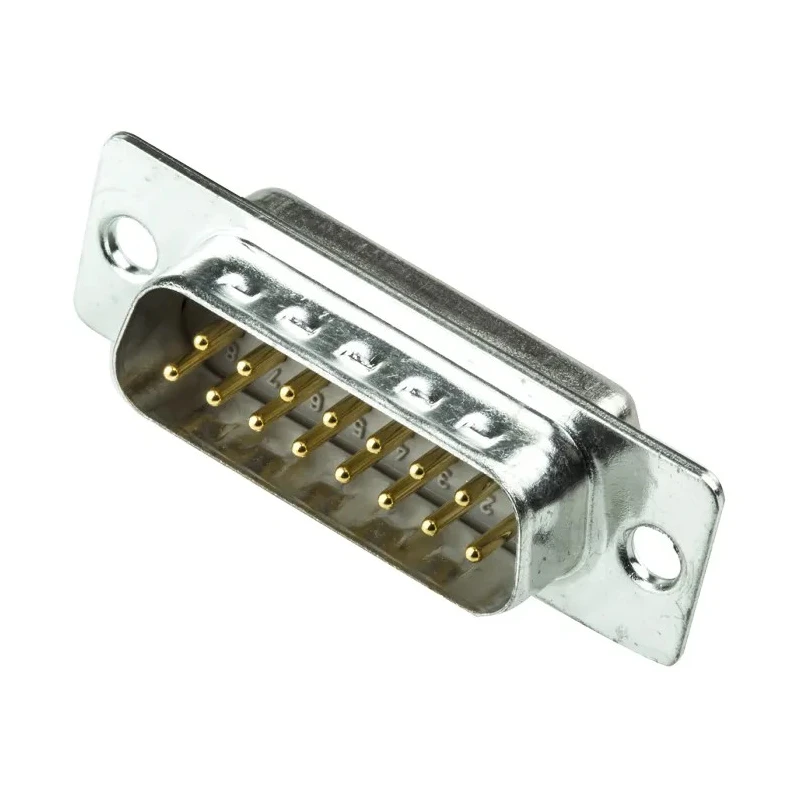

Cinch FDA-15PTI2/1 15 Way Straight 2.76 mm Pitch Panel Mount D-Sub Connector Male is engineered for use in demanding industrial, military, and commercial settings requiring high reliability and EMI filtering.

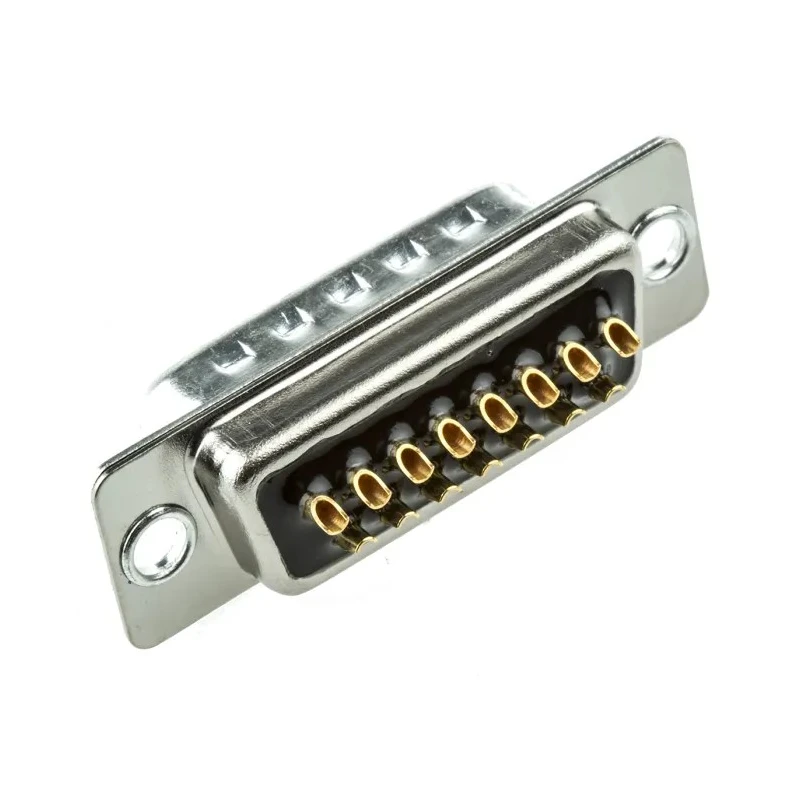

This D-Sub Connector features solder bucket terminals and turned pin contacts with epoxy encapsulated tubular capacitors inserted to provide superior resistance to hazardous environments. Its rear shell is electrolytic nickel while the front shell comprises steel with a bright tin finish, enhancing EMI/RFI shielding through grounding indents on the front shell.

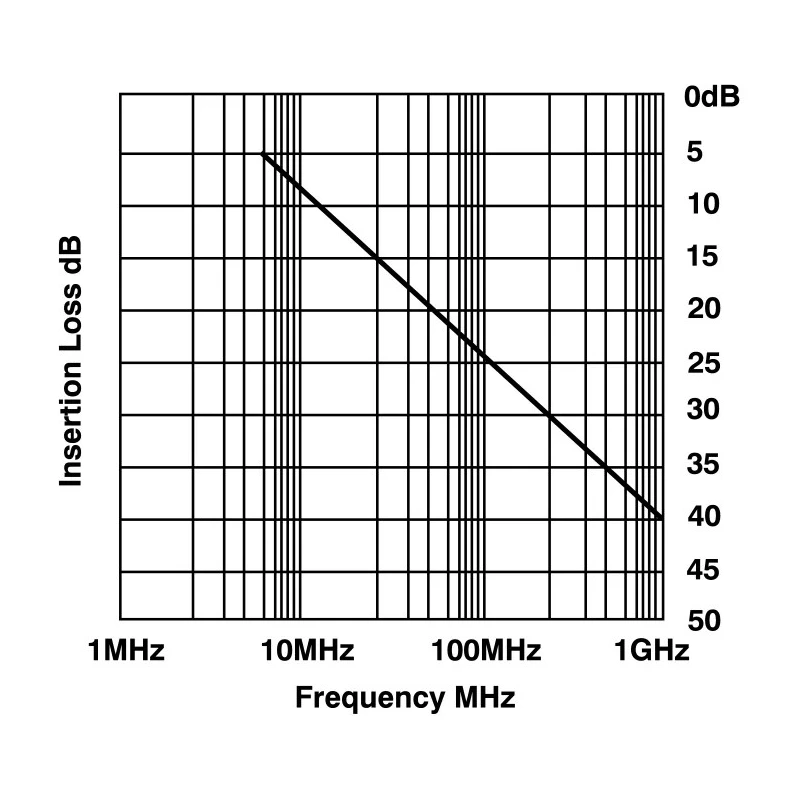

Designed to limit cable-borne electromagnetic interference via a 1000 pF capacitor from each contact to ground, it features gold plated turned pin contacts with high quality machining for optimal connection.

The connector shell size A with 15 contacts supports up to 5A current and withstands voltages up to 200V. It functions efficiently across a temperature range from -25°C to 125°C, meeting UL94V-0 flammability rating.

It is suitable for military, industrial, manufacturing, computer interfaces, and hazardous environment applications where EMI/RFI shielding and robust construction are critical. The contact plating and high-quality materials ensure corrosion resistance and long lifecycle.

This connector complies with CECC-73301-802, MIL-C-24308, DIN-14652, BS-9523 and other relevant standards. Easy panel mount installation with precise 3.05 mm diameter mounting holes. Provides reliable connectivity with a straight orientation and solder termination.

Ideal for use in manufacturing, aerospace, defense, and commercial electronic equipment. Explore the comprehensive range of connector solutions offered by Cinch on EnvMart for enhanced system performance and EMI protection.
