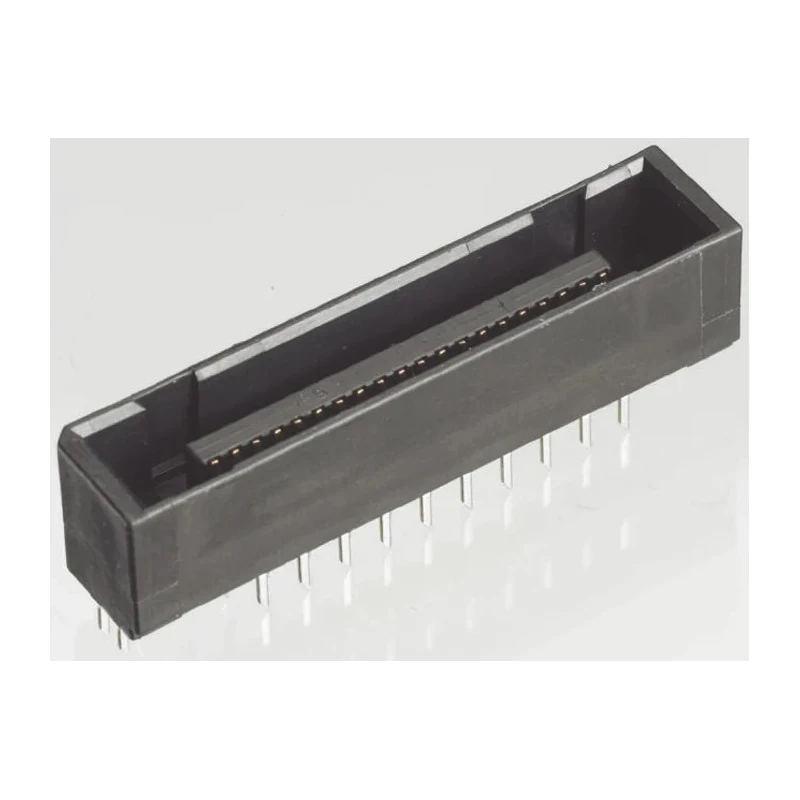

JAE TX25 Series Straight Through Hole PCB Header 40 Contacts 2.54 mm Pitch 2 Row Shrouded TX25
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Orientation | Straight |
| Current | 1A |
| Model | TX25 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | TX25 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features 40 gold-plated contacts for durable conductivity.
- Constructed with polybutylene terephthalate housing for robust insulation.
- Supports up to 1A current capacity and 500V voltage rating.
- Designed for through-hole mounting and straight orientation.
- Operating temperature range from -40°C to 80°C ensures performance in varied environments.
- Stable connection with long electrical engagement and click-action design.
- Shrouded housing provides polarization and protection against mis-mating.
- Suitable for rack and panel connector applications in industrial electronics.
Product Description
JAE TX25 Series TX25 Straight Through Hole PCB Header features 40 contacts arranged in 2 rows with 2.54 mm pitch, designed for robust and reliable board-to-board connections in electronic assemblies.
The housing is crafted from polybutylene terephthalate ensuring excellent insulation and mechanical stability. The contacts are made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Rated for a current of 1 ampere and a voltage of up to 500 volts, this connector supports varied electronics applications requiring efficient power and signal transmission.
The connector's through-hole mount and straight orientation facilitate secure PCB attachment. Operating temperatures range from -40°C to 80°C, making it suitable for demanding industrial conditions.
Its shrouded design, along with polarization keys and a click-action feature, guarantees reliable mating and protection against incorrect connections. This PCB header is ideal for use in industrial, manufacturing, and electronic equipment assemblies, enabling stable rack and panel connections with high durability.
Features 40 gold-plated contacts for durable conductivity. Constructed with polybutylene terephthalate housing for robust insulation. Supports up to 1A current capacity and 500V voltage rating. Designed for through-hole mounting and straight orientation.
Operating temperature range from -40°C to 80°C ensures performance in varied environments. Stable connection with long electrical engagement and click-action design. Shrouded housing provides polarization and protection against mis-mating.
Suitable for rack and panel connector applications in industrial electronics. Browse EnvMart’s comprehensive range of PCB Headers and connectors for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 1A and a voltage rating of 500V.
The TX25 series header features a pitch of 2.54 mm and has 40 contacts arranged in 2 rows.
The housing is constructed from polybutylene terephthalate, providing robust insulation and mechanical stability.
This unit is designed for through-hole mounting, ensuring secure attachment to the PCB.
It operates effectively within a temperature range of -40°C to 80°C, suitable for various industrial environments.
The termination type for this PCB header is solder, facilitating reliable electrical connections.
Yes, the shrouded housing design provides polarization and protection against mis-mating, ensuring correct connections.
The contacts are made of copper alloy and are gold plated to enhance conductivity and corrosion resistance.
This connector features a straight orientation, which is typical for board-to-board connections.
It is suitable for rack and panel connector applications in industrial electronics and electronic equipment assemblies.
The long electrical engagement and click-action design of this model ensure stable connections during operation.
The country of origin for this PCB header is India.
