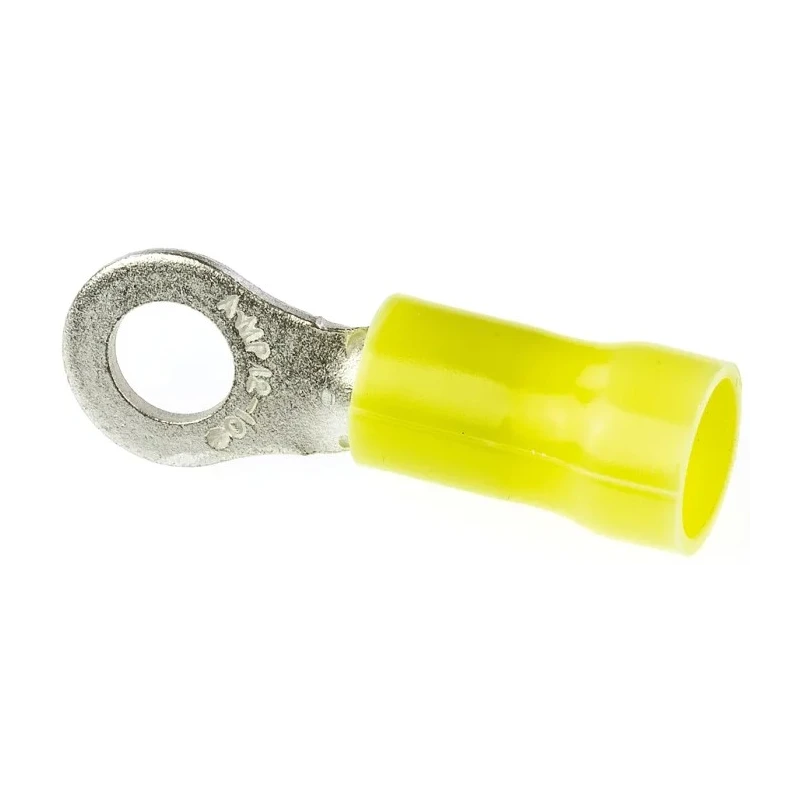

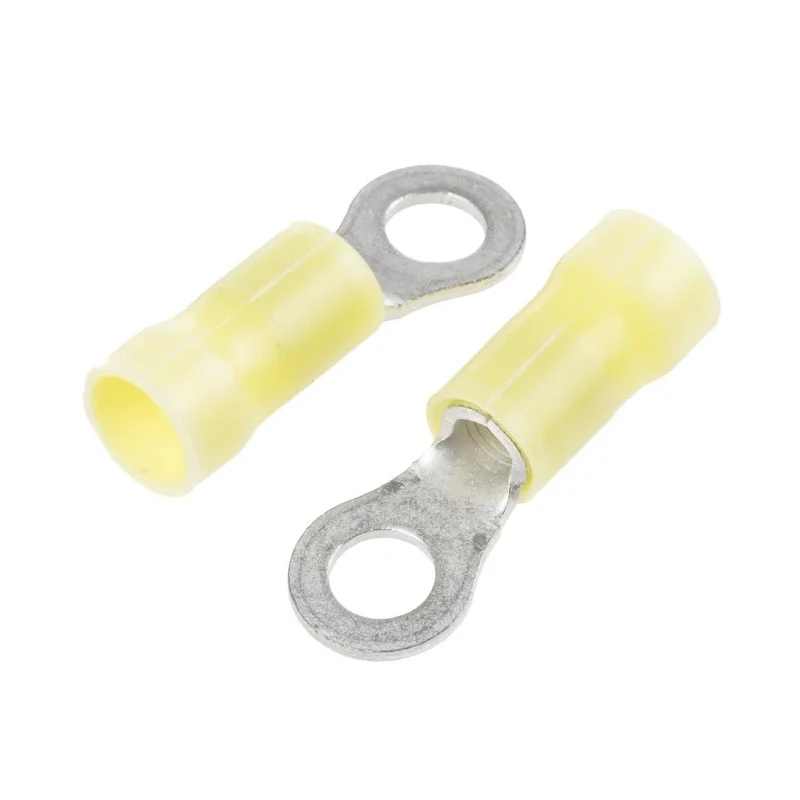

RS PRO PLASTI-GRIP Insulated Crimp Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 160292

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PLASTI-GRIP Insulated Crimp Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 160292

Name: RS PRO PLASTI-GRIP Insulated Crimp Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 160292
Brand: RS PRO
SKU: 137522
Price: 0.75 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	United States
Brand	RS PRO
Colour	Yellow
Model	160292
Insulation	Insulated
Overall Length	27.9mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	90°C
Insulation Material	Polyvinyl Chloride
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	9.5mm
Inner Ring Diameter	5mm
Stud Size	M5

Key Features

Made of high conductivity copper with tin plating for reliable electrical contact.
Polyvinyl chloride insulation rated 94V-0 provides high dielectric strength.
Features a serrated inner barrel to maximize tensile strength after crimping.
Outer ring diameter measures 9.5 mm and inner ring diameter measures 5 mm.
Overall length of the terminal is 27.9 mm ensuring compact installation.
Suitable for use with wire sizes ranging from 2.6 mm² to 6.6 mm².
Rated for maximum operating temperature of 90°C for durability in demanding conditions.
The yellow insulation color clearly indicates compatible wire size range 2.7 mm² to 6.6 mm².

Product Description

TE Connectivity 160292 PLASTI-GRIP Insulated Crimp Ring Terminal, featuring M5 stud size and designed for wire sizes from 12 AWG to 10 AWG with yellow polyvinyl chloride insulation, offers reliable and durable electrical connections. This crimp terminal is constructed from high conductivity copper with tin plating to ensure excellent electrical conductivity and corrosion resistance.

The PLASTI-GRIP series terminals have a closed barrel ring tongue design with a serrated inner barrel that provides maximum electrical contact and tensile strength after crimping. Its funneled entry facilitates easier insertion of stripped wires, minimizing wiring errors and enhancing assembly speed.

The insulation material used is rated 94V-0, indicating high dielectric strength and flame retardancy. The terminal's overall length is 27.9 mm, with an outer ring diameter of 9.5 mm and inner ring diameter of 5 mm, matching standard M5 stud requirements.

This yellow insulated crimp ring terminal supports wire sizes ranging from 2.6 mm² to 6.6 mm² (approx. 12 to 10 AWG), suitable for various industrial, electronic, and manufacturing wiring assemblies requiring secure and standardized crimp connections.

Made from tin-plated copper contact material. Polyvinyl chloride insulation ensures safety and electrical isolation. Designed for M5 stud mounting with 9.5 mm outer diameter ring. Serrated barrel optimizes electrical and mechanical connection strength.

Rated for maximum operating temperature of 90°C. Compact design with 27.9 mm overall length for space-efficient wiring. Widely used in electronic components, power connectors, and wire terminal applications.

This product is manufactured in the United States and comes new in condition, meeting the typical demanding requirements of industrial and commercial wiring environments. It is ideal for technicians, engineers, and electricians needing reliable insulated Ring Terminals for their projects.
