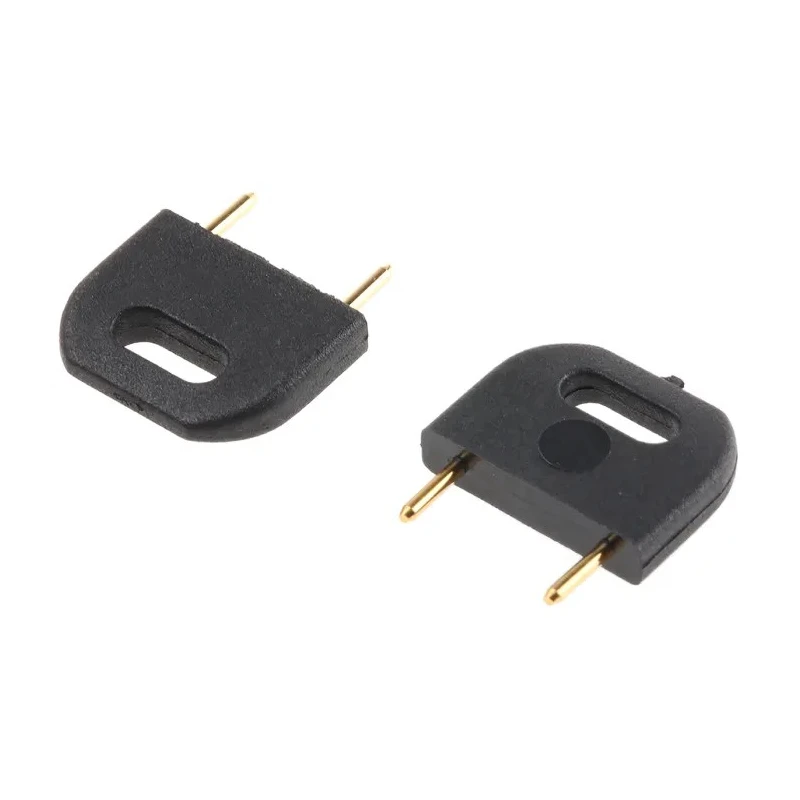

HARWIN D308 Shorting Link Straight Male Black Closed Top 2 Way 1 Row 10.16mm Pitch D3088-98
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Colour | Black |
| Orientation | Straight |
| Current | 10A |
| Length | 15.1mm |
| Model | D3088-98 |
| Depth | 3.2mm |
| Width | 12mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | D308 |
| Sub Type | Closed Top |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Connector Gender | Male |
| HARWIN Jumper Male Red Closed Top 10.16mm PitchBrand | HARWIN |
Key Features
- This shorting link features a polybutylene terephthalate (PBT) housing with UL94V-0 flammability rating.
- It supports a current rating of 10A suitable for PCB applications.
- The contact plating is gold, ensuring high conductivity and corrosion resistance.

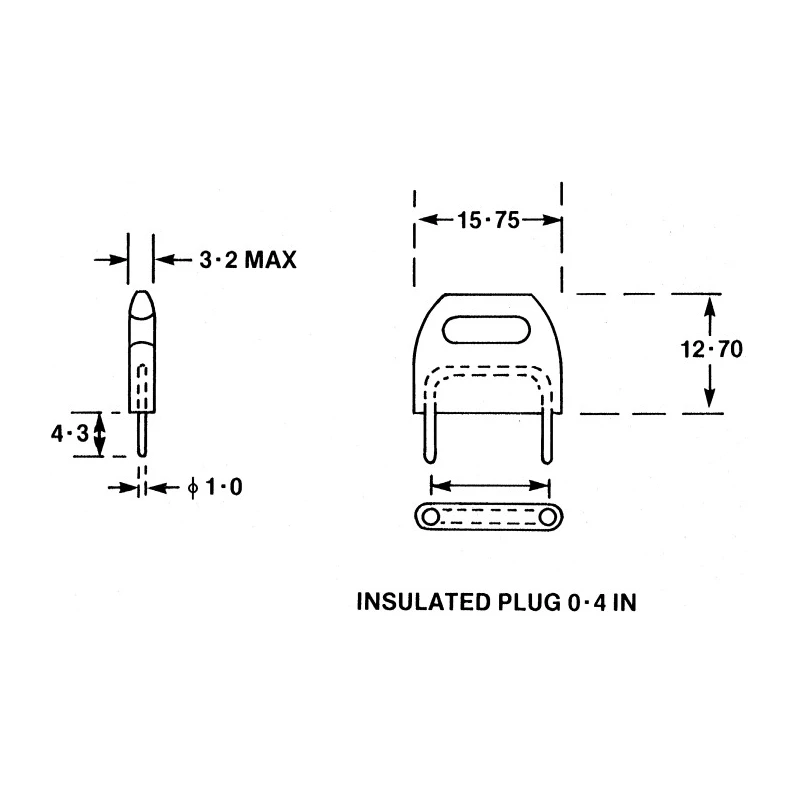

- The connector has dimensions of 15.1mm length, 12mm width, and 3.2mm depth.
- Designed for hardware programming and linking on PCBs with compatible sockets.
- The male connector gender and closed top design provide secure and reliable electrical connections.
- Part of the D308 series with a 1mm diameter shorting link plug.
Product Description
HARWIN D3088-98 shorting link is a precision-engineered electrical connector designed for PCB applications, featuring a straight male connector with a closed top in black color. It is part of the D308 series and utilizes a robust polybutylene terephthalate housing rated UL94V-0 for flame resistance, ensuring safety and durability in electrical circuits.
This component has a two-contact configuration arranged in a single row with a pitch of 10.16mm, enabling effective shorting in circuit boards. The connector supports a continuous current of 10A, making it suitable for powering moderate loads on PCBs and ensuring stable operations in industrial, electronic manufacturing, and repair environments.
The brass contacts are gold plated to provide superior conductivity and resist corrosion, enhancing the connector’s lifespan and reliability under various operating conditions. The dimensions of this product are compact, with a length of 15.1mm, width of 12mm, and depth of 3.2mm, allowing it to fit in dense PCB layouts.

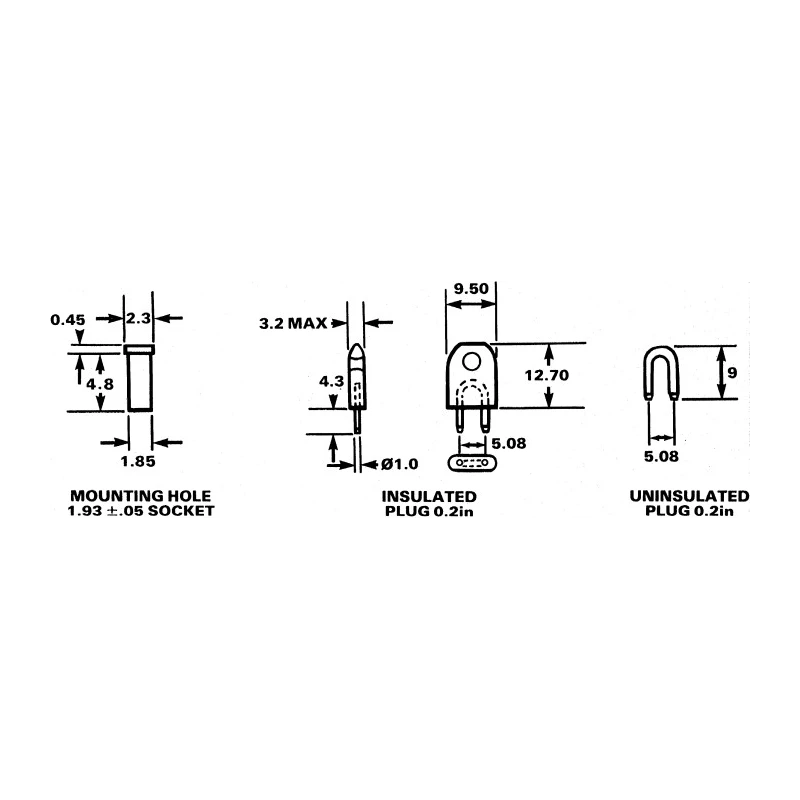

The D308 shorting links come in insulated and non-insulated versions; this model (D3088-98) is an insulated version with a closed top, designed to be used with PCB sockets for temporary or hardware programming links rather than permanent soldered connections. This allows flexible configuration during device assembly or testing phases.
This shorting link offers straightforward installation with the male connector oriented straight. Its robust housing material and gold plating ensure a long service life in industrial electronics and other commercial applications.
It is widely used in electronic component manufacturing, laboratory setups, prototyping, and repair scenarios. It enables short circuiting or bridging between pins easily, supporting hardware functionality testing and circuit configuration.
Explore more high-quality electronics connectors and components within EnvMart to enhance your electronic assembly and repair projects.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a continuous current rating of 10A, making it suitable for powering moderate loads on PCBs.
The HARWIN D3088-98 has dimensions of 15.1mm in length, 12mm in width, and 3.2mm in depth.
The housing of this connector is made from polybutylene terephthalate (PBT), which is rated UL94V-0 for flame resistance.
It features gold plating on the brass contacts, which provides high conductivity and corrosion resistance.
This model has two contacts arranged in a single row configuration.
The pitch of this shorting link is 10.16mm, which enables effective shorting in circuit boards.
The connector is designed with a straight orientation, allowing for straightforward installation.
It is widely used in electronic component manufacturing, laboratory setups, prototyping, and repair scenarios.

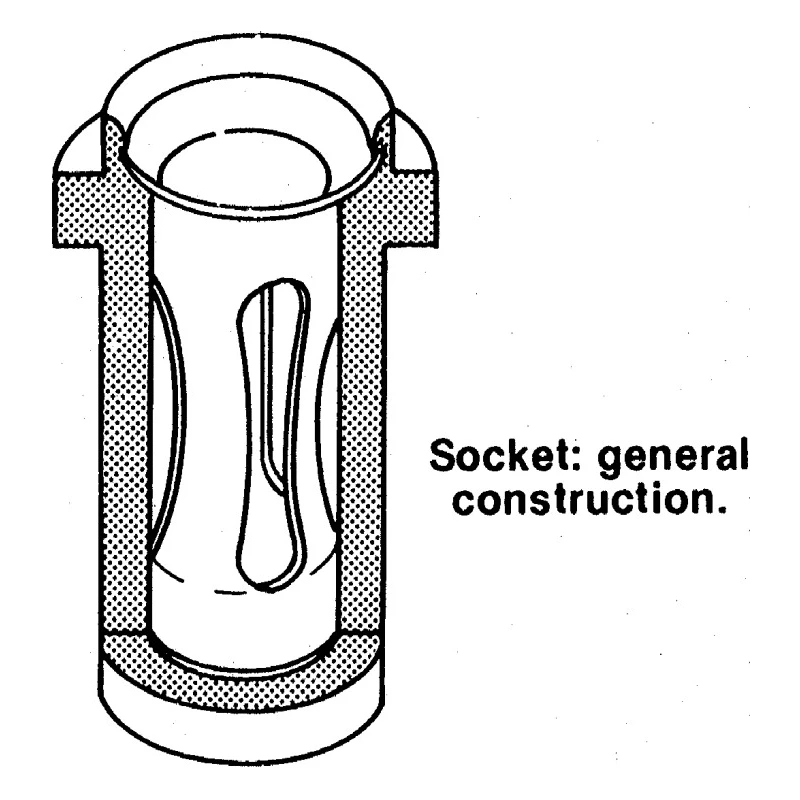

Yes, this model is an insulated version with a closed top, designed for use with PCB sockets.
The connector gender of this model is male, providing secure electrical connections.
This product is manufactured in India.
It is part of the D308 series of connectors, which are designed for PCB applications.
