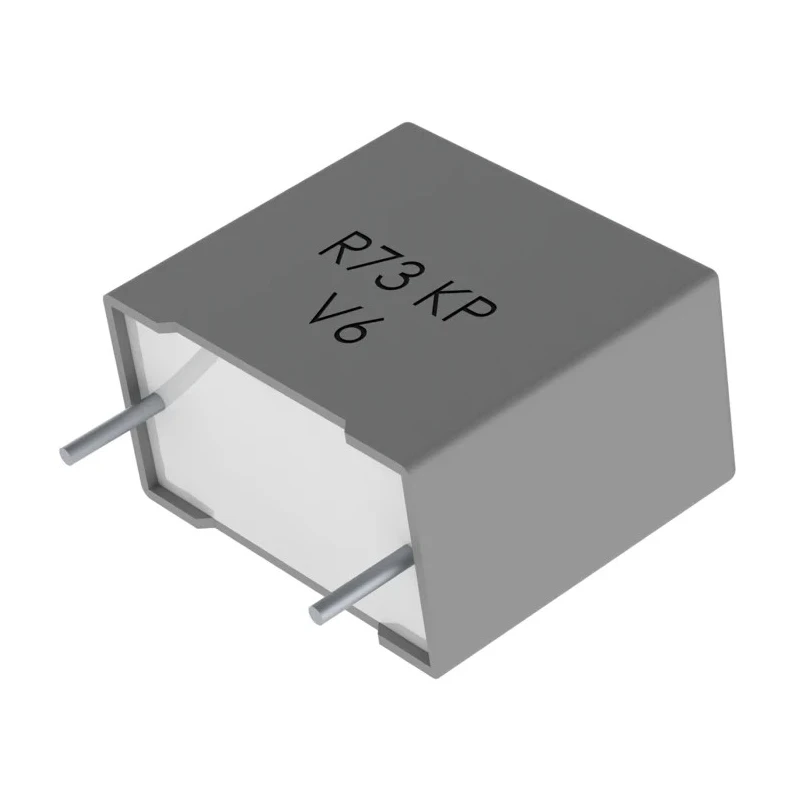

KEMET R73 Film Capacitor 22 nF ±5% 630 V DC 300 V AC Through Hole R73PI2220SE00J

KEMET R73PI2220SE00J Film Capacitor is designed for high frequency and high performance pulse handling applications, making it ideal for tuned circuits, timing networks, and filter networks. This through hole film capacitor features a capacitance of 22 nF with a tolerance of ±5% and is rated for 630 V DC and 300 V AC, ensuring reliable operation in demanding electronic circuits.

Encased in a plastic package meeting UL94V-0 self-extinguishing standards, the capacitor operates within a wide temperature range from -55°C to 105°C, supporting automotive and industrial grade use conforming to the AEC-Q200 standard. Its lead pitch is 15 mm with a lead length of 4 mm, facilitating easy PCB mounting and mechanical stability.

This capacitor measures 18 mm in length, 7.5 mm in width, and 13.5 mm in height, with a pin count of 2 and pin diameter of 0.8 mm. It meets RoHS and IEC 60286-2 certifications, supporting environmentally compliant production and European international standards.

As a part of the R73 series, it is commonly applied in electronic and power circuits requiring precise capacitance and stable AC/DC voltage handling capabilities. It is supplied in a bag packaging suitable for handling efficiency in assembly lines.

Rated voltage: 630 V DC, 300 V AC. Capacitance: 22 nF ±5%. Through hole mount with 15 mm lead pitch. Temperature range: -55°C to 105°C. Plastic encapsulation with UL94V-0 rating. Compliance with automotive AEC-Q200 and IEC 60286-2 standards.

Compact size: 18x7.5x13.5 mm. Pin count: 2; lead diameter 0.8 mm.

This KEMET film capacitor is suitable for a wide range of industrial, automotive, and electronic manufacturing applications. Explore advanced Film Capacitor selections and components at EnvMart for your design and production needs.
