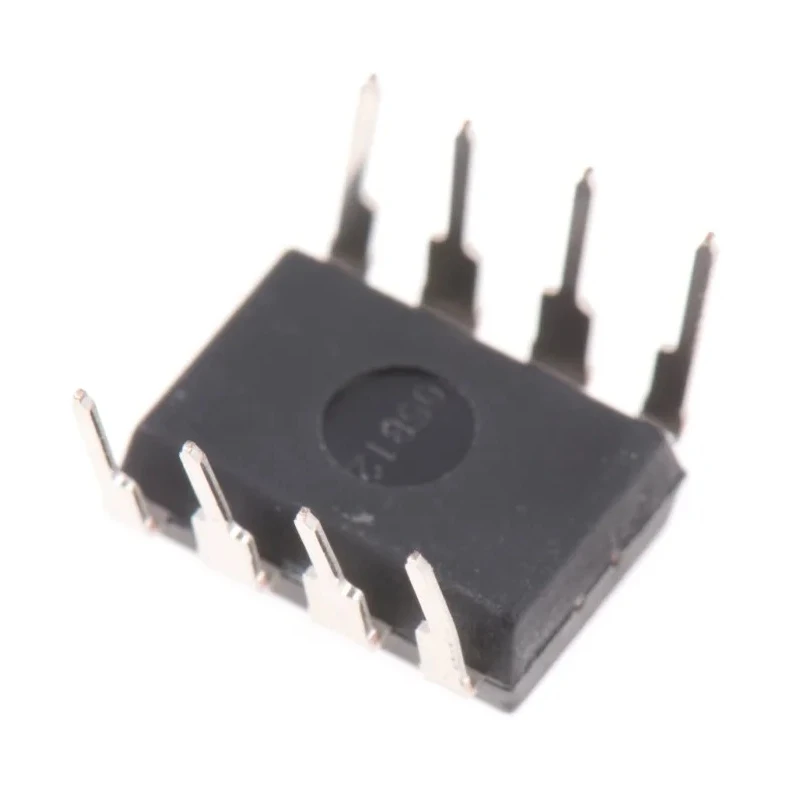

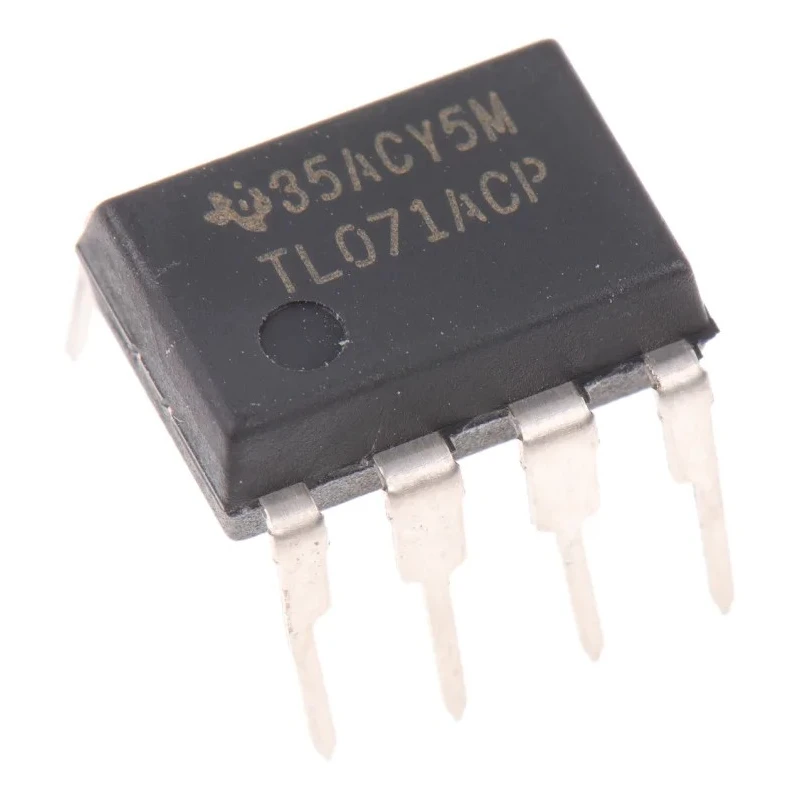

Texas Instruments Operational Amplifier 3 MHz 8-Pin 15V PDIP TL071ACP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TL071ACP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL071 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±5 nA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 13V/μs |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- High gain bandwidth product of 3 MHz for efficient amplification.
- 8-pin dual in-line package (PDIP) suitable for through-hole mounting.
- Operates with supply voltages from 5 to 15 volts.
- Low input bias current and input offset voltage for precision applications.
- High slew rate of 13 V/μs for fast signal processing.
- Low noise level of 18 nV/√Hz at 1 kHz ensuring clear signals.
- Operating temperature range from 0°C to 70°C for reliable performance.
- JFET input stage and low total harmonic distortion of 0.003%.
Product Description
Texas Instruments TL071ACP is a high performance JFET input operational amplifier, part of the TL070 and TL080 families. It features a gain bandwidth of 3 MHz and is supplied in an 8-pin PDIP package designed for through-hole mounting. This amplifier operates on a wide supply voltage range of 5 V to 15 V, making it versatile for various electronic applications.
The TL071ACP offers low input bias and offset currents, essential for precision signal processing tasks. Its high slew rate of 13 V/μs combined with low noise levels of 18 nV/√Hz at 1 kHz ensure high fidelity and fast response in audio and other analog circuits. It also has a low total harmonic distortion of 0.003%, maintaining signal integrity in demanding environments.
The device is suitable for industrial, laboratory, and consumer electronics applications, including audio signal amplification, sensor interfacing, and instrumentation. The compact size facilitates easy integration into circuit boards requiring reliable and accurate amplification.
High gain bandwidth product of 3 MHz ensures effective signal amplification. Packaged in an 8-pin PDIP for easy through-hole mounting in various circuit designs. Wide supply voltage range from 5 V to 15 V supports flexible power configurations.
Low input bias current and offset voltage enhance precision in measurement circuits. High slew rate of 13 V/μs allows fast response to input signal changes. Low noise figure supports high quality audio and signal processing tasks.
Operates reliably in temperatures from 0°C to 70°C for diverse environments. Compact dimensions enable space-saving PCB designs. Low total harmonic distortion maintains signal fidelity throughout amplification.
This Operational Amplifier is ideal for use in industrial machines, laboratory instruments, audio equipment, and other electronic systems requiring low noise, high speed, and precision amplification. It is a reliable and proven choice for engineers designing analog electronic circuits and systems.
Explore our broad range of semiconductor amplifiers at EnvMart to find compatible components for your next project or upgrade.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL071ACP has a gain bandwidth product of 3 MHz, which ensures effective signal amplification in various applications.
This model operates with a supply voltage range from 5 V to 15 V, providing flexibility for different electronic applications.
The TL071ACP has dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The input offset voltage for the TL071ACP is ±5 mV, which is crucial for precision applications.
This operational amplifier features a high slew rate of 13 V/μs, allowing for fast response to input signal changes.
The TL071ACP is packaged in an 8-pin PDIP (Plastic Dual In-line Package) suitable for through-hole mounting.
The noise level of the TL071ACP is 18 nV/√Hz at 1 kHz, which supports high quality audio and signal processing tasks.
The total harmonic distortion for this model is 0.003%, which helps maintain signal integrity during amplification.
This operational amplifier operates reliably within a temperature range of 0°C to 70°C.
The TL071ACP is a single-channel operational amplifier, designed for various amplification tasks.
The input bias current for the TL071ACP is ±5 nA, which is beneficial for precision signal processing.
The TL071ACP is suitable for applications in industrial machines, laboratory instruments, audio equipment, and sensor interfacing.
