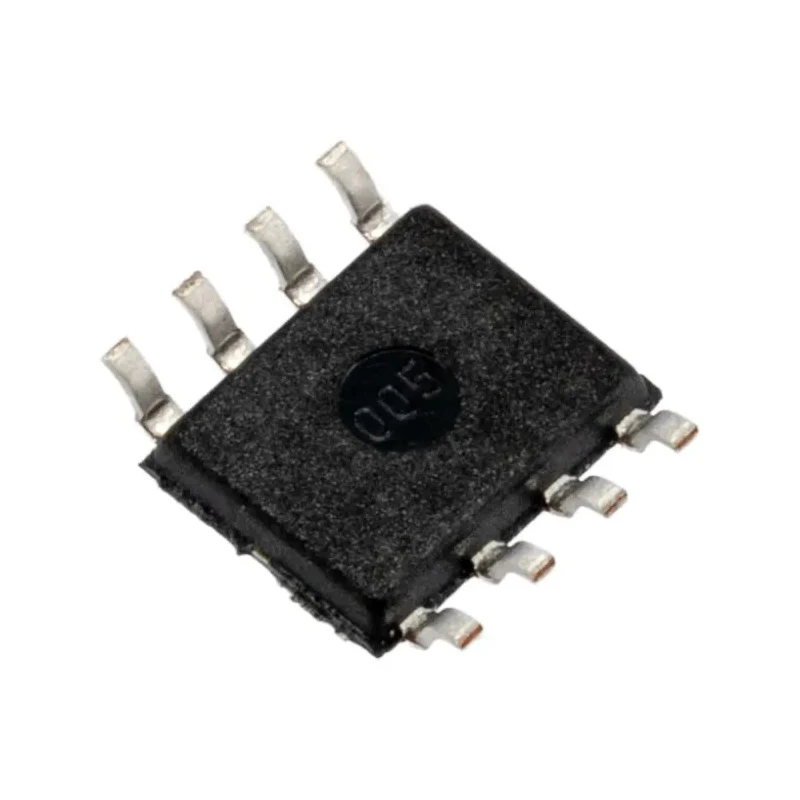

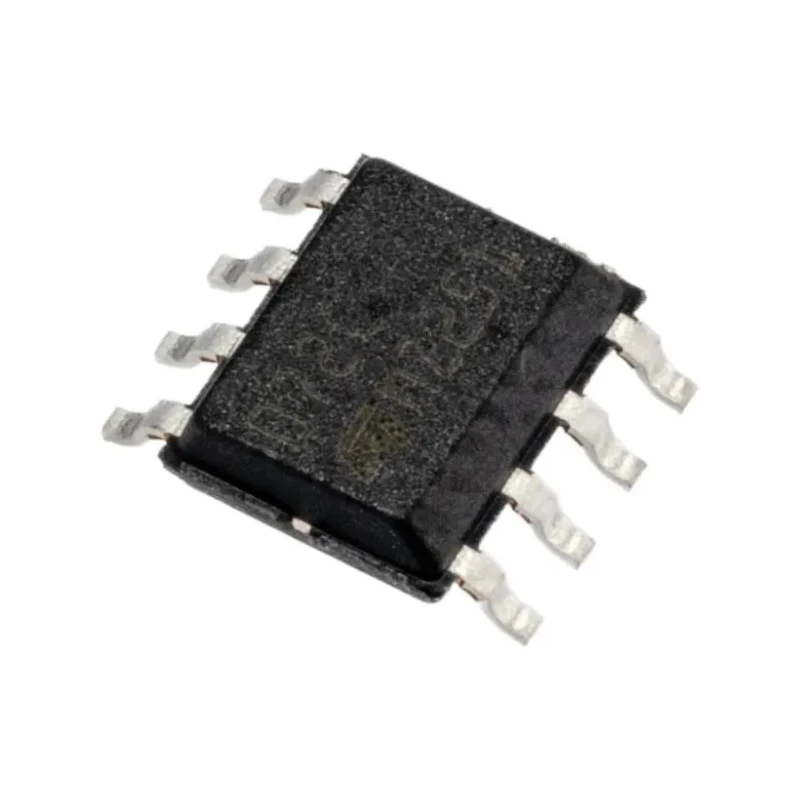

STMicroelectronics Operational Amplifier 4 MHz Gain Bandwidth, 8-Pin SOIC, Surface Mount TL072CDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TL072CDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TL072 |
| Output Current | 60mA |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 2 |
| Low Harmonic Distortion | 0.01% (TL07x) |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 16V/μs |
| Input Offset Current | 10 nA |
| High Slew Rate | 16 V/μs (TL07x, TL08x), 3.5 V/μs (TL06x) |
Key Features
- High input impedance JFET input stage minimizes input bias current.
- Slew rate of 16 V/μs provides fast signal response.
- Wide supply voltage range from 6V to 36V enables flexible power configurations.
- Low input bias current of 20 nA suits sensitive circuit designs.
- Compact SOIC package with dimensions 4.9mm length, 3.9mm width, and 1.25mm height.
- Dual-channel amplifier with 8-pin configuration for versatile circuit integration.
- Low harmonic distortion of 0.01% ensures signal integrity.
- Thermally robust operation from 0°C to 70°C for industrial applications.
Product Description
STMicroelectronics TL072CDT operational amplifier is a precision dual-channel amplifier designed with a high input impedance JFET input stage, offering low input bias and offset currents for reliable signal processing. With a gain bandwidth product of 4 MHz and a high slew rate of 16 V/μs, this operational amplifier delivers fast and accurate response suited for a wide range of analog applications.
The device operates on a supply voltage range from 6V up to 36V, allowing compatibility with various power systems. Packaged in an 8-pin SOIC surface mount form factor measuring 4.9mm in length, 3.9mm width, and 1.25mm height, it supports compact circuit board designs while providing robust performance.
Additional features include a low input bias current of 20 nA, a maximum output current of 60 mA, low harmonic distortion of 0.01%, and internal frequency compensation that ensures stable operation across industrial, automotive, laboratory instrumentation, and consumer electronic use cases. It is RoHS compliant and certified to meet the automotive AEC-Q100 standard, emphasizing reliability for harsh operational environments.
High input impedance JFET input stage minimizes input bias current. Slew rate of 16 V/μs provides fast signal response. Wide supply voltage range from 6V to 36V enables flexible power configurations. Low input bias current of 20 nA suits sensitive circuit designs.
Compact SOIC package with dimensions 4.9mm length, 3.9mm width, and 1.25mm height. Dual-channel amplifier with 8-pin configuration for versatile circuit integration. Low harmonic distortion of 0.01% ensures signal integrity.
Thermally robust operation from 0°C to 70°C for industrial applications. RoHS compliant and meets AEC-Q100 automotive standard requirements.
This operational amplifier is ideal for industrial machines, test and measurement equipment, consumer electronics, automotive electronics, and other performance-critical analog systems. STMicroelectronics provides reliable engineering solutions fostering innovation and precision.
Explore the extensive category of Operational Amplifiers at EnvMart for comprehensive product options and technical support tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 4 MHz.
The input bias current for the TL072CDT is 20 nA, making it suitable for sensitive circuit designs.
The maximum supply voltage for this operational amplifier is 36V.
This model can provide a maximum output current of 60 mA.
The operational amplifier is packaged in an 8-pin SOIC with dimensions of 4.9mm in length, 3.9mm in width, and 1.25mm in height.
This operational amplifier operates within a temperature range of 0°C to 70°C.
The slew rate for this model is 16 V/μs, allowing for fast signal response.
Yes, the TL072CDT is RoHS compliant, ensuring it meets environmental standards.
This operational amplifier meets the AEC-Q100 automotive standard, indicating its reliability for automotive applications.
The TL072CDT features a dual-channel configuration, making it versatile for various circuit integrations.
The low harmonic distortion for the TL072CDT is 0.01%, which helps ensure signal integrity.
The input offset voltage for this operational amplifier is 10 mV.
