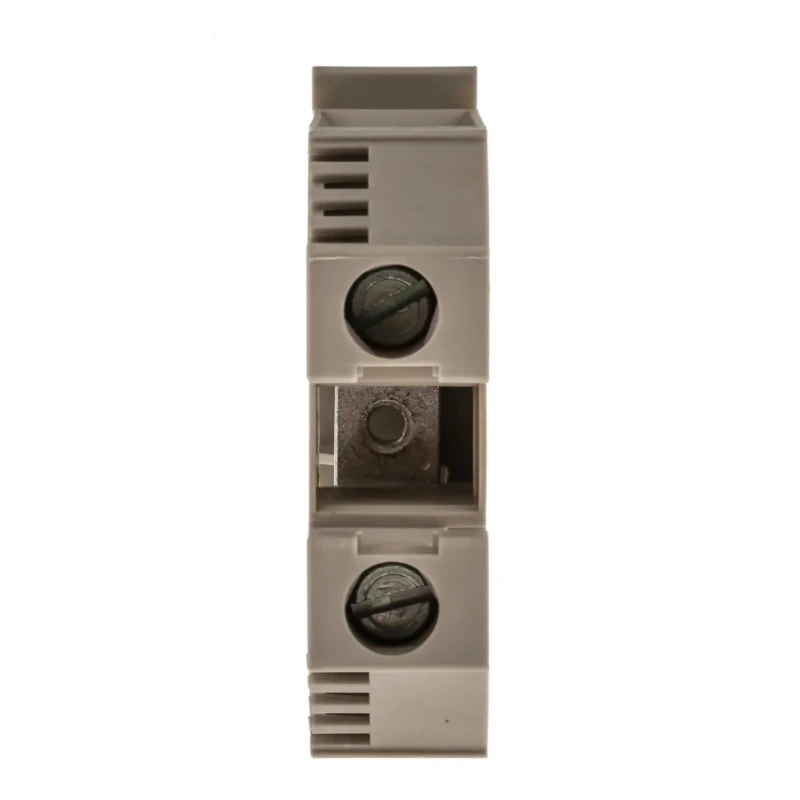

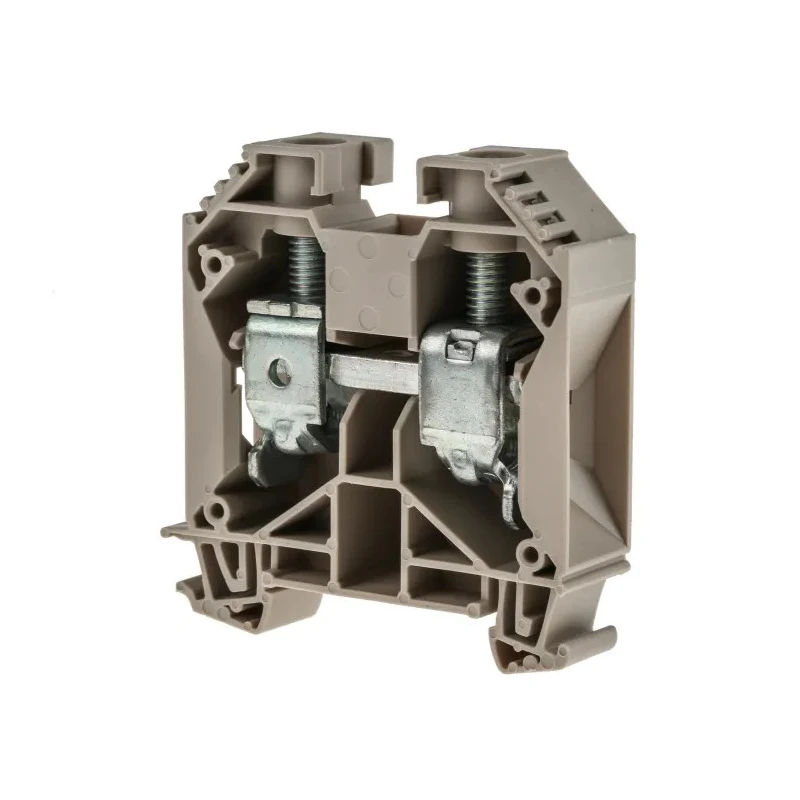

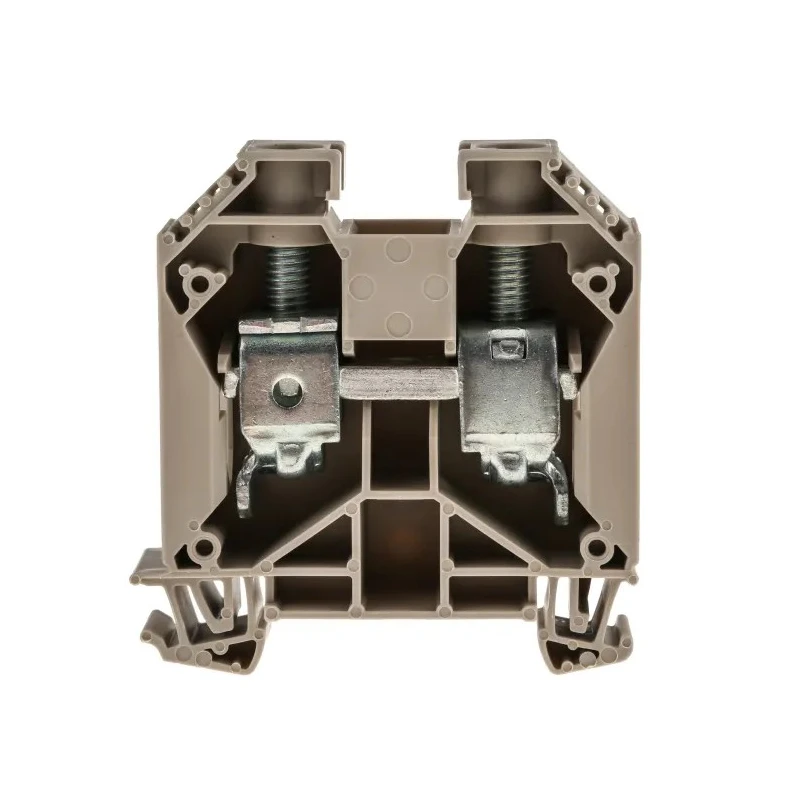

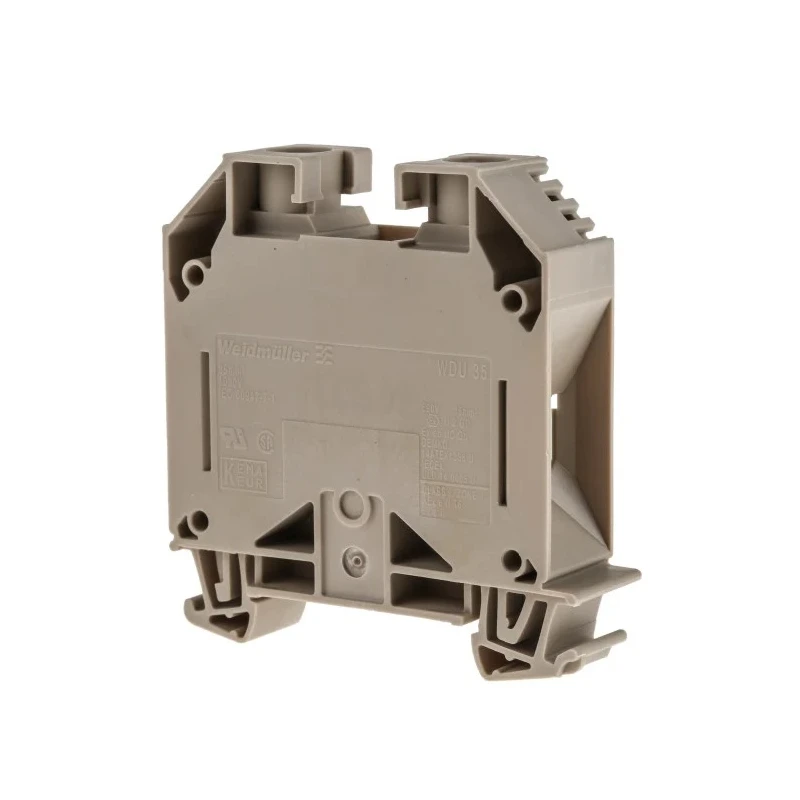

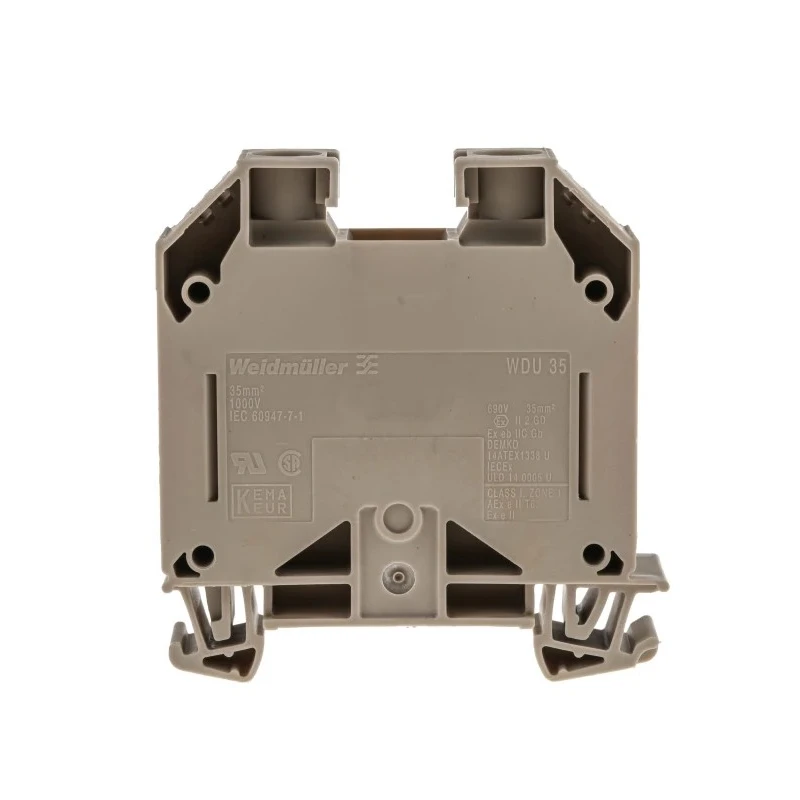

Weidmüller WDU Series Feed Through Terminal Block Brown, 35mm², 1-Level, Screw Termination, ATEX Certified 1020500000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller WDU Series Feed Through Terminal Block Brown, 35mm², 1-Level, Screw Termination, ATEX Certified 1020500000

Name: Weidmüller WDU Series Feed Through Terminal Block Brown, 35mm², 1-Level, Screw Termination, ATEX Certified 1020500000
Brand: Weidmuller
SKU: 137165
Price: 9.51 USD
Availability: InStock



Category Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	India
Voltage	1kV
Brand	Weidmüller
Colour	Brown
Series	WDU
Termination Type	Screw
Maximum Operating Temperature	120°C
Number of Levels	1
Minimum Operating Temperature	-50°C
Hazardous Area Certification	ATEX
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	2AWG
Cable CSA	35mm²
Terminal Block Current	125A
RS PRO DIN Rail Terminal Block Beige, 3.5mm², 1-Level, ScrewBrand	RS PRO

Key Features

Feed-through terminal block designed for quick and reliable conductor connections.
Supports wire sizes from 12 AWG to 2 AWG for versatile compatibility.
Compact design measuring 60 mm height, 16 mm width, and 62.5 mm depth.
Wide operating temperature range from -50°C to 120°C for harsh environments.
ATEX certification ensures safe use in hazardous areas.
Screw termination type prevents accidental disconnection during vibration or movement.
1-level block suitable for industrial manufacturing and renewable energy systems.

Product Description

Weidmüller 1020500000 WDU Series Feed Through Terminal Block is a high-quality electrical component designed for safe and efficient conductor connections in demanding industrial applications. This brown-colored terminal block is rated for 125A and supports wire cable sizes up to 35mm², accommodating conductors from 12 AWG to 2 AWG, providing flexible wiring options.

The screw termination system secures wires firmly, reducing the risk of accidental disconnections during vibrations or mechanical shocks. Its compact physical dimensions of 60 mm (height) x 16 mm (width) x 62.5 mm (depth) allow for installation in densely packed control cabinets. Designed to operate reliably in extreme temperatures ranging from -50°C to 120°C, it is suitable for use in harsh and industrial environments.

The block's one-level design facilitates easy integration into existing electrical systems, especially in manufacturing plants, packing plants, and renewable energy installations. The unit snaps onto standard DIN rails, streamlining installation and maintenance processes. Additionally, the ATEX certification approves its use in hazardous areas, enhancing electrical safety compliance.

Feed-through design allows for rapid conductor connections. Compatible with wire sizes from 12 AWG to 2 AWG and cable cross-sections up to 35mm². Robust screw terminals ensure secure wiring. Compact dimensions for optimized space utilization.

Wide operating temperature range suitable for tough industrial conditions. Certified ATEX for hazardous area safety. Ideal for manufacturing, packing, and renewable energy sectors.

This Weidmüller terminal block offers reliable performance in demanding industrial, manufacturing, and energy systems requiring secure electrical connections. Its robust design, versatile wire compatibility, and certification make it a smart choice for electrical engineers and system integrators seeking safety and efficiency.
